Page 64
XP17
Y1
O
R
W1
G
D
R
Y1
L
C
C
B
Y2
Y2
i−
W
O
i+
DS
L
T
T
W2
H
H
O
C
L
Y2
DS
DH
G
R
Y1
W2
W1
1
2
3
4
Furnace Control
ComfortSense[ 7000 Thermostats
Catalog # Y0349 or Y2081
One−Stage
Heat Pump Control
On−board link
Low voltage thermostat
wiring
1. Thermostat T terminals are used for outdoor sensor input. Use for thermostat's outdoor temperature display (optional).
2. R to L connection is required for this model when using the ComfortSense
®
7000 - catalog number Y0349 only. Resistor Kit (catalog number
47W97) required and ordered separately.
3. Cut on-board link W951 (clippable wire) from R-O HEAT PUMP for heat pump applications.
4. Cut on−board link (clippable wire) DS−R for Humiditrol
®
or Harmony III applications. This will slow the indoor blower motor to the lowest speed
setting. See furnace installation instruction or Product Specification bulletin for lowest fan speed information.
NOTE - For defrost temper with furnace, the optional 67M41 temper kit would be wired between W of from the heat pump control (A175) to the W1
of the furnace control. The kit allows for the furnace to cycle on and off during a defrost. It protects the compressor from high refrigeration pressures
during defrost.

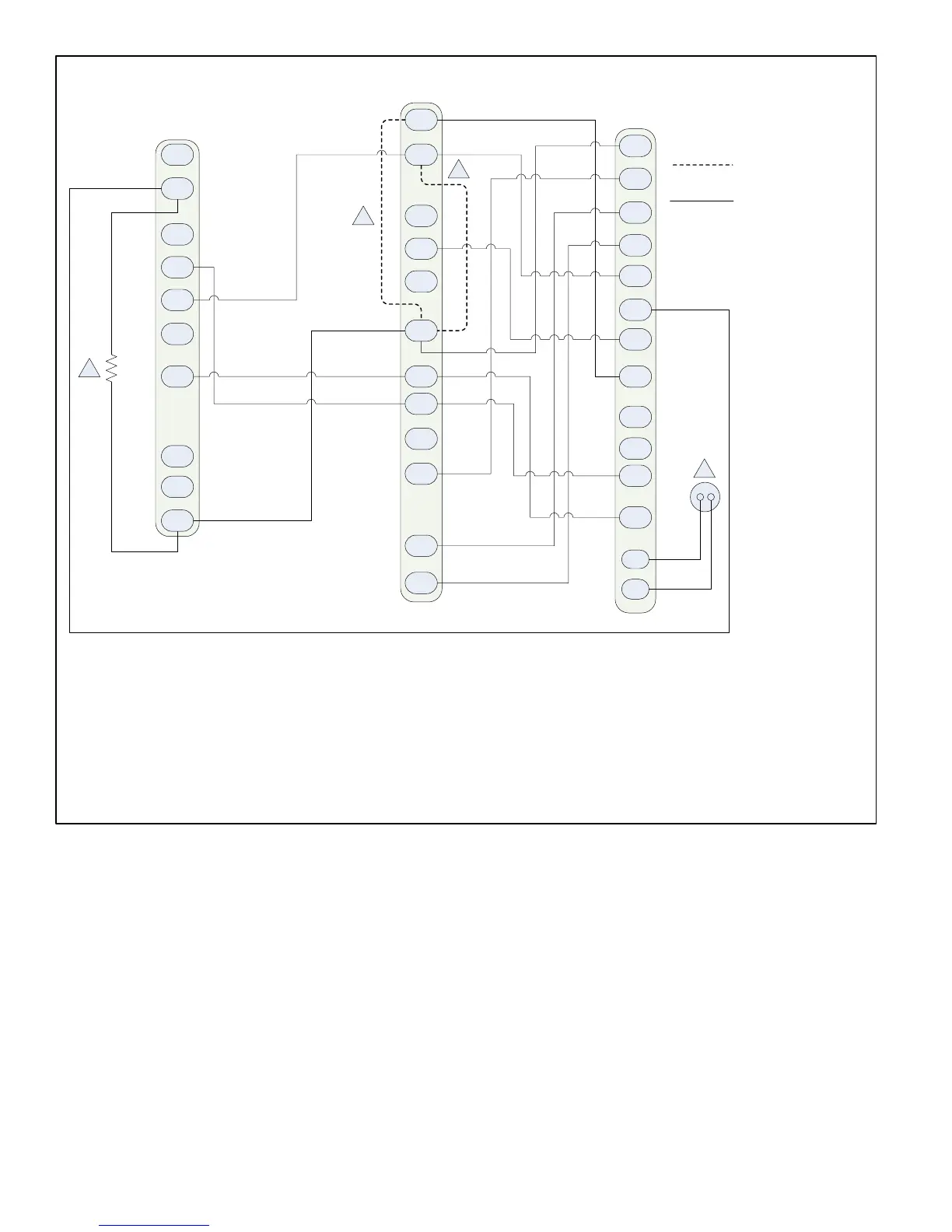

Figure 39. ComfortSense
®
7000 Series Thermostat — Furnace/One-Stage Heat Pump
