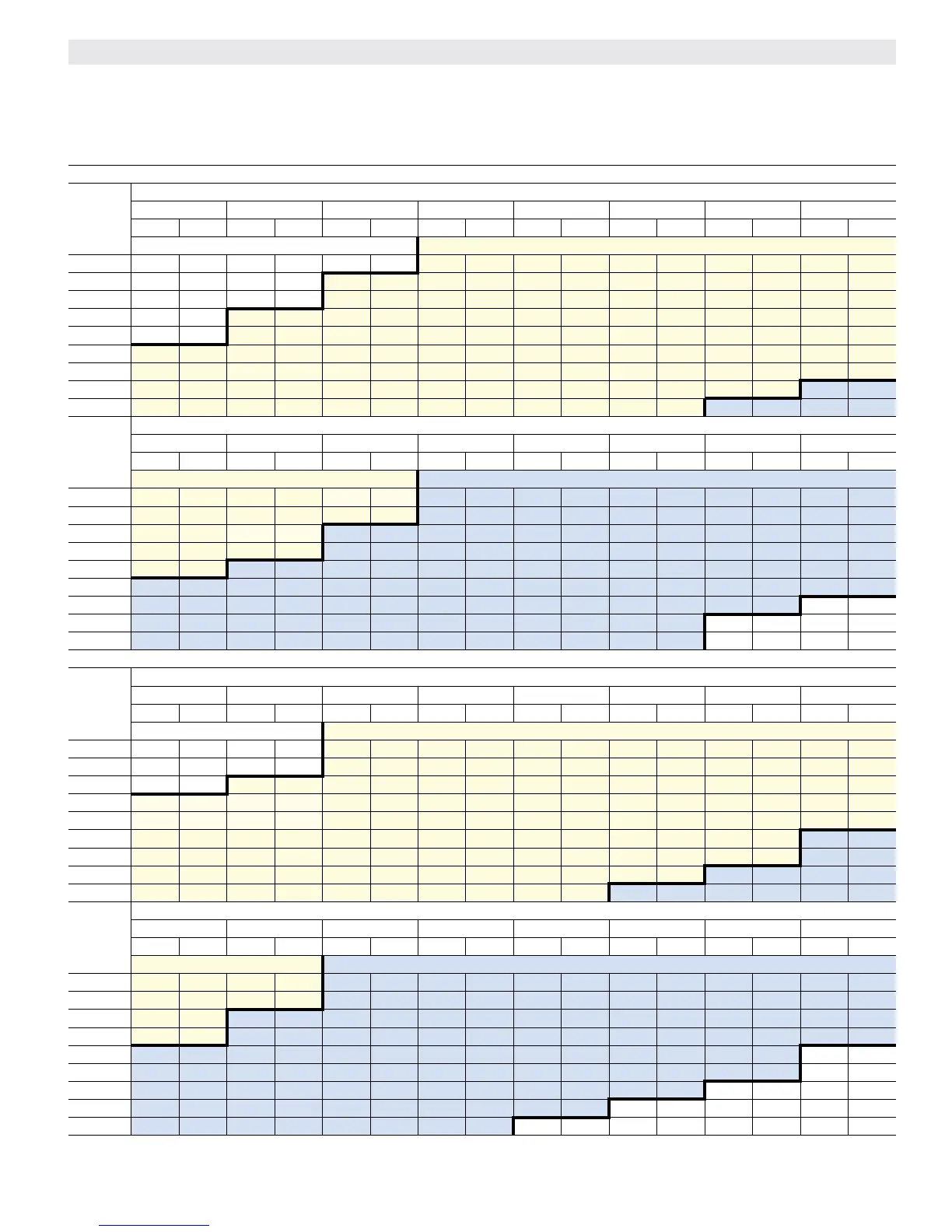

BLOWER DATA - BELT DRIVE - ZHA048
BLOWER TABLE INCLUDES RESISTANCE FOR BASE UNIT ONLY WITH DRY INDOOR COIL AND AIR FILTERS IN PLACE.
FOR ALL UNITS ADD:
1 - Any factory installed options air resistance (heat section, economizer, wet coil, etc.).
2 - Any eld installed accessories air resistance (duct resistance, diffuser, etc.).
See page 15 for blower motors and drives and wet coil and options/accessory air resistance data.
DOWNFLOW
Air
Volume
cfm
External Static - in. w.g.
0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Furnished Kit ZA02
1200 641 0.23 711 0.25 783 0.27 852 0.29 917 0.32 975 0.35 1027 0.39 1074 0.42
1300 673 0.25 744 0.28 815 0.30 882 0.33 944 0.36 1000 0.40 1050 0.44 1096 0.48
1400 709 0.29 779 0.32 849 0.34 914 0.37 973 0.41 1026 0.45 1074 0.49 1118 0.53
1500 747 0.33 816 0.36 883 0.39 945 0.42 1001 0.46 1052 0.51 1098 0.55 1141 0.59
1600 787 0.38 854 0.41 918 0.44 976 0.48 1030 0.52 1078 0.56 1123 0.61 1164 0.66
1700 827 0.43 892 0.46 952 0.49 1007 0.53 1058 0.58 1105 0.63 1148 0.68 1189 0.73
1800 868 0.48 929 0.52 986 0.55 1038 0.59 1087 0.64 1132 0.69 1174 0.75 1214 0.80
1900 907 0.54 966 0.58 1019 0.62 1069 0.66 1116 0.71 1160 0.77 1200 0.82 1240 0.88
2000 946 0.60 1001 0.65 1053 0.69 1101 0.74 1146 0.79 1188 0.85 1228 0.91 1267 0.98
Air
Volume
cfm
External Static - in. w.g.
0.90 1.00 1.10 1.20 1.30 1.40 1.50 1.60
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Kit ZA02 Kit ZA05
1200 1119 0.45 1163 0.49 1206 0.52 1247 0.56 1287 0.60 1326 0.64 1364 0.68 1402 0.72
1300 1139 0.51 1182 0.55 1224 0.58 1265 0.62 1304 0.66 1342 0.71 1379 0.75 1416 0.79
1400 1160 0.57 1202 0.61 1243 0.65 1283 0.69 1322 0.73 1359 0.78 1396 0.82 1432 0.87
1500 1182 0.64 1223 0.68 1263 0.72 1303 0.76 1341 0.81 1378 0.85 1414 0.90 1449 0.94
1600 1205 0.70 1245 0.75 1284 0.79 1323 0.84 1361 0.88 1397 0.93 1432 0.98 1467 1.03
1700 1228 0.78 1268 0.82 1307 0.87 1345 0.92 1382 0.97 1417 1.02 1452 1.07 1486 1.11
1800 1253 0.85 1292 0.91 1331 0.96 1368 1.01 1404 1.06 1439 1.11 1473 1.16 1506 1.21
1900 1279 0.94 1317 1.00 1355 1.05 1392 1.10 1427 1.16 1461 1.21 1494 1.26 1527 1.31
2000 1305 1.04 1343 1.10 1380 1.15 1416 1.21 1450 1.26 1484 1.32 1516 1.37 1549 1.42
HORIZONTAL
Air
Volume
cfm
External Static - in. w.g.
0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80
RPM BHP RPM BHP RPM BHP RPM BHP
RPM BHP RPM BHP RPM BHP RPM BHP
Field Furnished Kit ZA02
1200 687 0.23 757 0.26 826 0.29 893 0.32 955 0.35 1008 0.39 1054 0.42 1095 0.46
1300 730 0.27 798 0.30 864 0.33 926 0.37 982 0.40 1030 0.44 1073 0.47 1116 0.51
1400
775 0.31 840 0.34 902 0.38 959 0.42 1009 0.46 1054 0.50 1096 0.53 1140 0.56
1500 820 0.36 881 0.40 939 0.44 993 0.49 1039 0.53 1082 0.56 1124 0.59 1168 0.62
1600 864 0.42 921 0.46 976 0.51 1027 0.56 1072 0.60 1113 0.63 1155 0.66 1198 0.69
1700 907 0.48 961 0.53 1013 0.58 1061 0.63 1105 0.67 1146 0.70 1187 0.73 1230 0.77
1800 948 0.56 999 0.61 1049 0.66 1096 0.71 1139 0.75 1180 0.78 1221 0.82 1262 0.86
1900 987 0.64 1037 0.69 1086 0.74 1132 0.79 1174 0.83 1214 0.86 1255 0.90 1295 0.95
2000 1028 0.73 1076 0.78 1123 0.83 1168 0.87 1210 0.91 1250 0.96 1289 1.00 1328 1.06
Air
Volume
cfm
External Static - in. w.g.
0.90 1.00 1.10 1.20 1.30 1.40 1.50 1.60
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Kit ZA02 Kit ZA05
1200 1139 0.49 1187 0.52 1234 0.54 1276 0.58 1314 0.62 1350 0.66 1385 0.71 1421 0.75
1300 1161 0.54 1208 0.57 1254 0.60 1295 0.64 1332 0.69 1366 0.73 1401 0.78 1436 0.83
1400 1185 0.59 1232 0.63 1276 0.67 1315 0.71 1351 0.76 1384 0.81 1419 0.86 1454 0.90
1500 1212 0.66 1257 0.70 1299 0.74 1337 0.79 1371 0.84 1404 0.89 1438 0.94 1473 0.99
1600 1242 0.73 1284 0.77 1324 0.82 1360 0.88 1394 0.93 1426 0.99 1460 1.04 1495 1.08
1700 1272 0.81 1312 0.86 1350 0.92 1385 0.98 1418 1.04 1451 1.09 1485 1.14 1519 1.19
1800 1302 0.90 1341 0.96 1377 1.02 1411 1.08 1444 1.15 1477 1.20 1510 1.25 1544 1.30
1900 1334 1.01 1371 1.07 1406 1.13 1439 1.20 1471 1.26 1504 1.32 1537 1.37 1571 1.41
2000 1365 1.12 1401 1.19 1435 1.25 1468 1.32 1500 1.38 1532 1.44 1565 1.49 1598 1.53
