Lennox ZHA036 User Manual

Page 9

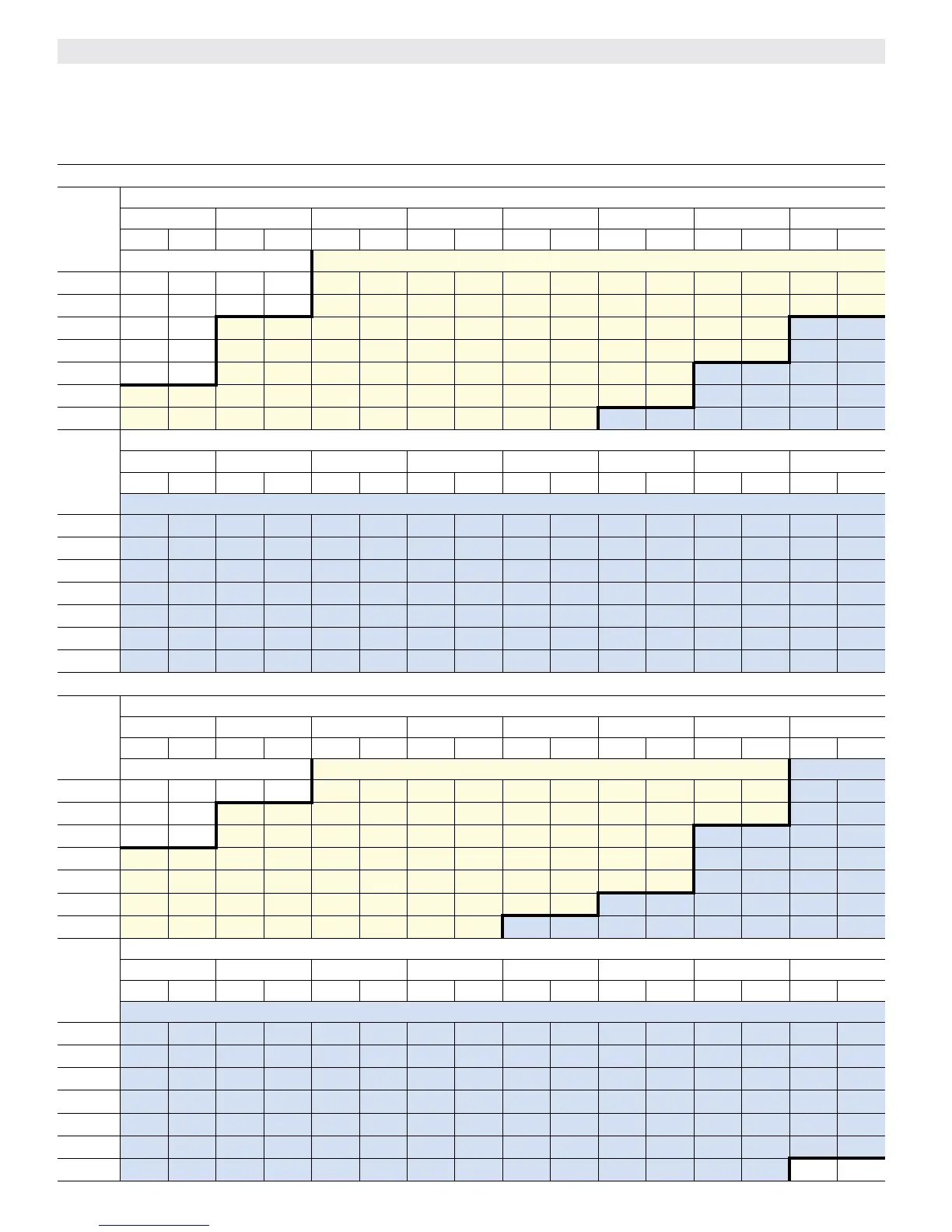

BLOWER DATA - BELT DRIVE - ZHA036
BLOWER TABLE INCLUDES RESISTANCE FOR BASE UNIT ONLY WITH DRY INDOOR COIL AND AIR FILTERS IN PLACE.
FOR ALL UNITS ADD:
1 - Any factory installed options air resistance (heat section, economizer, wet coil, etc.).
2 - Any eld installed accessories air resistance (duct resistance, diffuser, etc.).
See page 15 for blower motors and drives and wet coil and options/accessory air resistance data.
DOWNFLOW
Air
Volume
cfm
External Static - in. w.g.
0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Furnished Kit ZA01
900 562 0.16 629 0.18 699 0.19 771 0.2 840 0.22 904 0.24 962 0.26 1015 0.29
1000 586 0.18 654 0.2 725 0.21 796 0.23 864 0.25 927 0.27 983 0.3 1034 0.33
1100 612 0.2 681 0.22 752 0.24 823 0.26 890 0.28 950 0.31 1004 0.34 1054 0.37
1200 641 0.23 711 0.25 783 0.27 852 0.29 917 0.32 975 0.35 1027 0.39 1074 0.42
1300 673 0.25 744 0.28 815 0.3 882 0.33 944 0.36 1000 0.4 1050 0.44 1096 0.48
1400 709 0.29 779 0.32 849 0.34 914 0.37 973 0.41 1026 0.45 1074 0.49 1118 0.53
1500 747 0.33 816 0.36 883 0.39 945 0.42 1001 0.46 1052 0.51 1098 0.55 1141 0.59
Air
Volume
cfm
External Static - in. w.g.
0.90 1.00 1.10 1.20 1.30 1.40 1.50 1.60
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Kit ZA04
900 1065 0.32 1112 0.35 1158 0.38 1202 0.41 1243 0.44 1284 0.48 1323 0.52 1364 0.55
1000 1082 0.36 1128 0.39 1173 0.42 1216 0.45 1257 0.49 1297 0.53 1336 0.57 1375 0.6
1100 1100 0.4 1145 0.44 1189 0.47 1231 0.51 1272 0.54 1311 0.58 1349 0.62 1388 0.66
1200 1119 0.45 1163 0.49 1206 0.52 1247 0.56 1287 0.6 1326 0.64 1364 0.68 1402 0.72
1300 1139 0.51 1182 0.55 1224 0.58 1265 0.62 1304 0.66 1342 0.71 1379 0.75 1416 0.79
1400 1160 0.57 1202 0.61 1243 0.65 1283 0.69 1322 0.73 1359 0.78 1396 0.82 1432 0.87
1500 1182 0.64 1223 0.68 1263 0.72 1303 0.76 1341 0.81 1378 0.85 1414 0.9 1449 0.94
HORIZONTAL
Air
Volume
cfm
External Static - in. w.g.
0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Furnished Kit ZA01 Kit ZA04
900 580 0.14 649 0.17 721 0.19 794 0.22 868 0.24 938 0.27 998 0.3 1045 0.33
1000 612 0.17 681 0.19 752 0.22 825 0.25 897 0.27 963 0.3 1017 0.33 1061 0.37
1100 647 0.2 717 0.23 788 0.26 858 0.28 926 0.31 986 0.34 1036 0.38 1077 0.41
1200 687 0.23 757 0.26 826 0.29 893 0.32 955 0.35 1008 0.39 1054 0.42 1095 0.46
1300 730 0.27 798 0.3 864 0.33 926 0.37 982 0.4 1030 0.44 1073 0.47 1116 0.51
1400
775 0.31 840 0.34 902 0.38 959 0.42 1009 0.46 1054 0.5 1096 0.53 1140 0.56
1500 820 0.36 881 0.4 939 0.44 993 0.49 1039 0.53 1082 0.56 1124 0.59 1168 0.62
Air
Volume
cfm
External Static - in. w.g.
0.90 1.00 1.10 1.20 1.30 1.40 1.50 1.60
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Kit ZA04
900 1091 0.36 1140 0.38 1188 0.4 1232 0.43 1272 0.46 1309 0.49 1346 0.53 1383 0.57
1000 1105 0.4 1154 0.42 1201 0.45 1245 0.47 1284 0.5 1321 0.54 1357 0.58 1394 0.62
1100 1121 0.44 1169 0.47 1216 0.49 1259 0.52 1298 0.56 1335 0.6 1370 0.64 1406 0.69
1200 1139 0.49 1187 0.52 1234 0.54 1276 0.58 1314 0.62 1350 0.66 1385 0.71 1421 0.75
1300 1161 0.54 1208 0.57 1254 0.6 1295 0.64 1332 0.69 1366 0.73 1401 0.78 1436 0.83
1400 1185 0.59 1232 0.63 1276 0.67 1315 0.71 1351 0.76 1384 0.81 1419 0.86 1454 0.9
1500 1212 0.66 1257 0.7 1299 0.74 1337 0.79 1371 0.84 1404 0.89 1438 0.94 1473 0.99
