Lenord + Bauer 4 AssemblyPreparations
GEL 2432 / 244x 37
English

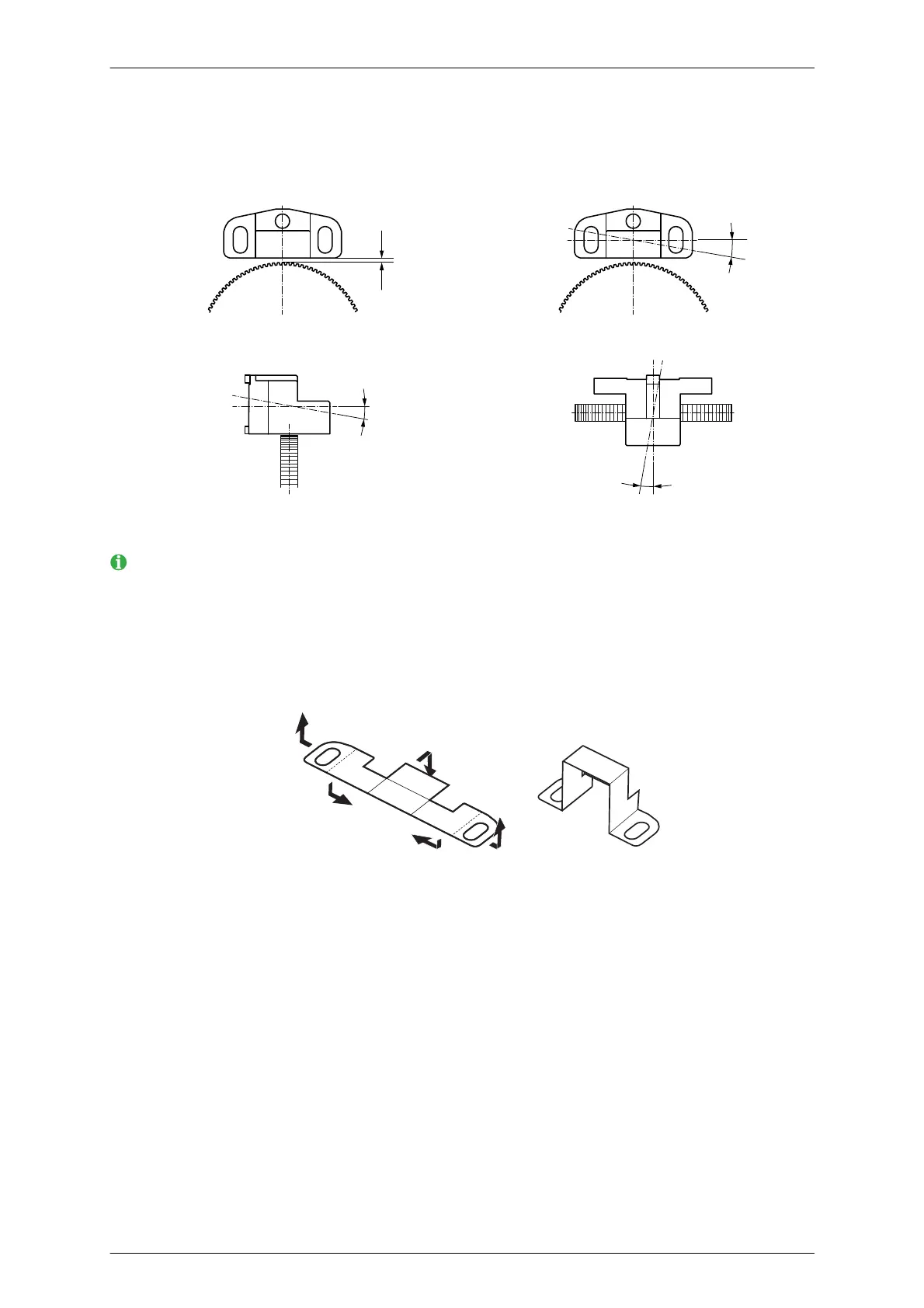

Possible mounting errors
Effect of the mounting position on the signal quality (based on the example of the GEL
244x):
Amplitude level tracks 1 and 2 Offset tracks 1 and 2
Amplitude synchronism track 1/2 Phase position track 1/2
Lenord + Bauer offers the special instrument GEL 211 for the measurement of the
signals. Using this instrument the programmable MiniCODER plus (GEL 2444KxP)
can also be adjusted, analysed, and configured.
4.1.2 Screen plate for GEL 2443
 Bend the screen plate at the prepared fold lines.
