Lenord + Bauer 4 AssemblyMounting MiniCODER
GEL 2432 / 244x 39
English
Only use the distance gauge supplied as a mounting aid. It will protect the
measuring surface against mechanical damage during assembly and en-
sure the correct adjustment of the air gap.

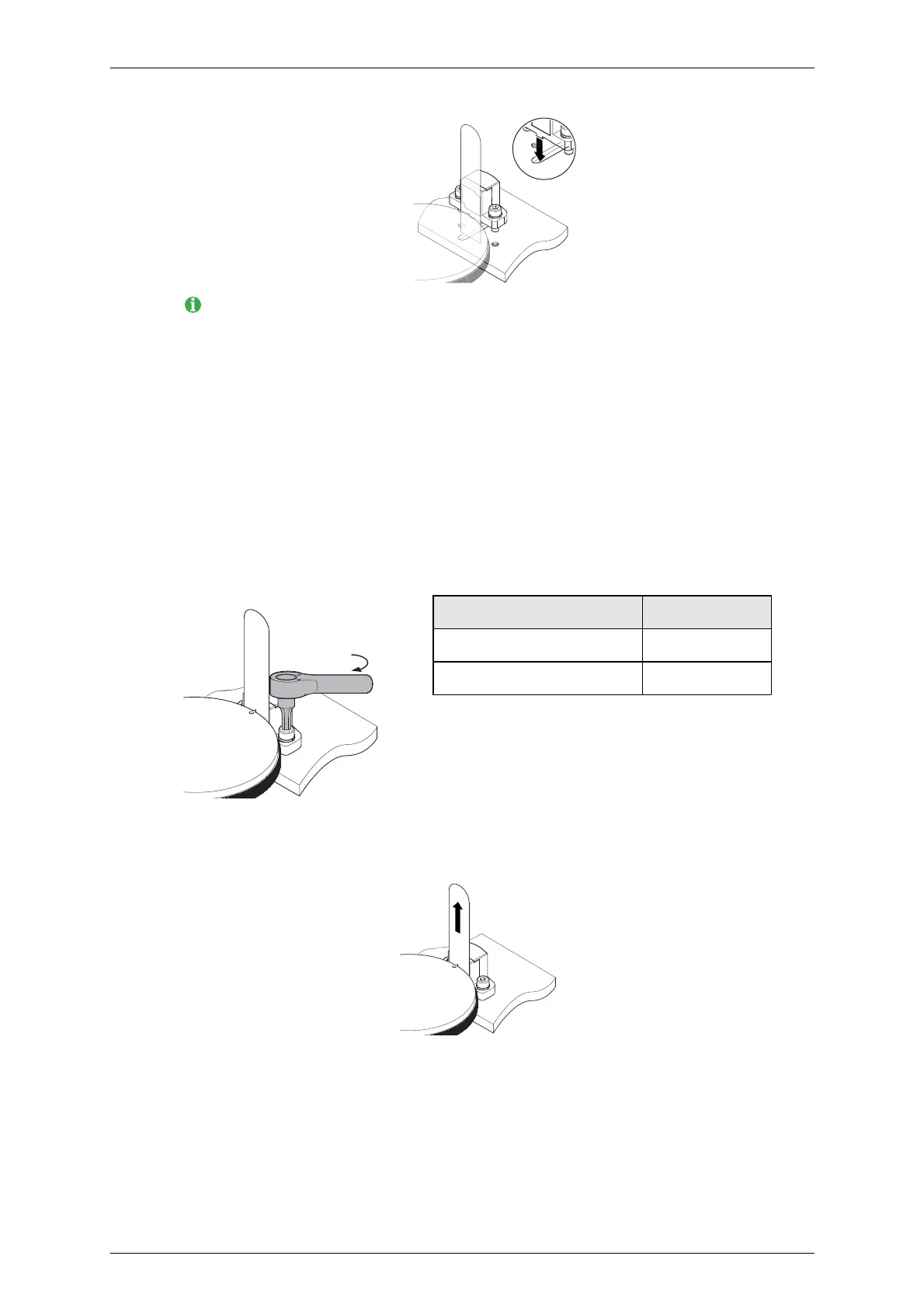

► Insert the two guide lugs on the MiniCODER in the guide slot on the mounting
surface and slide it against the distance gauge.
► Fix the MiniCODER by slightly tightening the screws.
► Check again the air gap with the aid of the distance gauge.
► Check the function of the MiniCODER (see below).
► After a successful function test, tighten the two mounting screws to the torque
as per the following table:
M
Housing material Max. torque M
Metal 2.5 Nm
Plastic with screen plate 1.0 Nm
► Remove the distance gauge.
