Removingtheopticaldrive
Toremovetheopticaldrive,dothefollowing:
1.Turnoffthecomputer.
2.Disconnectallcables,powercords,andexternaloptionsfromyourcomputer.See“Locatingconnectors
ontherearofyourcomputer”onpage68.
3.Placeasoft,cleantowelorclothonthedeskorsurface.Holdthesidesofyourcomputerandgentlylay
itdownsothatthescreenisagainstthesurfaceandthecoverisfacingup.
4.Removethecomputercover.See“Removingthecomputercover”onpage74.
5.Locatetheopticaldrive.See“LocatingmajorFRUsandCRUs”onpage69.

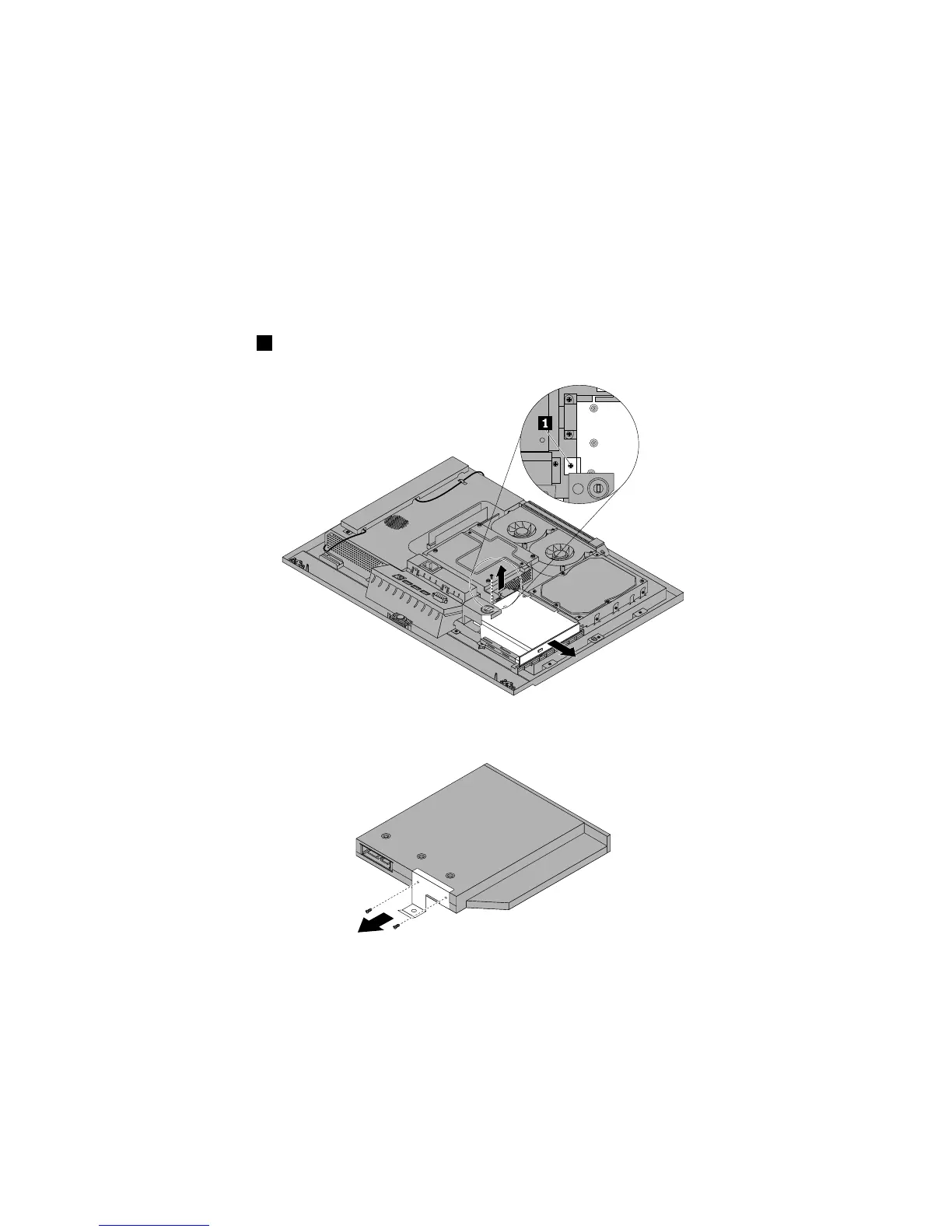

6.Removethescrew1thatsecurestheopticaldrivetothemainbracketandslidetheopticaldriveout
oftherail.
7.Removetheretentionclipfromtheopticaldrivebyremovingthetwoscrewsasshowninthefollowing
illustration.Savetheretentioncliptousewhenyouinstallthereplacementopticaldrive.
Installinganopticaldrive
Toinstallanopticaldrive,dothefollowing:
1.Turnoffthecomputer.
2.Disconnectallcables,powercords,andexternaloptionsfromyourcomputer.See“Locatingconnectors
ontherearofyourcomputer”onpage68
.
3.Placeasoft,cleantowelorclothonthedeskorsurface.Holdthesidesofyourcomputerandgentlylay
itdownsothatthescreenisagainstthesurfaceandthecoverisfacingup.
82ThinkCentreHardwareMaintenanceManual
