Lenovo Legion 5 15IMH05H User Manual

Note: If your computer includes two SSD drives, there are two SSD plates.

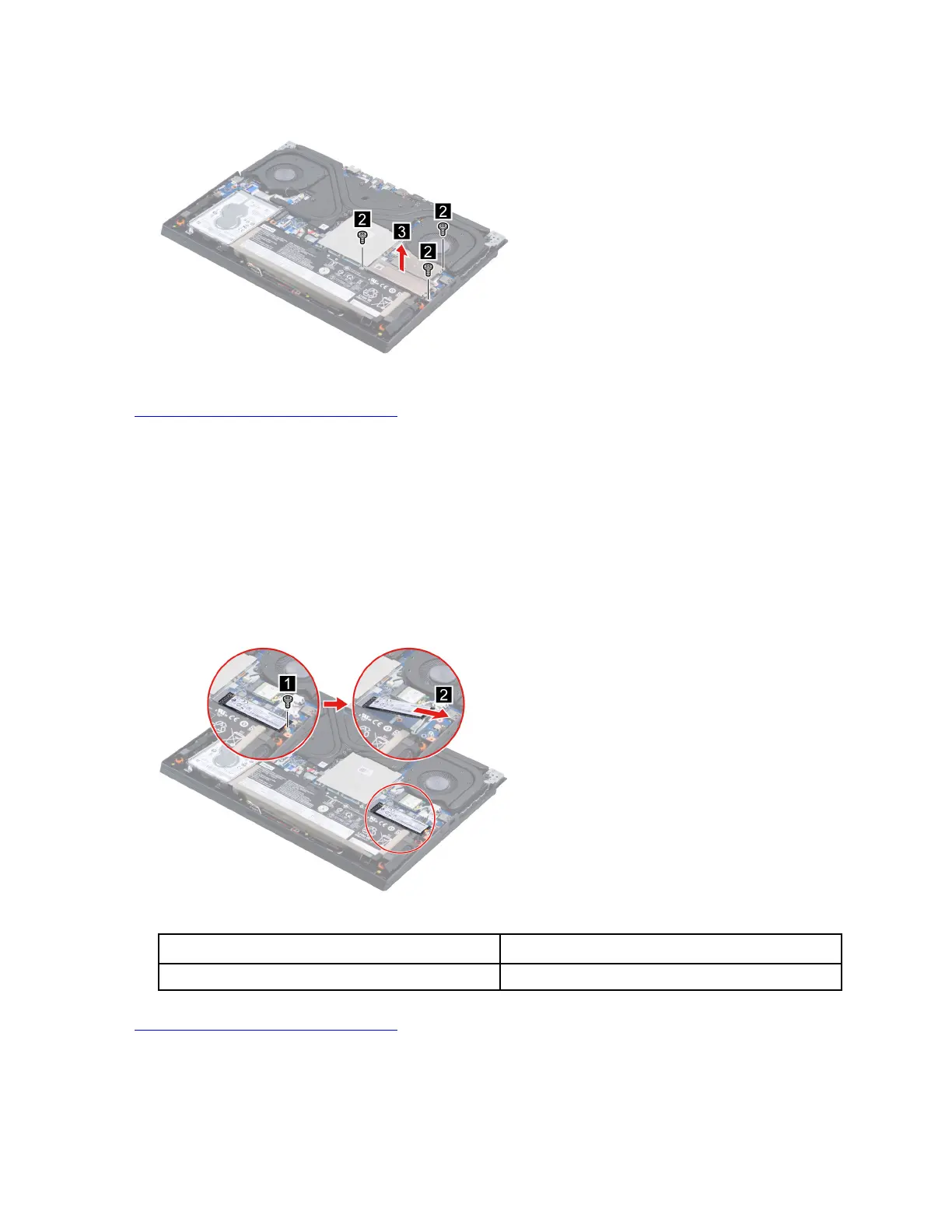

Figure 8. Remove the SSD plate
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
SSD plate
Remove the solid-state drive (SSD)
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 32
“Remove the solid-state drive (SSD) plate” on page 33
Step 1. Remove one screw and then remove the SSD by pulling it away from the slot.
Figure 9. Remove the SSD
Screw specifications
Number of screws
M2 x L3 1
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
SSD
34
Hardware Maintenance Manual

Lenovo Legion 5 15IMH05H Specifications

General

Operating System	Windows 10 Home
Processor	10th Gen Intel Core i7-10750H
Display	15.6" FHD (1920 x 1080) IPS
RAM	16GB DDR4
Storage	512GB SSD
Battery	60Wh
Weight	2.3 kg
Display Features	Anti-glare
Ports	USB 3.1, USB-C, HDMI, Ethernet, Audio Jack
Wireless	Wi-Fi 6, Bluetooth 5.0
