Lenovo Legion 5 15IMH05H User Manual

Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Detach the fan cable and remove three screws. Remove the fan as show.

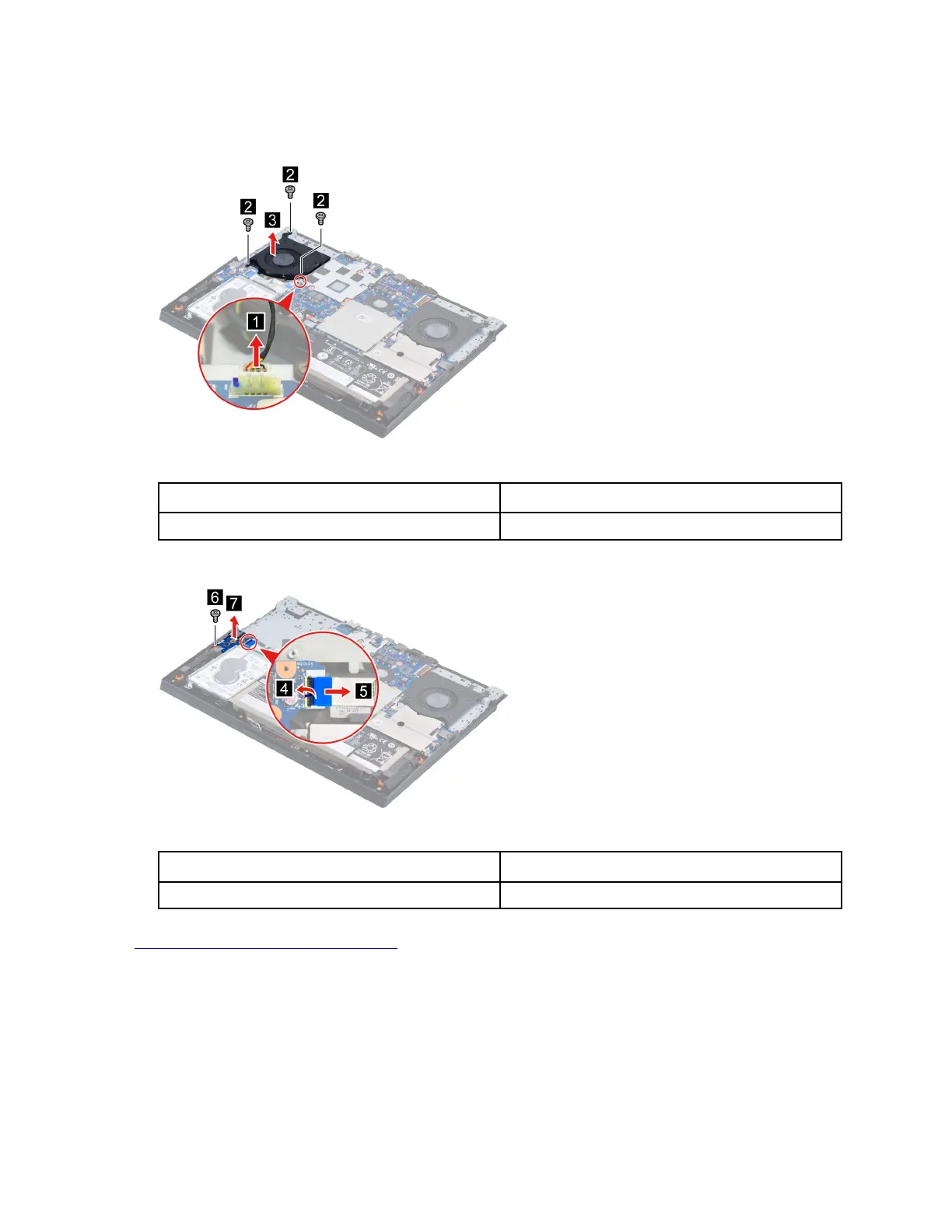

Figure 19. Remove the fan
Screw specifications Number of screws
M2 x L4.5 3
Step 3. Detach the I/O board cable and remove one screw. Remove the I/O board.
Figure 20. Remove the I/O board
Screw specifications
Number of screws
M2 x L3.5 1
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
I/O board
Remove the Kensington lock
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 32
40
Hardware Maintenance Manual

Lenovo Legion 5 15IMH05H Specifications

General

Operating System	Windows 10 Home
Processor	10th Gen Intel Core i7-10750H
Display	15.6" FHD (1920 x 1080) IPS
RAM	16GB DDR4
Storage	512GB SSD
Battery	60Wh
Weight	2.3 kg
Display Features	Anti-glare
Ports	USB 3.1, USB-C, HDMI, Ethernet, Audio Jack
Wireless	Wi-Fi 6, Bluetooth 5.0
