Lenovo ThinkCentre M920q 10RR User Manual

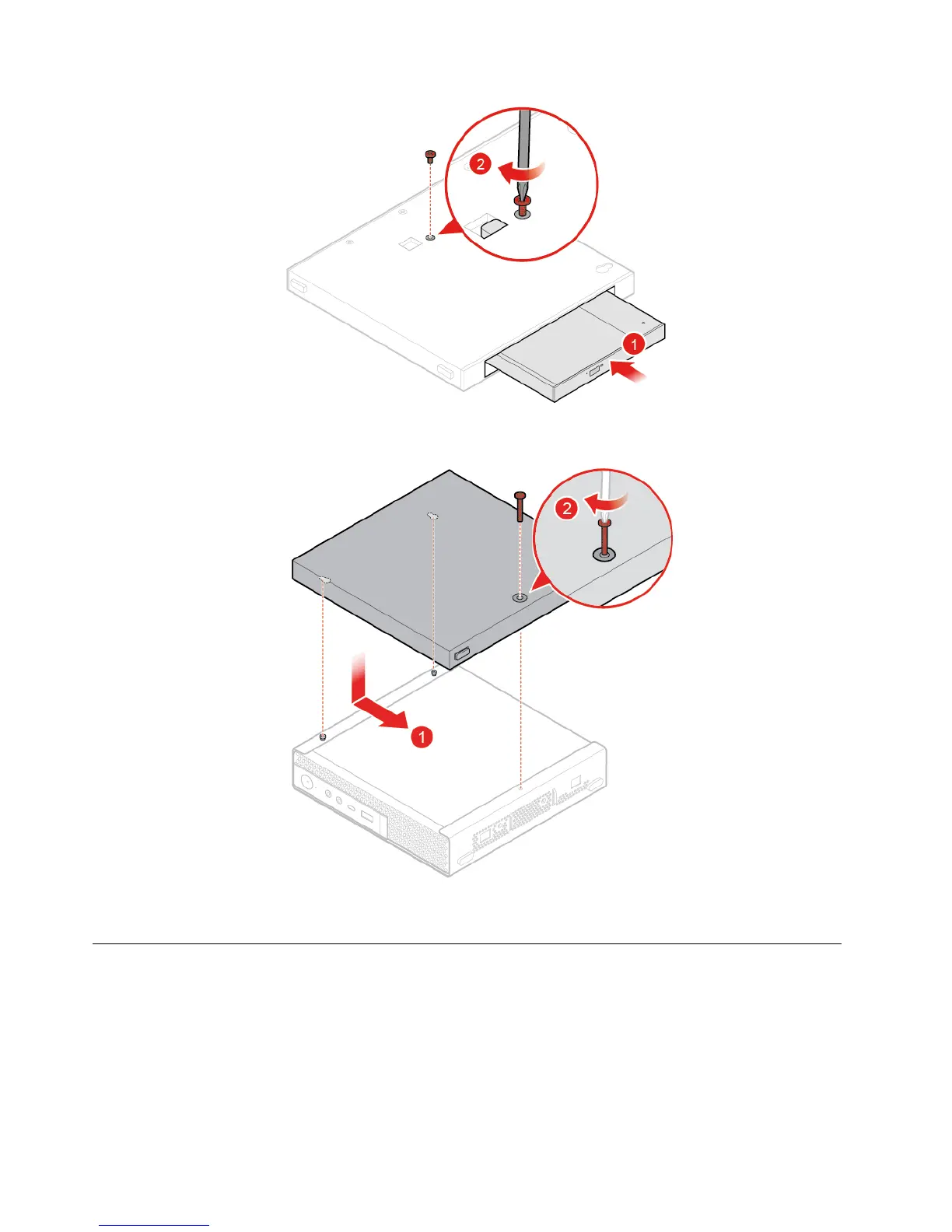

Figure 26. Installing the external optical drive
Figure 27. Installing the external optical drive box
Replacing the power adapter bracket
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove any media from the drives and turn off all connected devices and the computer.
2. Disconnect all power cords from electrical outlets and disconnect all cables that are connected to the
computer.
3. Replace the power adapter bracket.
24
M920q User Guide and Hardware Maintenance Manual

Lenovo ThinkCentre M920q 10RR Specifications

General

Memory	Up to 64GB DDR4 2666MHz
Operating System	Windows 10 Pro
Form Factor	Tiny
Chipset	Intel Q370
Storage	Up to 1TB HDD
Graphics	Intel UHD Graphics 630
Ports (Front)	2 x USB 3.1 Gen 1, Headphone/Microphone combo jack
Ports (Rear)	1 x DisplayPort, 1 x HDMI, 1 x RJ-45
Wireless	Wi-Fi 802.11ac, Bluetooth 5.0
Power Supply	65W
Weight	1.32 kg (2.91 lbs)
