Lenovo ThinkCentre M920q 10RR User Manual

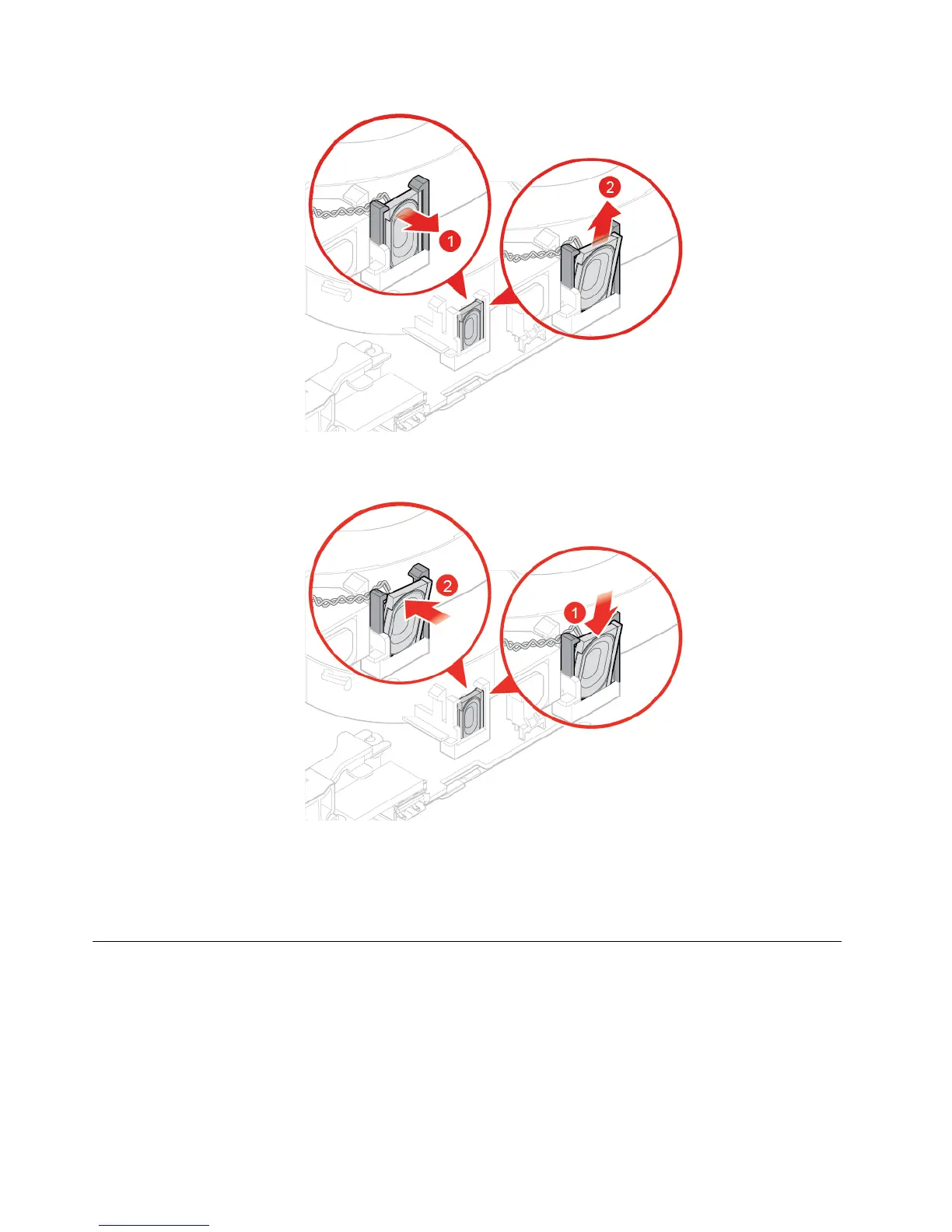

Figure 42. Removing the internal speaker
Figure 43. Installing the internal speaker
4. Connect the internal speaker cable to the internal speaker connector on the system board.
5. Complete the replacement. See “Completing the parts replacement” on page 56.
Replacing the advanced speaker
Note: The advanced speaker is optional.
Attention: Do not open your computer or attempt any repairs before reading the Important Product
Information Guide.
1. Remove the computer cover. See “Removing the computer cover” on page 25.
2. Replace the advanced speaker.
Note: Ensure that you disconnect or connect the advanced speaker cable during the replacement.
32
M920q User Guide and Hardware Maintenance Manual

Lenovo ThinkCentre M920q 10RR Specifications

General

Memory	Up to 64GB DDR4 2666MHz
Operating System	Windows 10 Pro
Form Factor	Tiny
Chipset	Intel Q370
Storage	Up to 1TB HDD
Graphics	Intel UHD Graphics 630
Ports (Front)	2 x USB 3.1 Gen 1, Headphone/Microphone combo jack
Ports (Rear)	1 x DisplayPort, 1 x HDMI, 1 x RJ-45
Wireless	Wi-Fi 802.11ac, Bluetooth 5.0
Power Supply	65W
Weight	1.32 kg (2.91 lbs)
