Lenovo ThinkCentre M920q 10RR User Manual

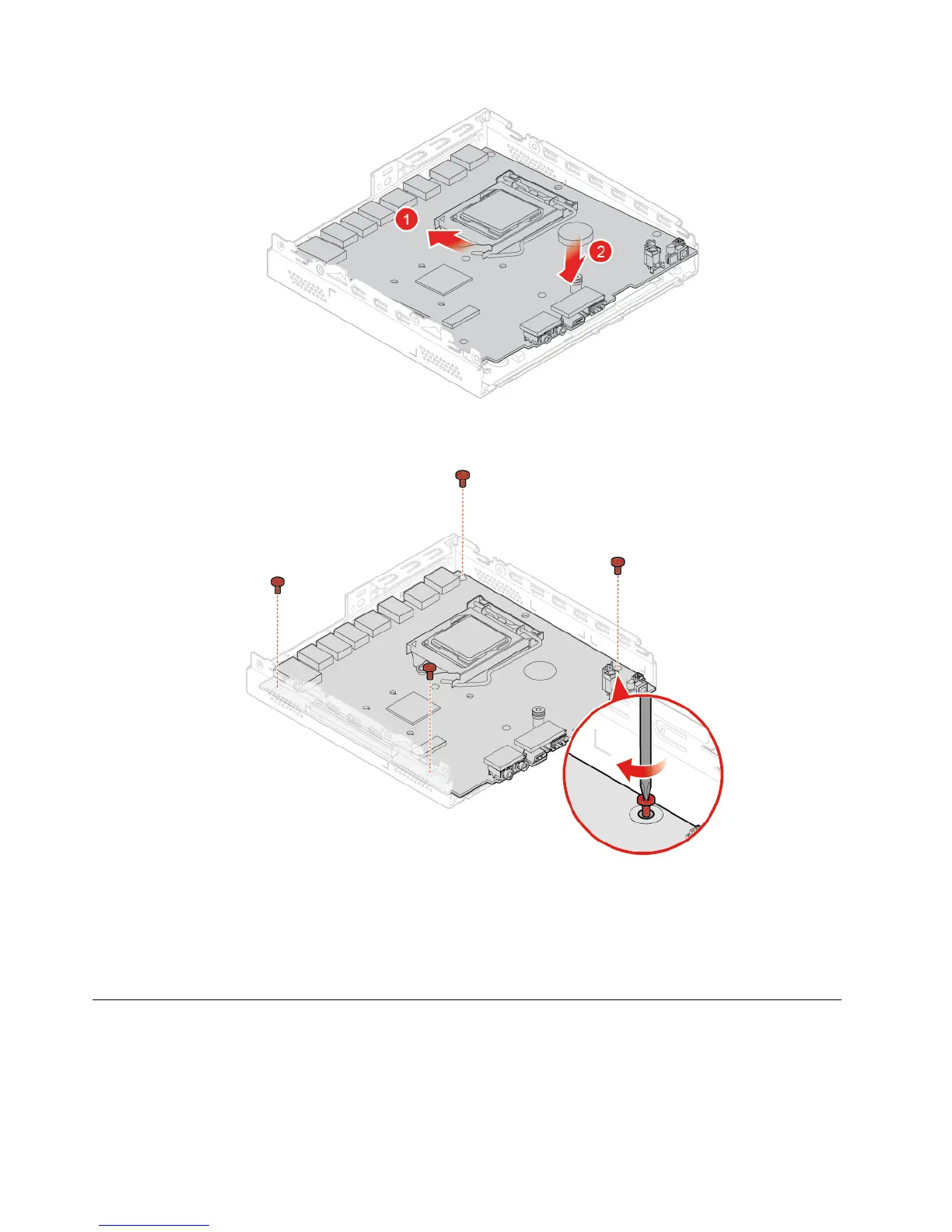

Figure 96. Installing the system board
Figure 97. Installing the screws to secure the system board
16. Route all the cables that you disconnected from the failing system board, and then reconnect the cables
to the new system board. See “System board” on page 4.
17. Complete the replacement. See “Completing the parts replacement” on page 56.
Completing the parts replacement
After completing the installation or replacement for all parts, Complete the replacement.
To Complete the replacement to your computer, do the following:
56
M920q User Guide and Hardware Maintenance Manual

Lenovo ThinkCentre M920q 10RR Specifications

General

Memory	Up to 64GB DDR4 2666MHz
Operating System	Windows 10 Pro
Form Factor	Tiny
Chipset	Intel Q370
Storage	Up to 1TB HDD
Graphics	Intel UHD Graphics 630
Ports (Front)	2 x USB 3.1 Gen 1, Headphone/Microphone combo jack
Ports (Rear)	1 x DisplayPort, 1 x HDMI, 1 x RJ-45
Wireless	Wi-Fi 802.11ac, Bluetooth 5.0
Power Supply	65W
Weight	1.32 kg (2.91 lbs)
