Lenovo ThinkPad Thunderbolt 3 User Manual

1
2

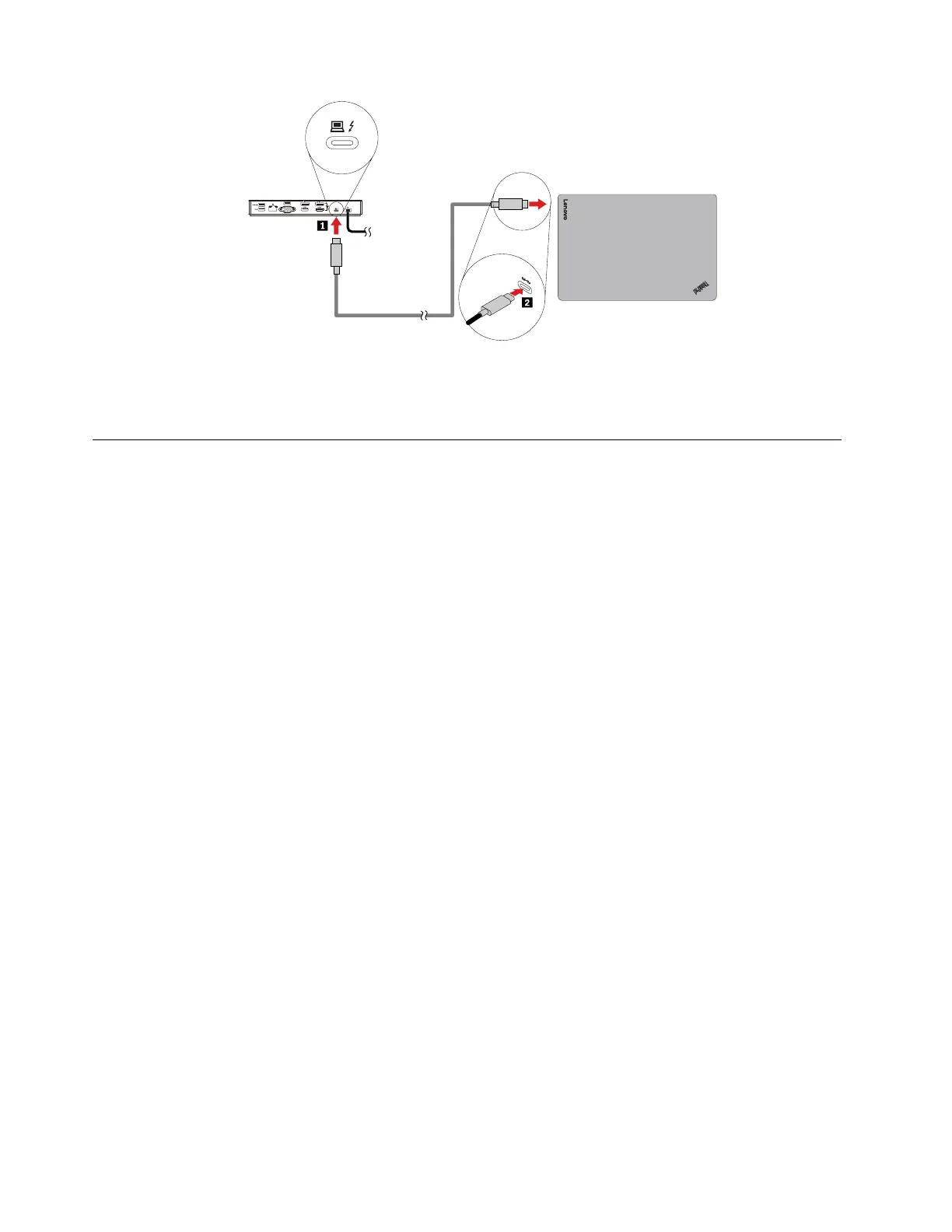

Figure 3. Connecting the dock to the computer
Note: The dock supplies power to the computer when it is connected to the computer.
Uninstalling the device driver from Windows operating systems
To uninstall the device driver, do the following:
1. From the desktop, move the pointer to the bottom-left corner of the screen, and then search Control
Panel in the search box.
2. Click Control Panel, and then change the view of Control Panel to Category.
3. Click Uninstall a program ➙ ThinkPad Thunderbolt 3 Dock USB Audio, and then right-click to select
Uninstall.
4. Click ThinkPad Thunderbolt 3 Dock Ethernet driver, and then right-click to select Uninstall.
5. Follow the instructions on the screen to uninstall the device driver.
6. If necessary, restart your computer.
8
ThinkPad Thunderbolt 3 Dock User Guide

Lenovo ThinkPad Thunderbolt 3 Specifications

General

Microphone in	No
Headphone outputs	-
USB connector type	USB Type-A
PS/2 ports quantity	2
USB 2.0 ports quantity	0
Connectivity technology	Wired
Combo headphone/mic port	Yes
Thunderbolt 3 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Certification	COC, CU EAC, cULus, FCC, ICES, KCC, NOM, RCM, SABS LoA, Serbia Kvalitet, SII, TUV Mark, VCCI, CE, CB, BSMI
Compatibility	ThinkPad
Product color	Black
Brand compatibility	Lenovo
Cable lock slot type	Kensington
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	4
Cables included	AC, Thunderbolt
Package depth	195 mm
Package width	270 mm
Package height	85 mm
Package weight	2232 g
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-5 - 35 °C
Operating relative humidity (H-H)	5 - 95 %
Windows operating systems supported	Windows 10
Sustainability certificates	RoHS
Power supply	230 W
Power source type	DC
Power supply type	External

Weight and Dimensions

Depth	80 mm
Width	220 mm
Height	30 mm
Weight	525 g
