Lenovo ThinkPad USB-C Dock Gen 2 User Manual

Chapter 3. Use the dock
Use the video output connectors

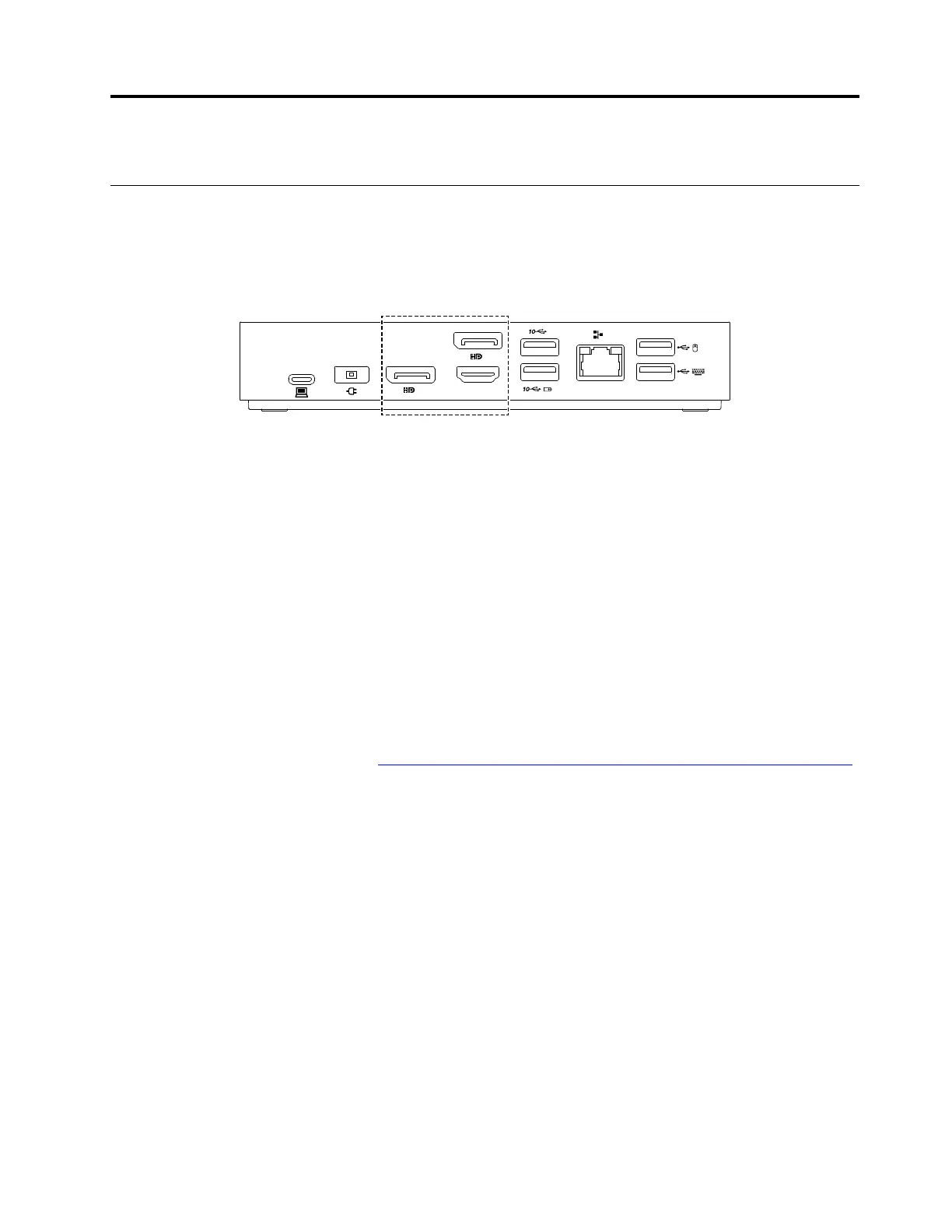

The dock has three video output connectors to support up to three external displays:
•
Two DisplayPort connectors (support DisplayPort 1.4)
• One HDMI connector (supports HDMI 2.0)
HDMI
Supported resolution
Depending on the USB-C connector or Thunderbolt 3 connector on your computer, the dock supports the
following display resolutions:
• If the USB-C connector or Thunderbolt 3 connector supports DisplayPort 1.4,
–
One video output connector: up to 3840 x 2160 pixels / 60 Hz
– Two video output connectors: up to 3840 x 2160 pixels / 30 Hz
–
Three video output connectors: up to 1920 x 1080 pixels / 60 Hz
• If the USB-C connector or Thunderbolt 3 connector supports DisplayPort 1.2,
–
One video output connector: up to 3840 x 2160 pixels / 30 Hz
– Two video output connectors: up to 1920 x 1080 pixels / 60 Hz
Note: Do not connect three external displays to the dock, because the display resolution is low.
For the maximum display matrix, go to
https://support.lenovo.com/us/zh/solutions/pd029622#USB-C%20dock
and select the entry for the dock.
Configure the external displays
You can configure the external displays connected to your dock:
•
Set the display mode: extend, mirror or duplicate, or single display
• Set the orientation, brightness, resolution, color, and more.
To configure the external displays:
1. Right-click a blank area on the desktop and select Screen resolution (Windows 7) or Display settings
(Windows 10).
2. Select the display that you want to configure.
3. Configure display settings of your preference.
For more information, see the Windows help information.
© Copyright Lenovo 2019 7

Lenovo ThinkPad USB-C Dock Gen 2 Specifications

General

Certification	FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM
Compatibility	ThinkPad T490 (20N2, 20N3, 20Q9, 20QH), ThinkPad T590 (20N4, 20N5), ThinkPad X280 (20KE, 20KF), ThinkPad T480 (20L5, 20L6), ThinkPad X1 Carbon 6th (20KH, 20KG), ThinkPad X270 (20HM, 20HN, 20K5, 20K6), ThinkPad T480s (20L7, 20L8)
Product color	Black
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Brand compatibility	Lenovo
Card reader integrated	No
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Headphone outputs	0
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	2
Connectivity technology	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Power supply	90 W
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Windows operating systems supported	Windows 10, Windows 7
Package depth	158 mm
Package width	210 mm
Package height	75 mm
Package weight	960 g
Quantity per pack	1 pc(s)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Cables included	AC, USB Type-C
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 95 %
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	80 mm
Width	171 mm
Height	30.75 mm
Weight	325 g
