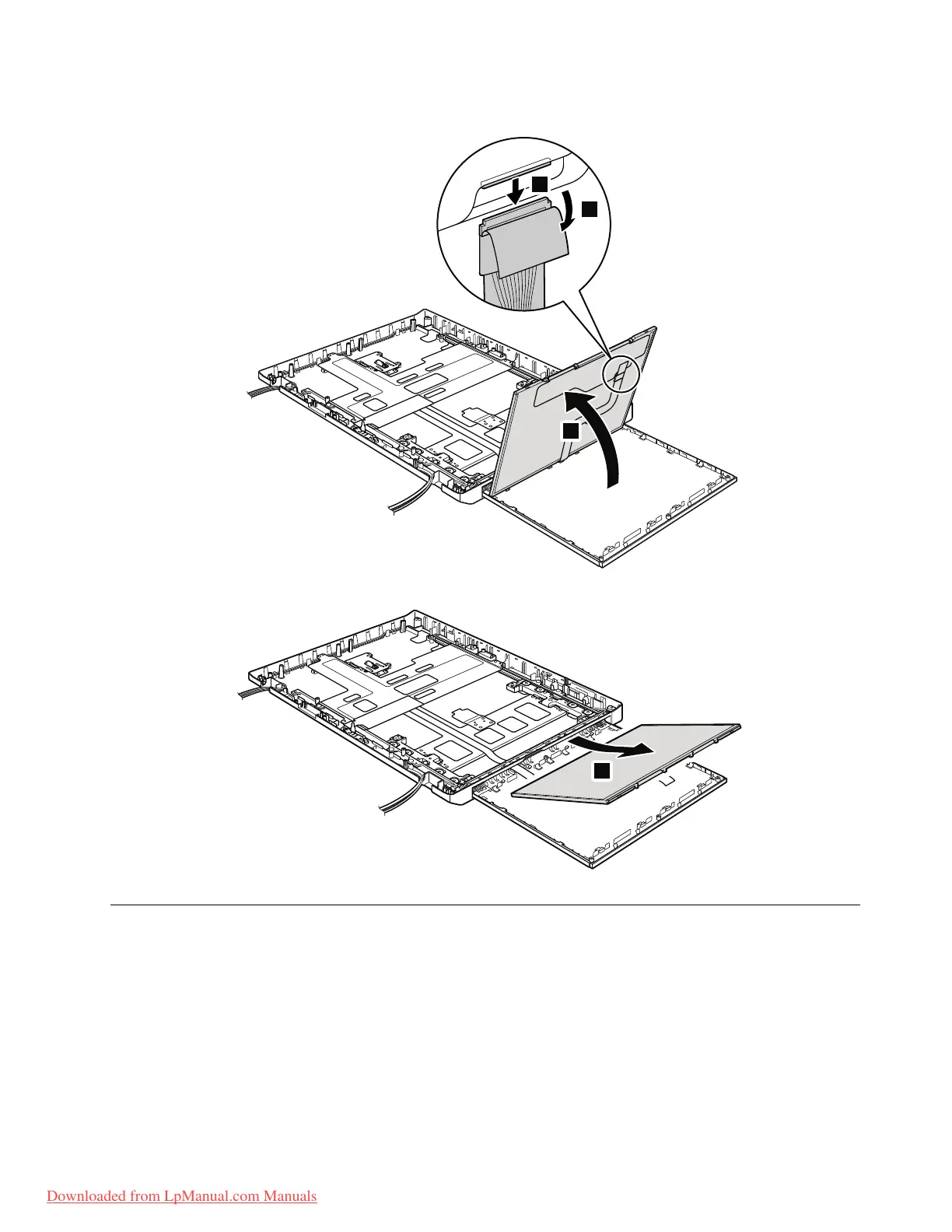

Table54.RemovalstepsofsecondLCDpanel(forThinkPadW700dsandW701ds)
1
2
3
4
2080SecondLCDcableassembly(forThinkPadW700dsandW701ds)
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage68
•“1040Harddiskdrive(HDD)cover,HDDandHDDrubberrailsorsolidstatedrive(SSD)andstorage
converter”onpage70
•“1060Palmrestorpalmrestwithngerprintreader”onpage75
•“1090Keyboard”onpage80
•“1130Keyboardbezelandspeakerassembly”onpage88
•“1140WirelessUSBadapterorIntelTurboMemoryMinicard”onpage93
•“1150PCIExpressMiniCardforwirelessLAN/WiMAX”onpage94
•“1220LCDunitandLCDcablecap”onpage113
Chapter9.RemovingandreplacingaFRU141
