1160 Dummy smart card reader (for selected models)
For access, remove these FRUs in order:
• “1020 Base cover assembly” on page 69
• “1070 Built-in battery” on page 76
• “1090 Speaker assembly ” on page 78

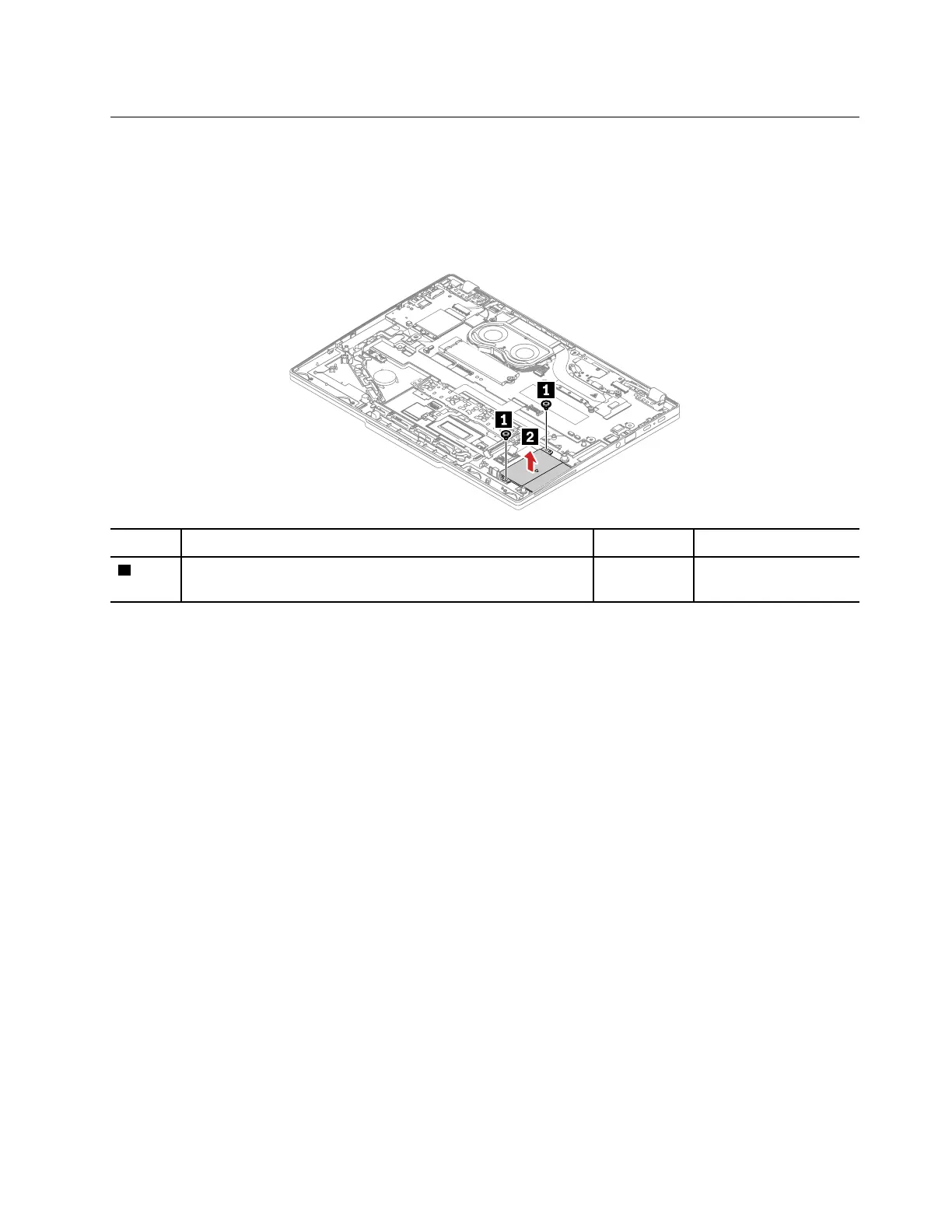

Removal steps of the smart card reader
Step Screw (quantity) Color Torque
3
M1.6 × 2.1 mm, flat-head, nylon-coated (2)
Black 0.15 Nm
(1.0 kgf-cm)
Chapter 8. Removing or replacing a FRU 87
