•FormodelswithawirelessLANcardthathastwoantennaconnectors,plugthegraycableintothe
connectorlabeledMAINorMonthecard,andtheblackcableintotheconnectorlabeledAUXorA.Ifthe
computeryouareservicinghasthreecables,putthewhitecableinthecableprotectiontube.
•FormodelswithawirelessLANcardthathasthreeantennaconnectors,plugthegraycable(MAIN)into
theconnectorlabeledTR1,thewhitecable(third)intotheconnectorlabeledROorTR3,andtheblack
cable(AUX)intotheconnectorlabeledTR2onthecard.
1100PCIExpressMiniCardforwirelessWANormSATAsolid-statedrive
Foraccess,removetheseFRUsinorder:
•“1020Batterypack”onpage63
•“1060Keyboard”onpage67
•“1070Palmrest”onpage70
ThecomputercomeswitheitheraPCIExpressMiniCardforwirelessWANoranmSATAsolid-statedrive.

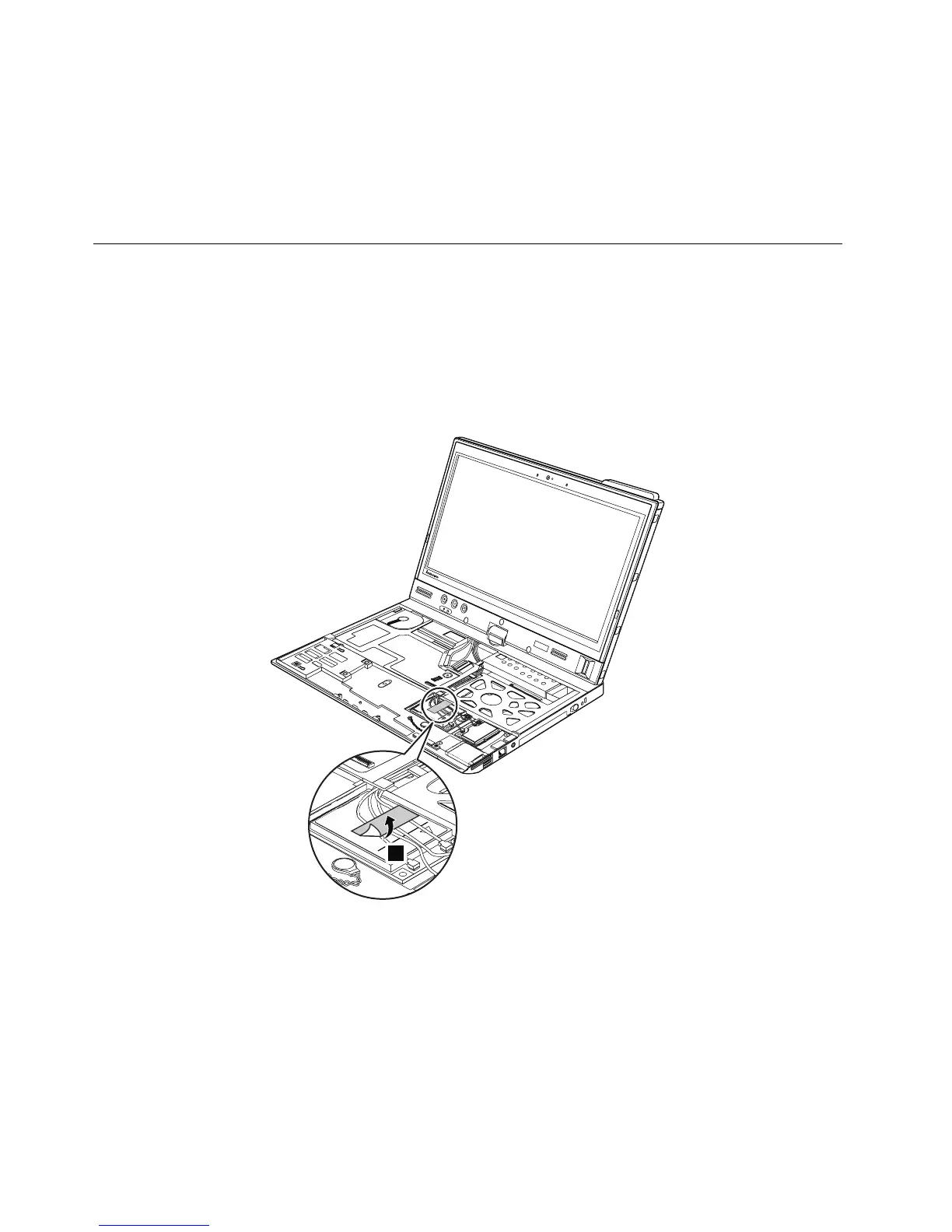

RemovalstepsofPCIExpressMiniCardforwirelessWAN
