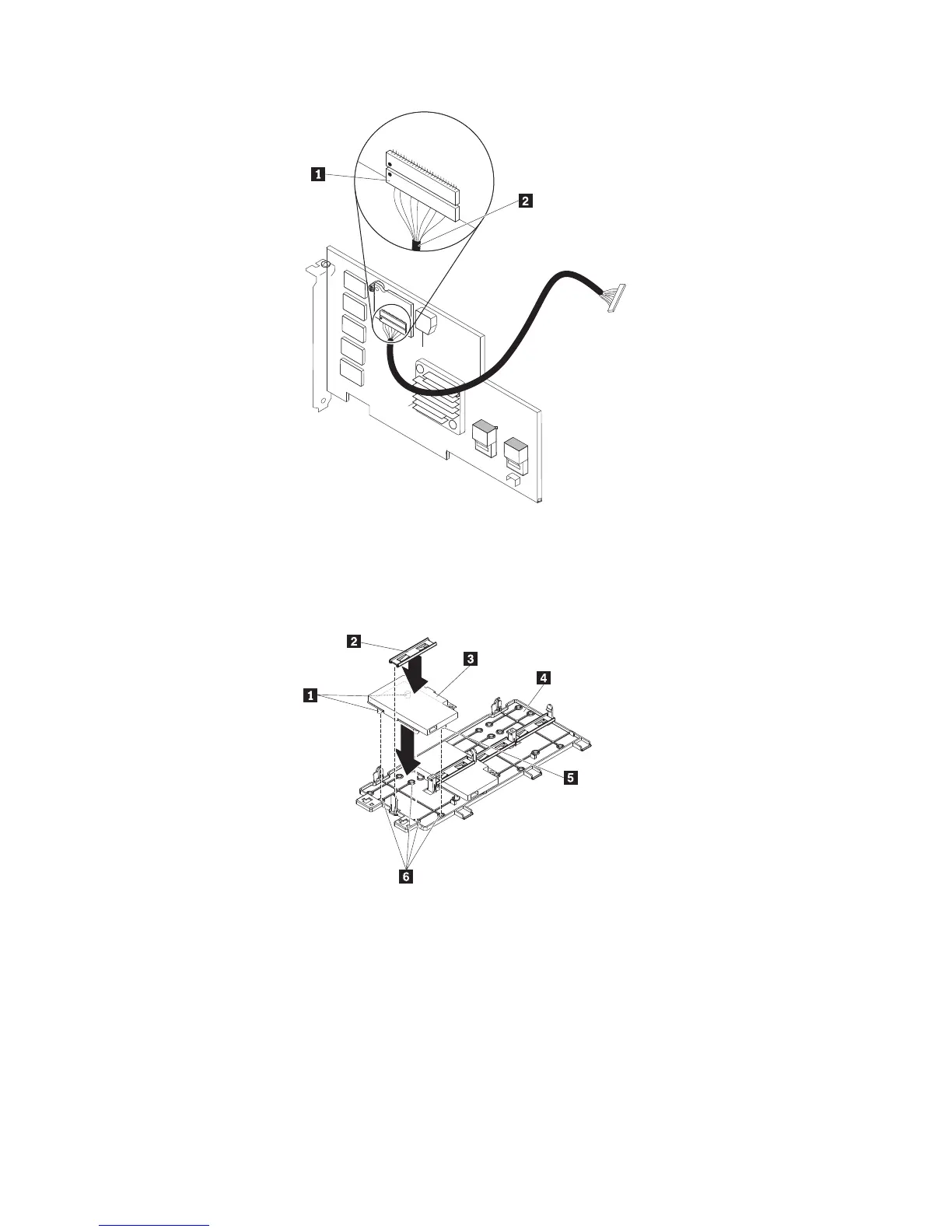

1 Remote battery cable connector
2 Remote battery cable
c. On the remote battery tray, find the pattern of recessed rings that matches
the posts on the battery and battery carrier.
1 Posts
2 Battery retention clip
3 Battery
4 Battery tray
5 Post
6 Rings
d. Press the posts into the rings and underneath the tabs on the remote
battery tray.
e. Secure the battery to the tray with the battery retention clip.
2. Install the cover “Completing the installation” on page 227.
210 ThinkServer RD220 Types 3729, 3779, 3797, and 3798: Hardware Maintenance Manual
