5.Disconnectthefollowingsignalcablesfromthesignalcableconnectorsonthebackplaneforserver
modelswith123.5-inchharddiskdrivebays.
•SignalcableforthefrontcontrolsandLEDsontherightrackhandle
•SignalcableforthefrontUSBconnectorsontheleftrackhandle

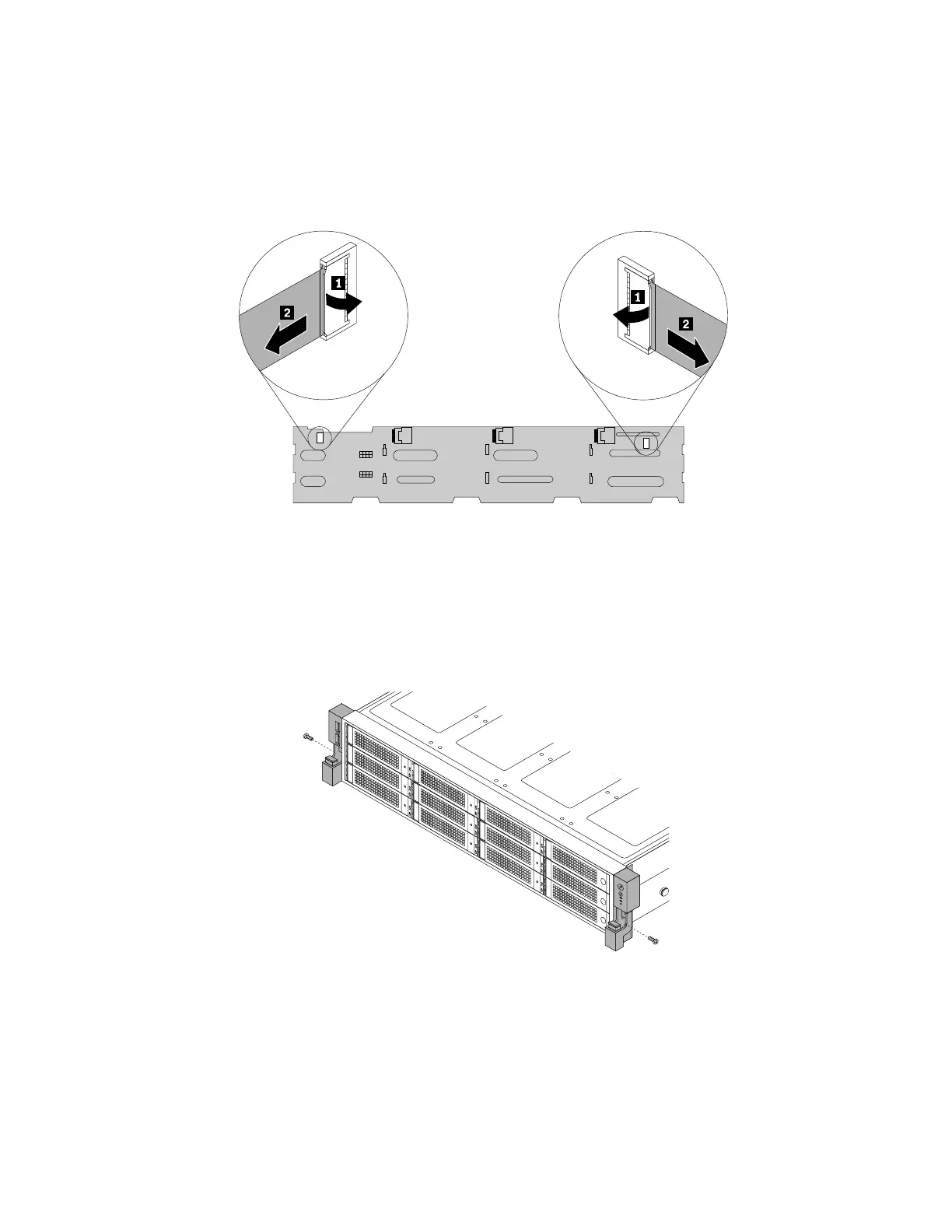

Figure46.Disconnectingtherackhandlesignalcablesfromthebackplane
6.Oneachsideoftheserver,removethescrewthatsecurestherackhandleandthenremovetherack
handlefromthechassis.
Note:Carefullypullthesignalcableofeachrackhandleoutoftheholeinthechassiswhenyouare
removingtherackhandles.
Figure47.Removingtherackhandlesforservermodelswith123.5-inchharddiskdrivebays
7.Toreinstalltherackhandlesforservermodelswith123.5-inchharddiskdrivebays,dothefollowing:
88ThinkServerRD430HardwareMaintenanceManual
