Note:Dependingonthespecifictype,theEthernetcardanditsbracketmightlookdifferentfromthe
followingillustrations.
a.CarefullyremovethescrewsthatsecuretheEthernetcardandthenremovethefull-heightbracket
fromtheEthernetcard.

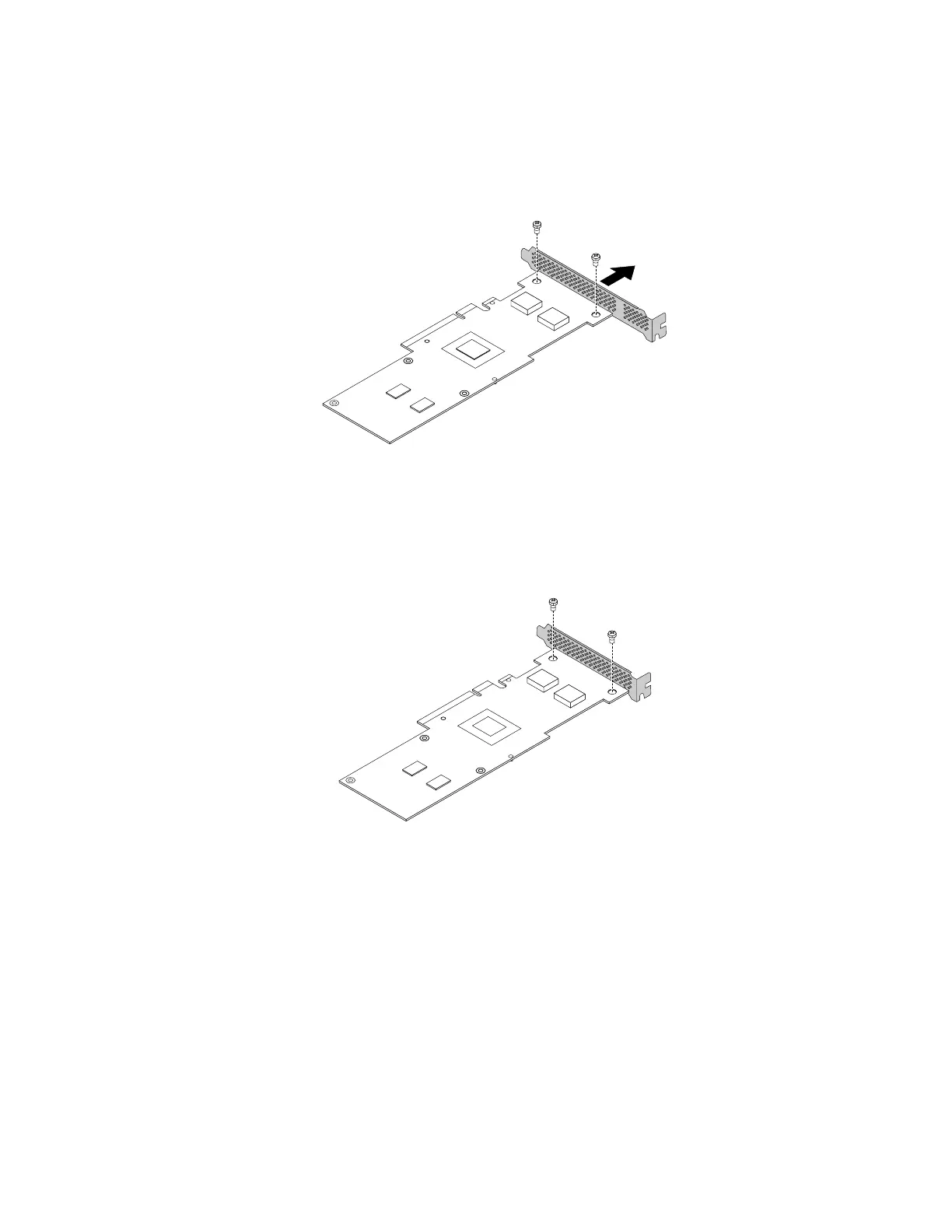

Figure74.Removingthefull-heightbracketfromtheEthernetcard
b.Notetheorientationofthelow-profilebracketandpositionitontheEthernetcardsothatthescrew
holesinthelow-profilebracketarealignedwiththecorrespondingholesintheEthernetcard.Then,
carefullyinstallthescrewstosecurelyattachthelow-profilebrackettotheEthernetcard.
Figure75.Installingthelow-profilebrackettotheEthernetcard
116ThinkServerRD430HardwareMaintenanceManual
