6.InsertonesideoftheTR300KeyunderoneoftheretainingclipsontheiButtonsocket.Then,carefully
presstheothersideoftheTR300Keystraightdownuntilitsnapsintopositionandissecuredbythe
tworetainingclipsontheiButtonsocket.

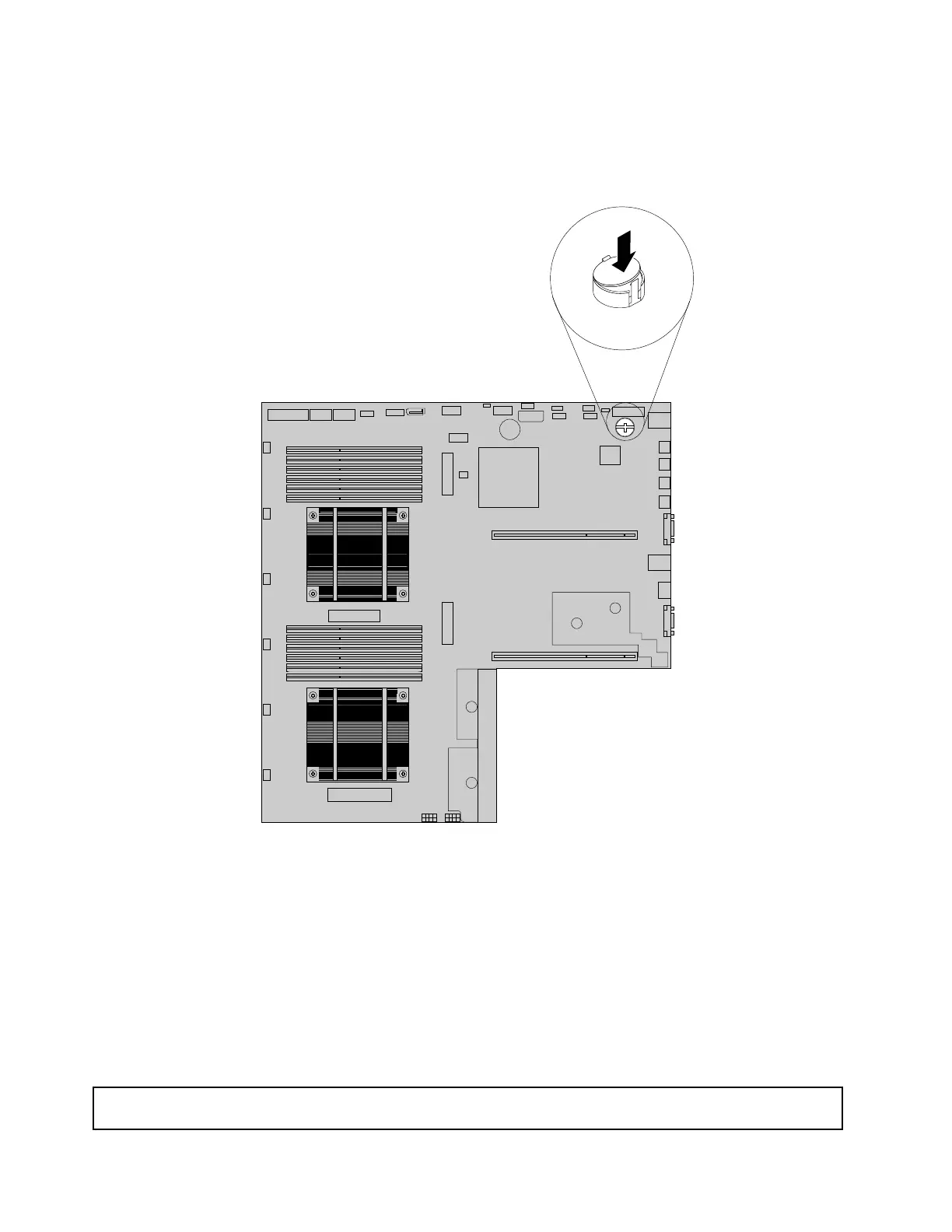

Figure78.InstallingtheTR300Key
7.Ifyouhavelifteduptherisercardassembly1,reinstallitintothechassis.See“Replacingtheriser
cardassembly1”onpage159
.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage182.Then,theonboard
SASsoftwareRAID5isavailableforyourserverifyourserverhastherequirednumberofharddiskdrives
installed.ToconfigureRAID,see“ConfiguringRAID”onpage70
.
RemovingtheTR300Key
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Safetyinformation”
onpageiiiand“Guidelines”onpage81.
