0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

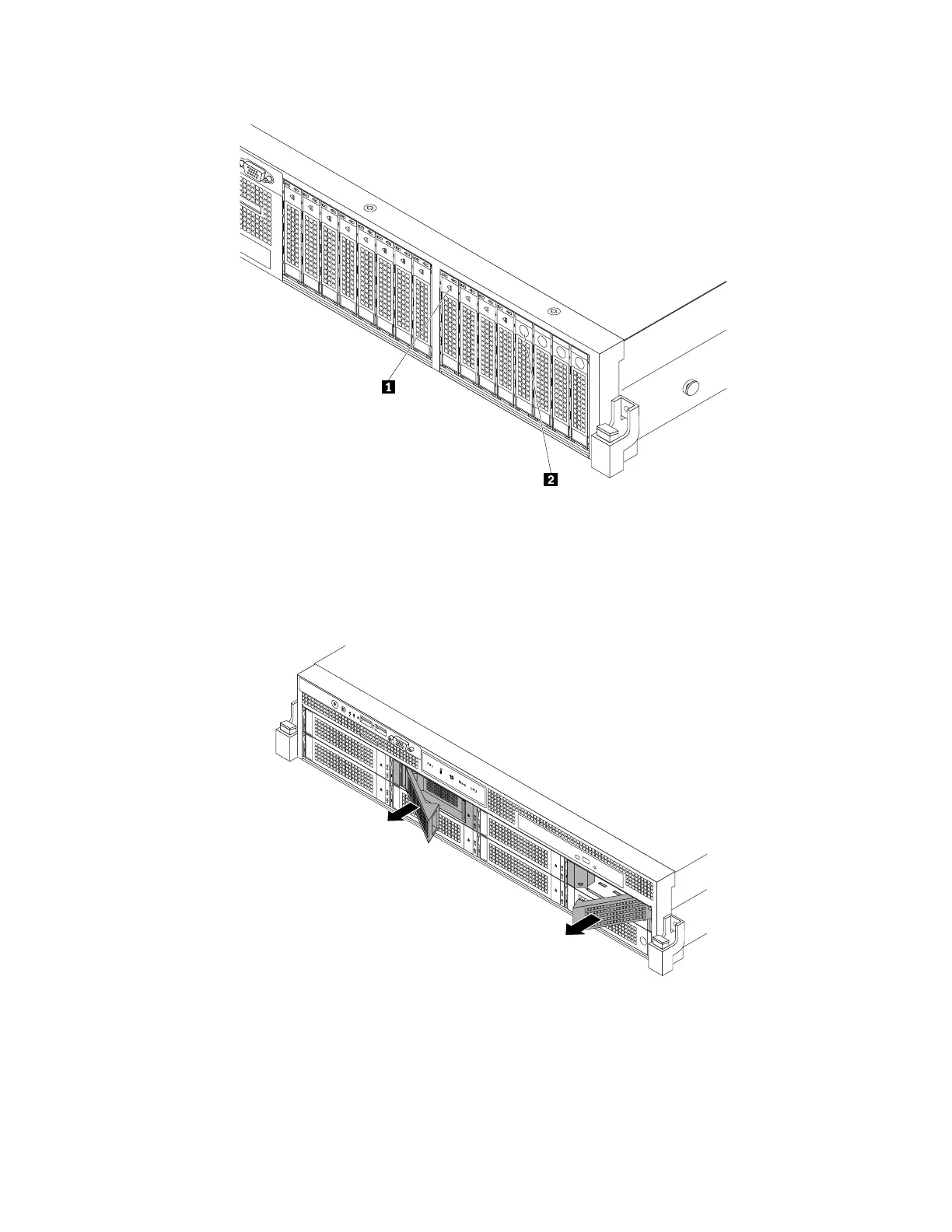

Figure106.Openingthehandleofa2.5-inchhot-swapharddiskdriveordummytray
2.Pullthehandleandcarefullyslidethehot-swapharddiskdriveorthedummytrayoutofthefrontof
thechassis.
Figure107.Removingthe3.5-inchhot-swapharddiskdriveordummytray
150ThinkServerRD430HardwareMaintenanceManual
