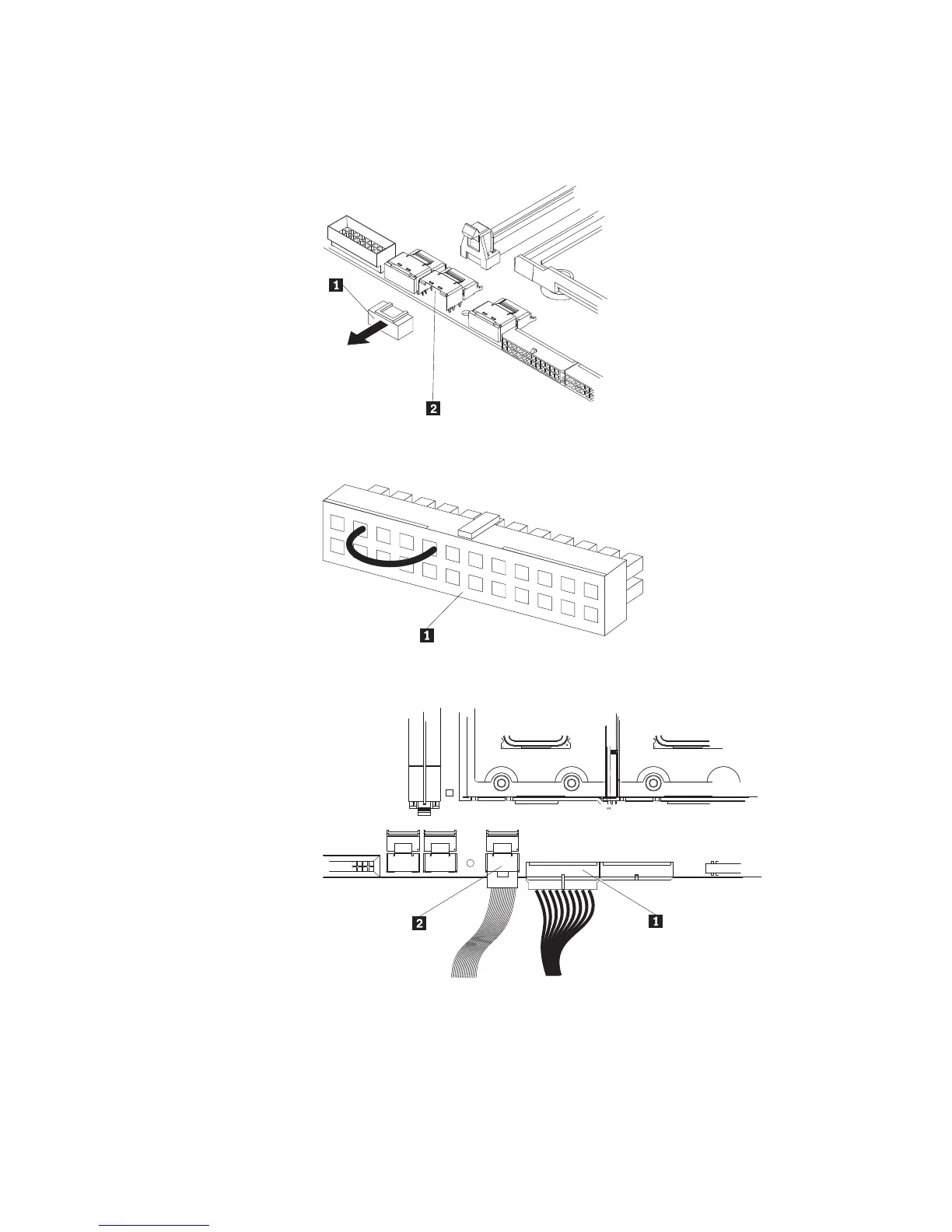

Note: Remove the dust shield 1 (if one is present) from the Hot-swap
SAS/SATA 1 signal connector 2on the system board before installing the
signal cable. Carefully grasp the dust shield and pull it out of the signal
connector.
b. Connect the RAID level-5 enabler plug (that came with the system) to the
SAS/SATA backplane 1 connector on the system board.
1
12
13
24
The following illustration shows how the simple-swap SATA model is cabled
when it is shipped.
1 SAS/SATA backplane 2
2 Simple-swap SATA backplate
Chapter 4. Removing and replacing server components 119
