7
2
4
9
8
10
11
1
25
24
22
23
6
5
12
14
15
18
19
13
20
16
17
21
3
26

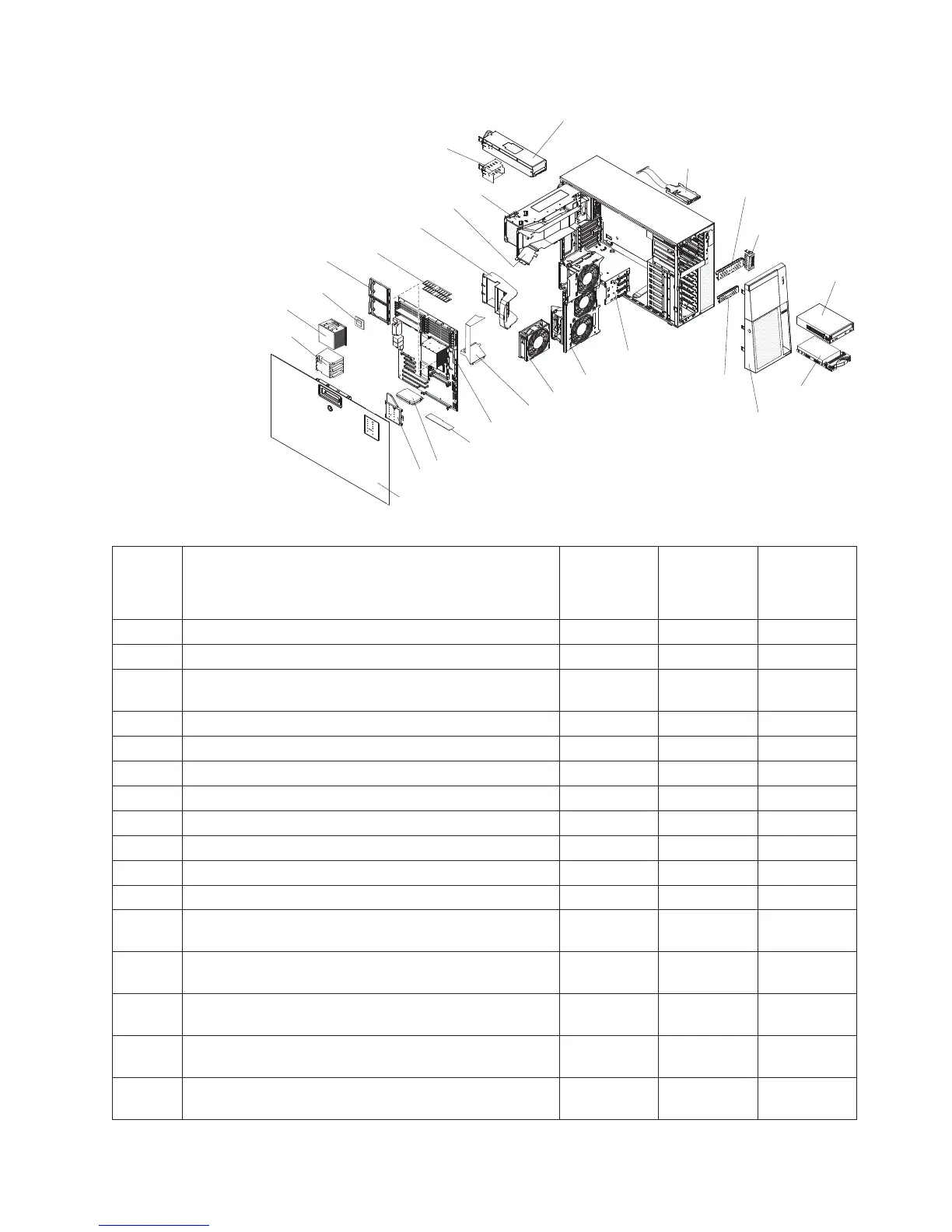

Table 7. Parts listing, Types 4203
Index Description
CRU part
number
(Self-service)
CRU part
number
(Optional-
service)
FRU
part number
1 Power supply 670W (models) 24R2694
1 Power supply 835W (models 11U 11G 11A) 24R2720
2 Operator information panel assembly, with bracket and
cables (all models)
41Y9083
3 5.25 inch EMC flange (all models) 39Y8355
4 USB mounting bracket (all models) 41Y9068
5 48X HLDS CDROM black (models) 39M3511
5 16/48XHLDS DVD-ROM (models) 39M3515
5 HLDS 16/48X H/H DVD ROM (models) 39M3569
5 16/48X BLACK DVD ROM (models) 39M3517
5 Half-High Combo drive (models) 43W4575
5 Half-High Multi-Burner (HH Rambo-9) (models) 43W4577
6 Hard disk drive, 160GB 7200 RPM 3.5″ Simple-Swap
SATA II (models)
45J9632
6 Hard disk drive, 250GB 7200 RPM 3.5″ Simple-Swap
SATA II (models)
45J9634
6 Hard disk drive, 160GB 7200 RPM 3.5-inch Hot-Swap
SATA II (models)
45J9640
6 Hard disk drive, 250GB 7200 RPM 3.5-inch Hot-Swap
SATA II (models)
45J9642
6 Hard disk drive, 500GB 7200 RPM 3.5-inch Hot-Swap
SATA II (models)
45J9644
Chapter 3. Parts listing, TD100 Types 6398, 6399, 6419, 6429, 4203, and 4206 51
