Connecteurs internes de la carte mère

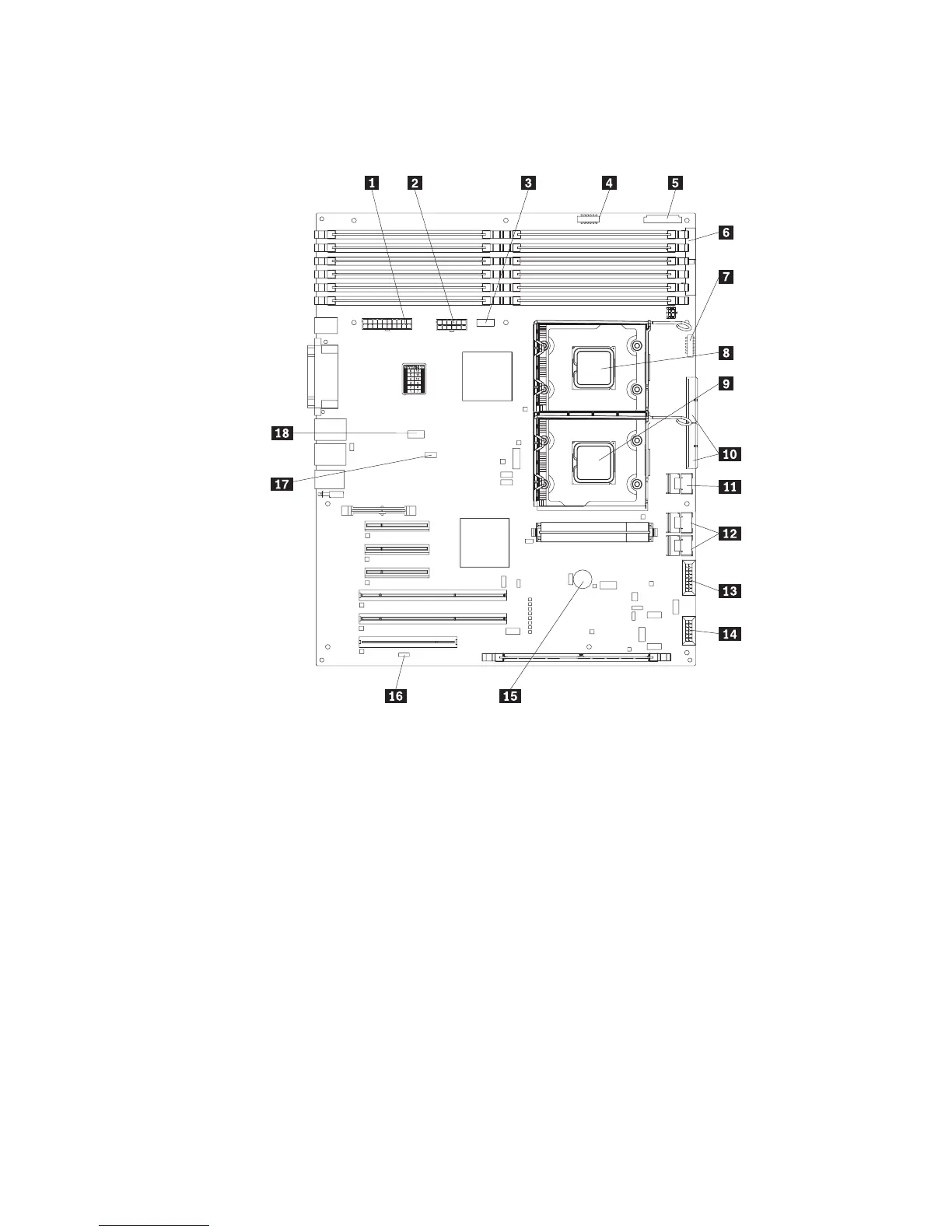

La figure suivante présente les connecteurs internes de la carte mère.
1 Alimentation électrique 10 Alimentation du fond de panier
SAS/SATA
2 Alimentation 11 Plaque arrière SATA simple
3 Alimentation 12 Connecteur d’interface du fond de
panier SAS/SATA remplaçable à
chaud
4 Bande USB 13 Ventilateur principal remplaçable à
chaud
5 Panneau frontal 14 Ventilateur remplaçable à chaud (de
secours)
6 Unité IDE principale 15 Pile
7 USB avant 16 Réservé
8 Microprocesseur 1 17 En-tête série 2 (COM 2)
9 Microprocesseur 2 18 Ventilateur arrière
Chapitre 2. Installation des périphériques en option 19
