Lenovo ThinkServer TD350 Product Guide

Locations of key components and connectors
The TD350 is available either with 3.5-inch hot-swap drive bays or 2.5-inch hot-swap drive bays or 3.5-inch

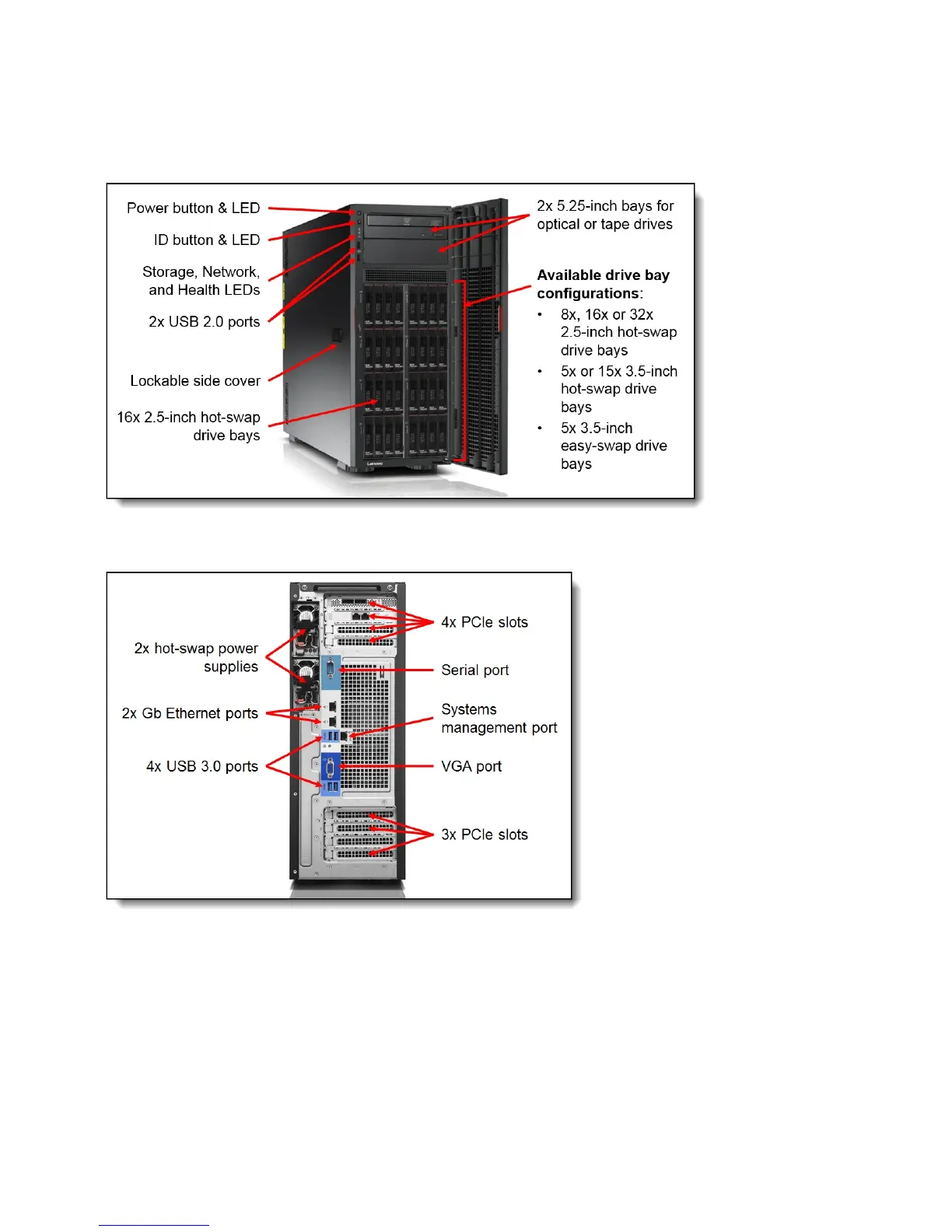

easy-swap drive bays. The following figure shows the front of the server.
Figure 2. Front view of the ThinkServer TD350 (16x 2.5-inch drive-bay model)
The following figure shows the rear of the TD350 server.
Figure 3. Rear view of the ThinkServer TD350
The following figure shows the inside of the TD350 server.
Lenovo ThinkServer TD350 (E5-2600 v4) 4

Lenovo ThinkServer TD350 Specifications

General

RAID Support	RAID 0, 1, 10, 5, 50, 6, 60
Chipset	Intel C612
Memory Type	DDR4 ECC RDIMM/LRDIMM
Maximum Memory	1.5TB
Processor	Intel Xeon E5-2600 v3/v4 series
Memory	Up to 1TB DDR4 ECC RDIMM/LRDIMM
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
Power Supply	550W, 750W, or 1100W
Network	2x 1Gb Ethernet ports
Form Factor	Tower
CPU Type	Intel Xeon E5-2600 v4 series
Memory Slots	24 DIMM slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
