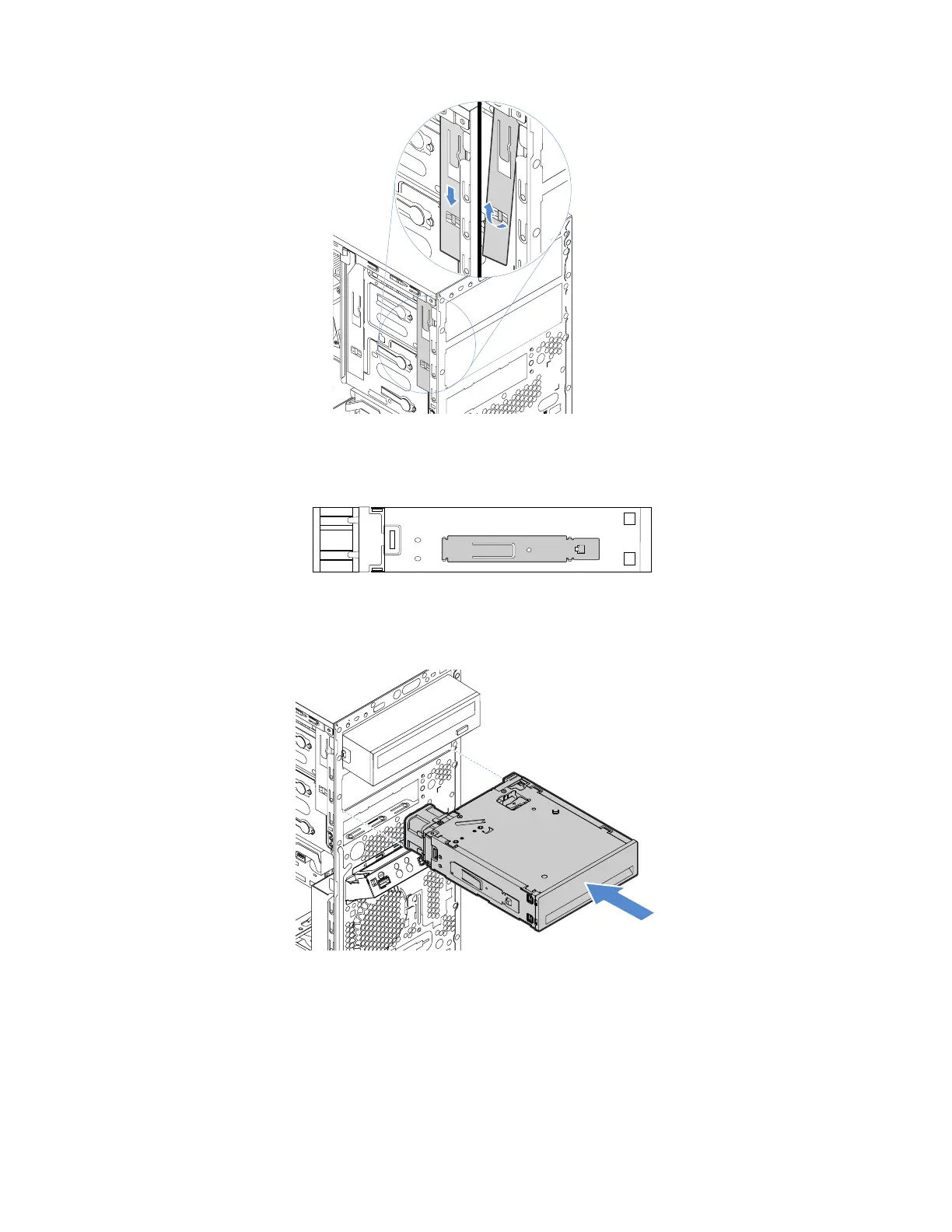

Figure 44. Removing the retainer
7. Install the retainer on the side of the 5.25-inch convertor kit.
Figure 45. Installing the retainer
8. Slide the 5.25-inch convertor kit into the drive bay until it snaps into position.
Figure 46. Installing the convertor kit into the drive bay
9. Connect cables to the drive and convertor kit.
62
ThinkServer TS150 User Guide and Hardware Maintenance Manual
