Notes:

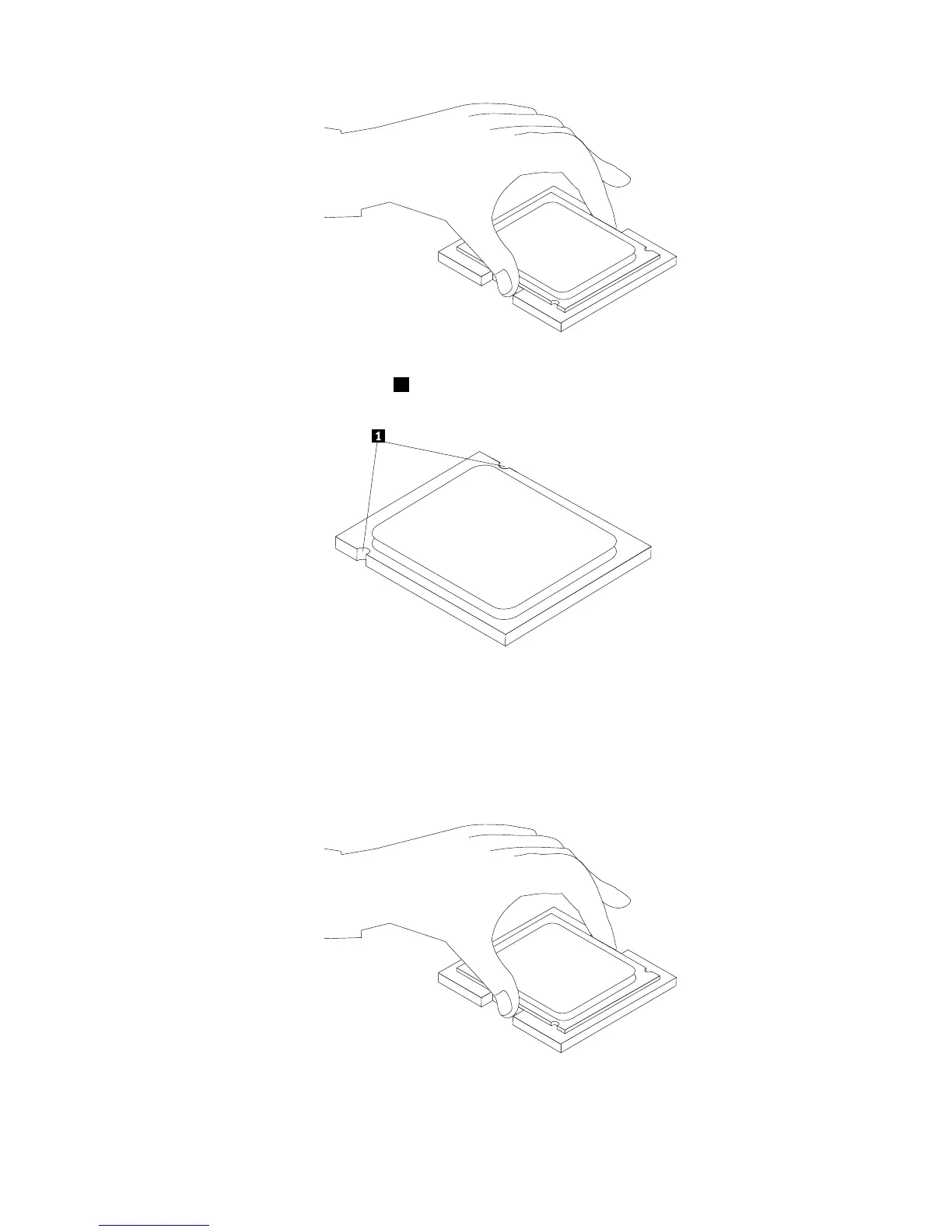

a.Notetheorientationofthenotches1onthemicroprocessor.Thisisimportantwhenreinstalling
themicroprocessoronthenewsystemboard.
b.Donotdropanythingontothemicroprocessorsocketwhileitisexposed.Thesocketpinsmustbe
keptascleanaspossible.
9.Holdingthenewmicroprocessorwithyourngers,positionthenewmicroprocessorsothatthenotches
onthenewmicroprocessorarealignedwiththetabsinthemicroprocessorsocket.
Important:Toavoiddamagingthemicroprocessorcontacts,donottiltthemicroprocessorwhen
installingitintothesocket.
10.Lowerthemicroprocessorstraightdownintothemicroprocessorsocketofthesystemboard.
11.Closethemicroprocessorretainerandclampitwiththesmallhandle.
12.Reinstalltheheatsinkandfanassembly.See“Replacingtheheatsinkandfanassembly”onpage90.
94ThinkStationHardwareMaintenanceManual
