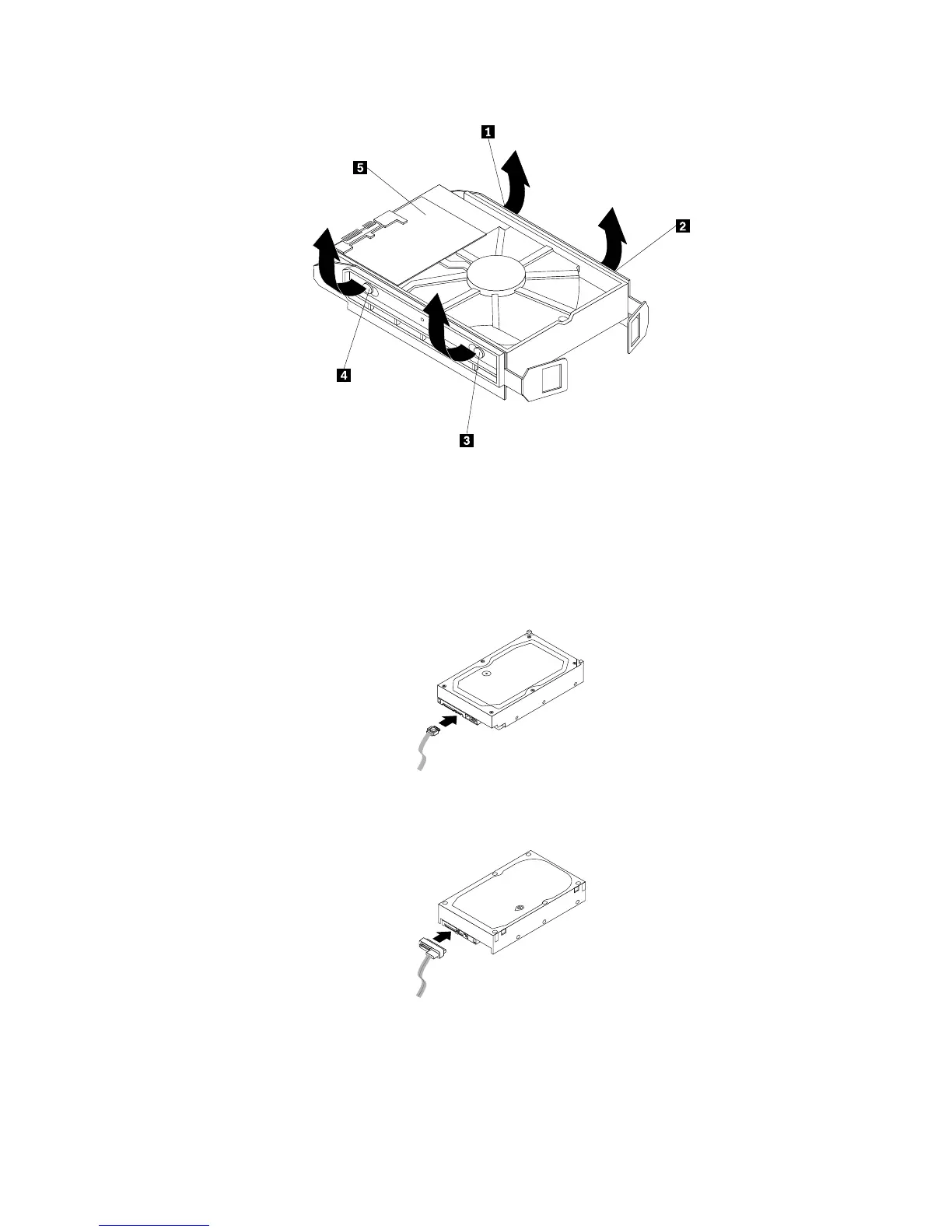

Figure18.Installinganewharddiskdriveintothebracket
7.Connectoneendofthesignalcablethatcomeswiththenewharddiskdrivetotherearofthenew
harddiskdrive.
Note:ThesignalcablewillbedifferentdependingonwhetheryouareinstallingaSATAharddisk
driveoraSASharddiskdrive.
Figure19.ConnectingthesignalcabletoaSATAharddiskdrive
Figure20.ConnectingthesignalcabletoaSASharddiskdrive
8.Slidethenewharddiskdrivewiththebracketandthesignalcableintotheharddiskdrivebayuntil
itsnapsintoposition.
Chapter9.ReplacingFRUs85
