Lenovo ThinkSystem SR250 V3 - 2.5-Inch Hot-Swap Drives Model

4 Front I/O module
For more information about the front I/O module, see
“Front I/O module” on page 24.
5 3.5-inch hot-swap drive bays
Install 3.5-inch hot-swap drives to these bays. See “Install a hot-swap drive” in ThinkSystem SR250 V3 User
Guide or ThinkSystem SR250 V3 Hardware Maintenance Guide.
6 Rack release latches
Press on the latch on both sides to disengage the server from the rack and slide it out.
2.5-inch hot-swap drives model
The front view of 2.5-inch hot-swap drives model.
Note: Depending on the configuration, your server might be slightly different from the image.

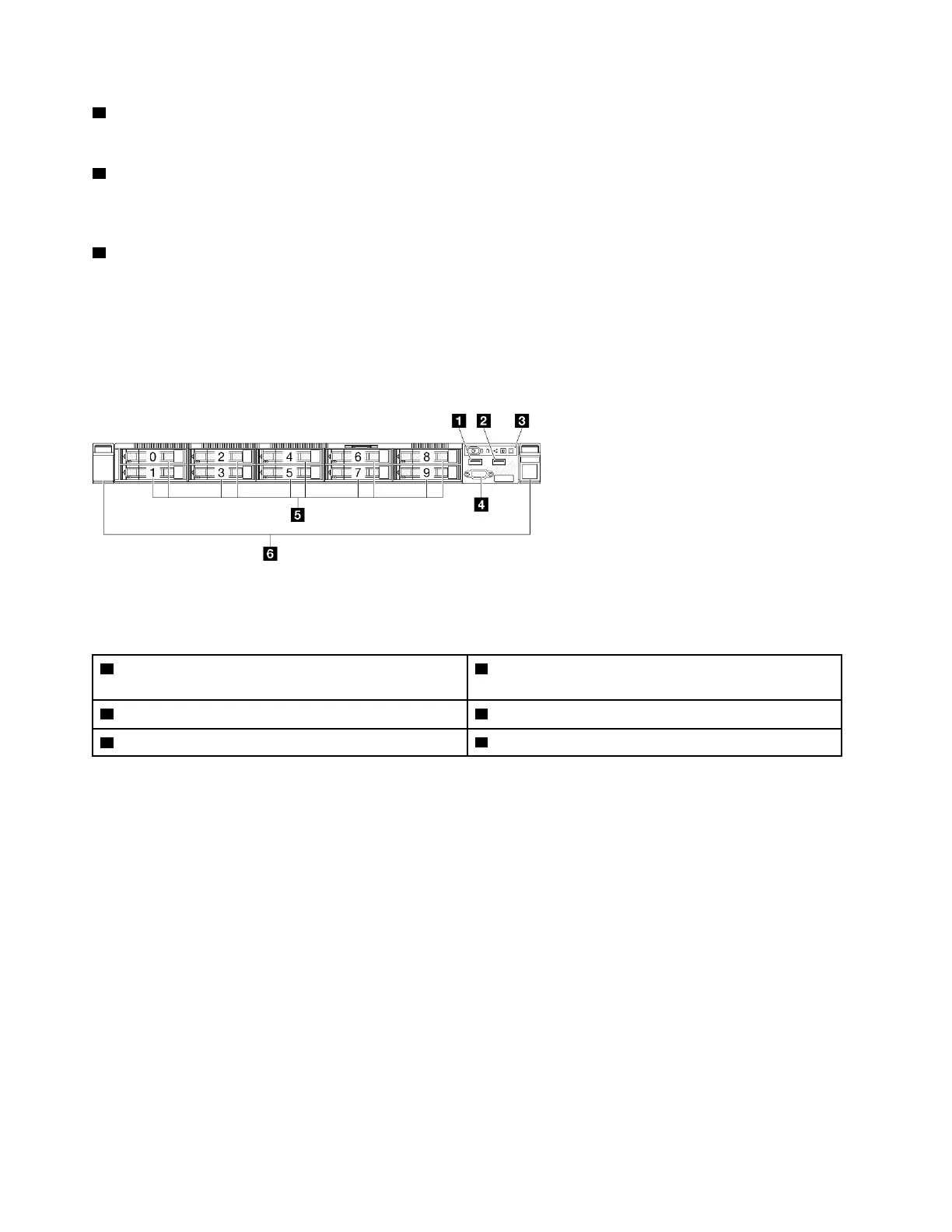

Figure 4. 2.5-inch hot-swap drives model front view
Note: The last two drive bays (8-9) may not be supported if only the eight-bay backplane is installed.
1 USB 2.0 connector with Lenovo XClarity Controller
management
4 VGA connector (optional)
2 USB 3.2 Gen 1 (5 Gbps) connector
5 2.5-inch hot-swap drive bays
3 Front I/O module
6 Rack release latches
