Lenovo V510z User Manual

Replacing FRUs 51
Replacing the integrated microphone
Attention
Do not open your computer or attempt any repairs before reading the Important
Product Information Guide.
1
Remove the computer stand. For details, see Replacing the monitor stand or Replacing the UltraFlex II
Stand.
2
Remove the computer cover. For details, see Removing the computer cover.
3
Remove the optical drive. For details, see Replacing the optical drive.
4
Remove the VESA mount bracket. For details, see Replacing the VESA mount bracket.
5
Remove the middle frame. For details, see Replacing the middle frame.
6
Remove the system board shield. For details, see Replacing the system board shield.
7
Replace the internal speakers. For details, see Replacing the internal speakers.
8
Disconnect the integrated microphone cable from the microphone.
9

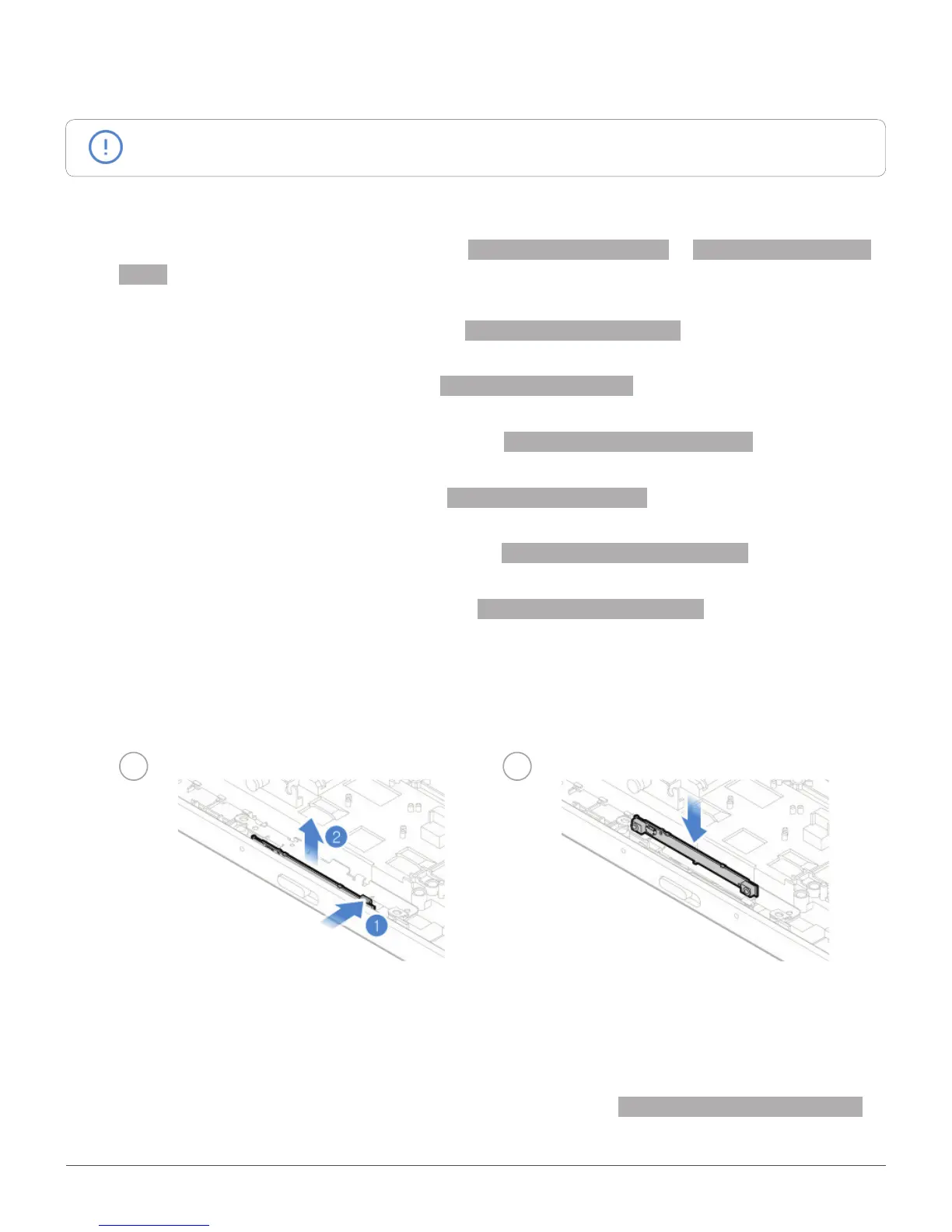

Replace the integrated microphone.
1 2
10
Connect the integrated microphone cable to the new microphone.
11
Reinstall the removed parts and computer cover. For details, see Completing the parts replacement.

Lenovo V510z Specifications

General

Operating System	Windows 10 Pro
Display	1920 x 1080
RAM	DDR4
Storage	1TB HDD
Graphics	Intel HD Graphics
Ports	USB 3.0, USB 2.0, HDMI, Audio jacks
Optical Drive	DVD-RW
Webcam	720p
Audio	Stereo speakers
Wireless	Wi-Fi 802.11ac, Bluetooth 4.0
Weight	6 kg
