© HAAG-STREIT AG, 3098 Koeniz, Switzerland – HS-Doc. no. 1500.7220055.04100 – 10. Edition / 2015 – 06
Alternating current
HS reference number
Serial number
Housing protection
Trademark of the manufacturer
HAAG-STREIT AG
2. Introduction
2.1 Basic construction
The system is divided into two parts: one concerned with examination (LS 900) and
the other with control (Notebook, PC). The examination part communicates via a
USB connection with the external PC. The LS 900 is operated using the "EyeSuite"
software installed on the PC. Integral, automatic error recognition for measurements
guarantees reliable examination results.

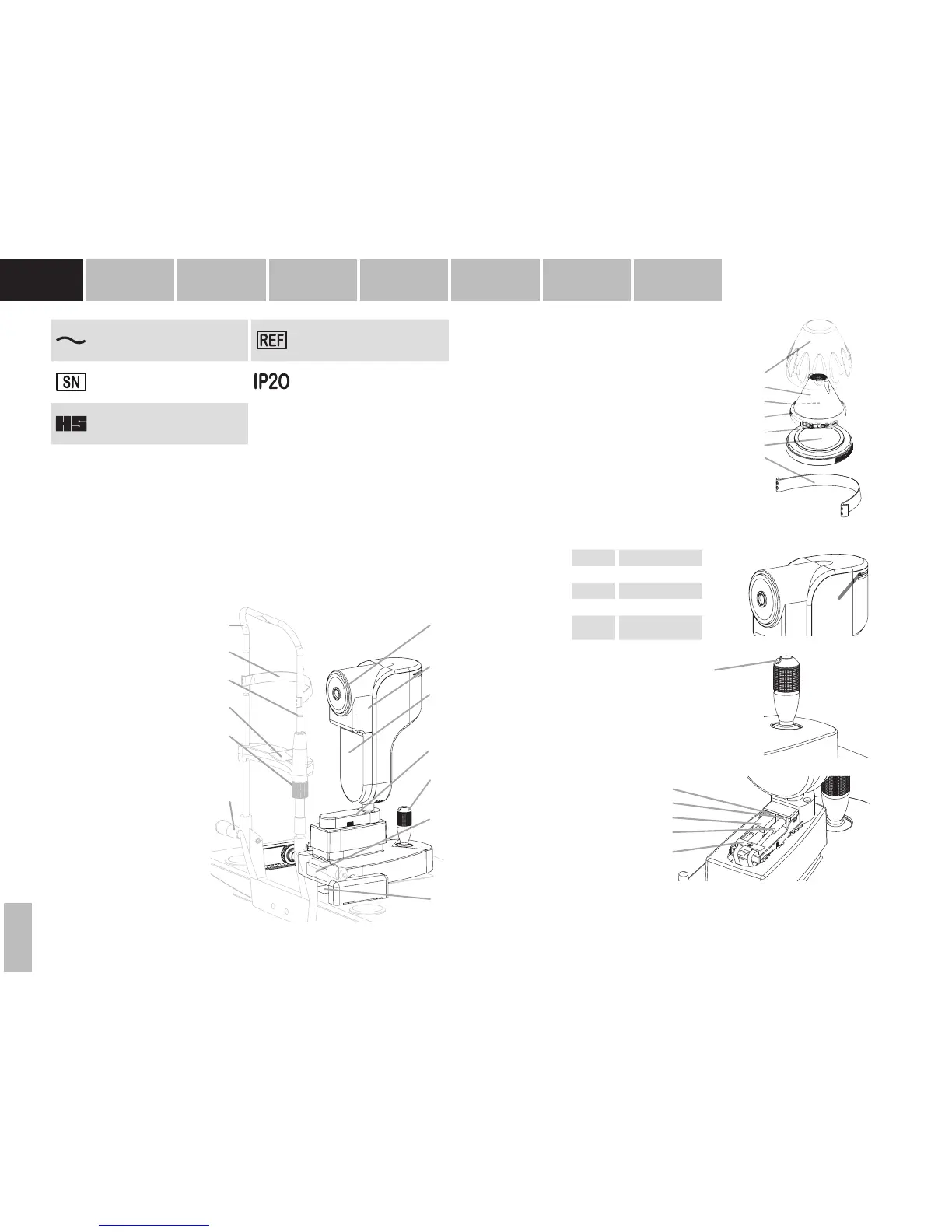

2.2 Examination components (LS 900)
Overview
8
1
2
3
4
5
7
9
10
11
12
13
6
1. Front ring
2. Housing
3. Service cover
4. Cable cover
5. Control lever
6. Type plate
7. Side identication sticker
Head rest (option)
8. Head rest
9. Headband
10. Mark for optimum eye
height
11. Chin rest
12. Chin rest height adjust‑
ment
13. Hand grips for patient
T-Cone (option)
14. Dust cover for storage packaging
15. T‑Cone topography add‑on
16. “Top” – shows which side of the T‑Cone is up.
17. Locking/release clip
18. Type plate
19. Base plate for storage packaging
20. Short forehead band with four Phillips screws
14
15
16
17
18
19
20
Device state
The device state indicator allows device monitoring without PC software:
21. State indicator
Dark Off
21
Orange Standby
Green On
Blue Light source on
RED ERROR
Control lever
The joystick is used to position the device in
relation to the patient’s eye.
22. Trigger
22
Connections
23. USB‑device connection
24. DC‑device connection
25. USB 2.0 cable
26. DC cable
27. Cable tension compensator
23
24
25
26
27
