Lenze 490 Series

~aqe: 17

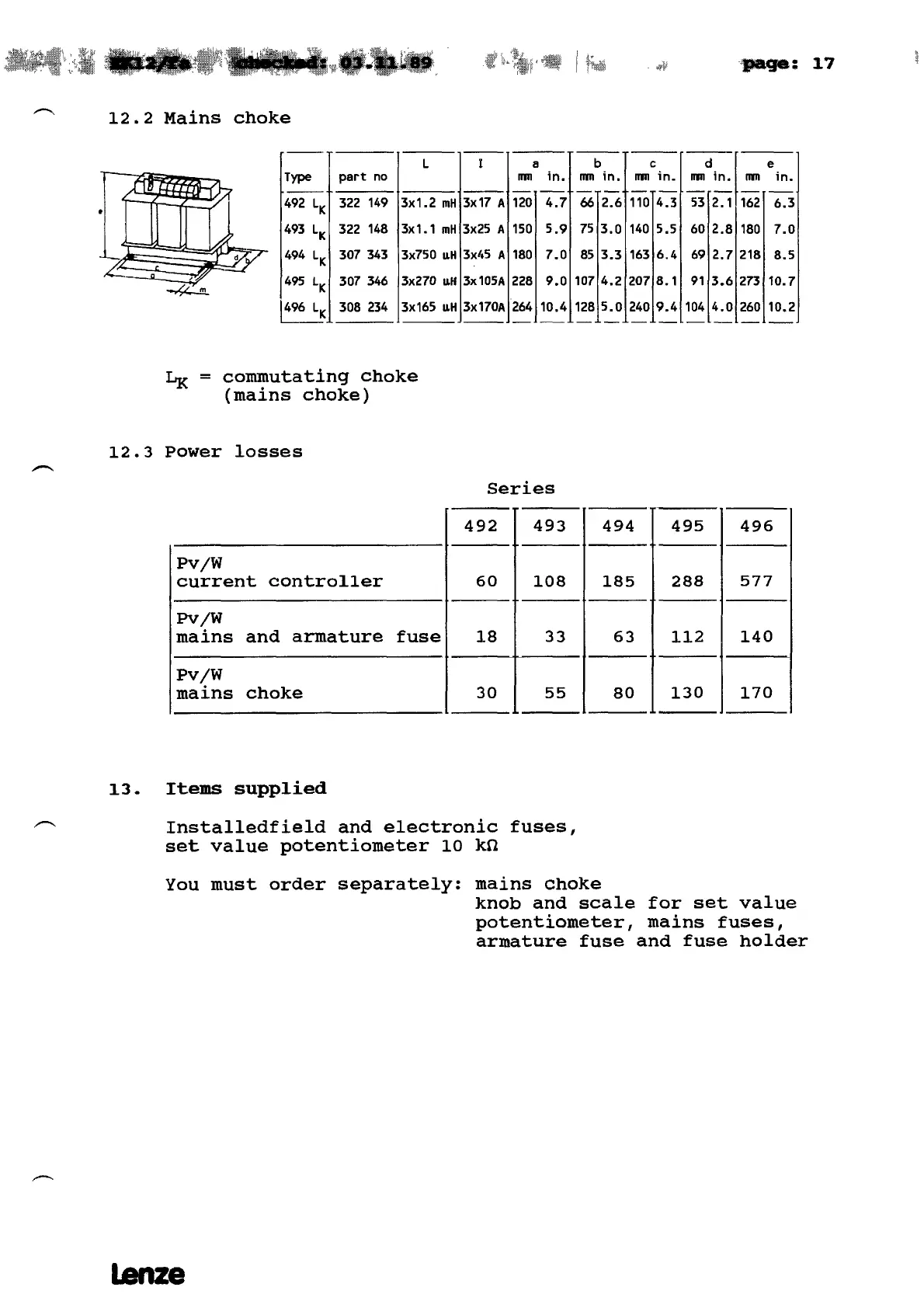

12.2 Mains choke
Type part no
L 1 m
mli in.
b c
mii in. imi in.
i
imi in.
m
mii in.
492 LK 322 149 3x1.2 mM 3x17 A 120 4.7 66 2.6 110 4.3 53 2.1 162 6.3
493 322 148
3x1.1 mM 3x25 A 150 5.9 753.01405.5 602.8 180 7.0
494 LK 307 343 3x750 LII 3x45 A 180 7.0 85 3.3 163 6.4 69 2.7 218 8.5
495 L
K
307 346 3x270 LII 3x105A 228 9.0 107 4.2 207 8.1 91 3.6 273 10.7
496 L
K
308 234 3x165 LH 3x170A 264 10.4 128 5.0 240 9.4 104 4.0 260 10.2
LK = commutating choke
(mains choke)
12.3 Power losses
Series
492 493 494 495 496
Pv/W
current
controller 60 108 185 288 577
Pv/W
mains and armature fuse 18 33 63 112 140
Pv/W
mains choke 30 55 80 130 170
13. Iteus supplied
Installedfield and electronic fuses,
set value potentiometer 10 kfi
You must order separately: mains choke
knob and scale for set value
potentiometer, mains fuses,
armature fuse and fuse holder
Lanze
