ET 46/fa
checked: 19.04.89 MB 33.0831 GB
page: 16

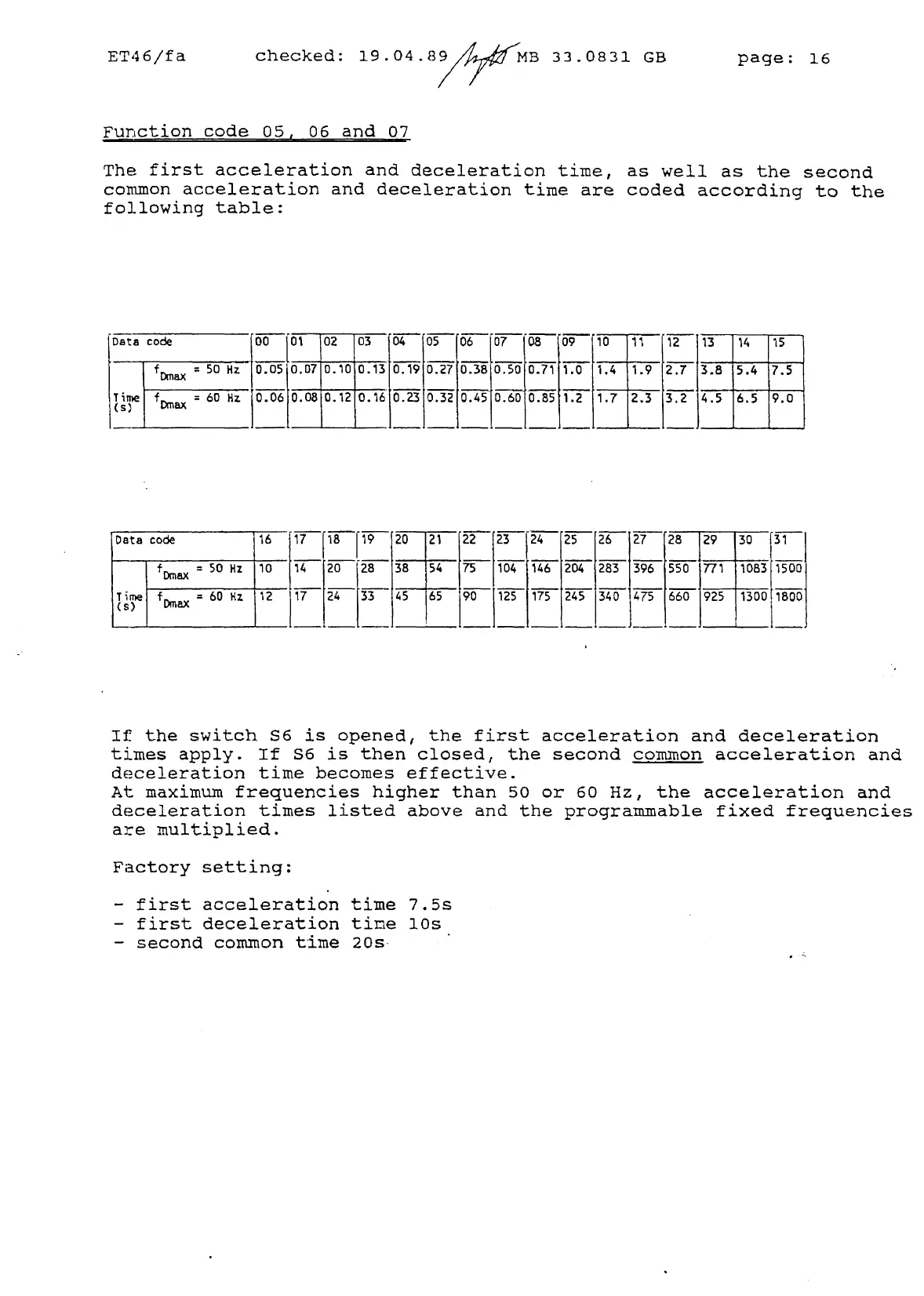

Furction code 051 06 and 07
The tirst acceleration and deceleraticn tiiue, as well as the second
cominon acceleration and deceleration tue are coded according to the
tollowing table:
lt the switch SG is opened, the first acceleration and deceleration
times apply. lt S6 is then clcsed, the second coiamon acceleration and
deceleration tue becomes eftective.
At maximum trequencies higher than 50 or 60 Hz, the acceleration and
deceleration times listed above and the programmable fixed ffreguencies
are multiplied.
Factory setting:
- first acceleration tue 7.5s
— first deceleration time lOs
— second conunori time 20s
