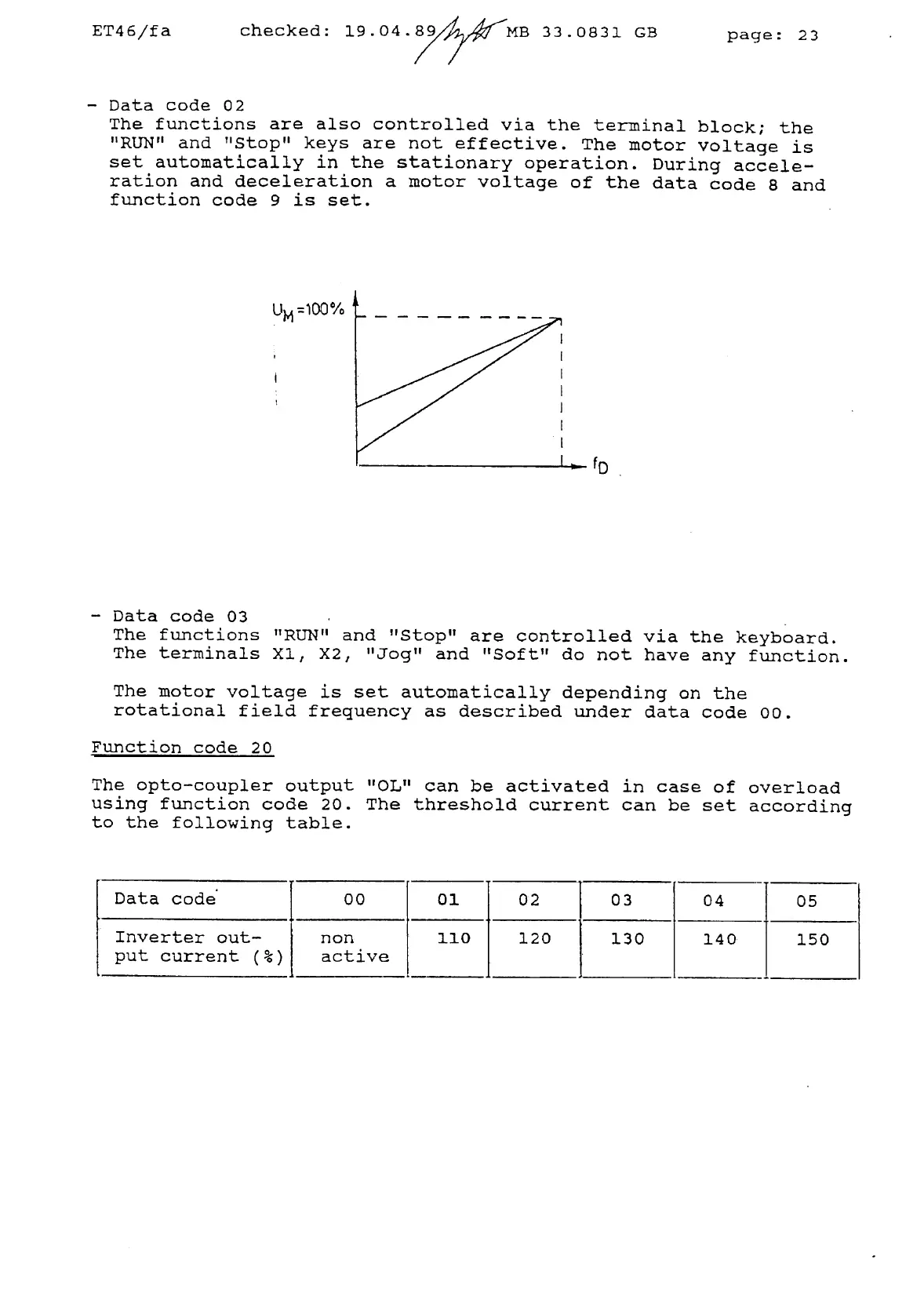

checked: 19.04.89 MB 33.0831 GB
page: 23
- Data code 02
The tunctions are also controlled via the terminal block; the
„PJJN“ and „Stop“ keys are not etteative. The motor voltage is
set automatically in the stationary operation. During accele -
ration and deceleration a motor voltage ot the data code 8 and
tunction code 9 is set.
UM =100%
fD
- Data code 03
The funotions „RUN“ and „Stop“ are controlled via the keyboard.
The terminals Xl, X2, „Jog“ and „Satt“ da not have any fuziction.
The motor voltage is set automatically depending on the
rotational tield trequency as described under data code 00.
Function code 20
The opto—coupler output „012‘ can be activated in case ot overload
using tunction code 20. The threshold current can be set according
ta the following table.
Data code 00 01 02 03 04 -T 05
Inverter aut— non 110 120 130 140 150
1_put current (%) active
ET4 6/ta
