6.2 Connection plan
Use with 9400
Standard mounting Mounting variant
L1
1 (BK)
2 (BK)
3 (BK)
PE (GN/YE)
L1
L1
L2 L2
L2
L3 L3
L3
+
+
+
L3
PE
L1
L2
F1...F3
X301 X111
X112
X302
E94AZPxxxxx
K1
T1 T2
E94AZMPxxxx
L1
1 (BK)
2 (BK)
3 (BK)
PE (GN/YE)
L1
L1
L2
L2
L2
L3
L3
L3
+
+
+
L3
PE
L1
L2
F1...F3
X301
X111
X112
X302
E94AZPxxxxx
K1
T1 T2
E94AZMPxxxx
SSP94NF105 SSP94NF105

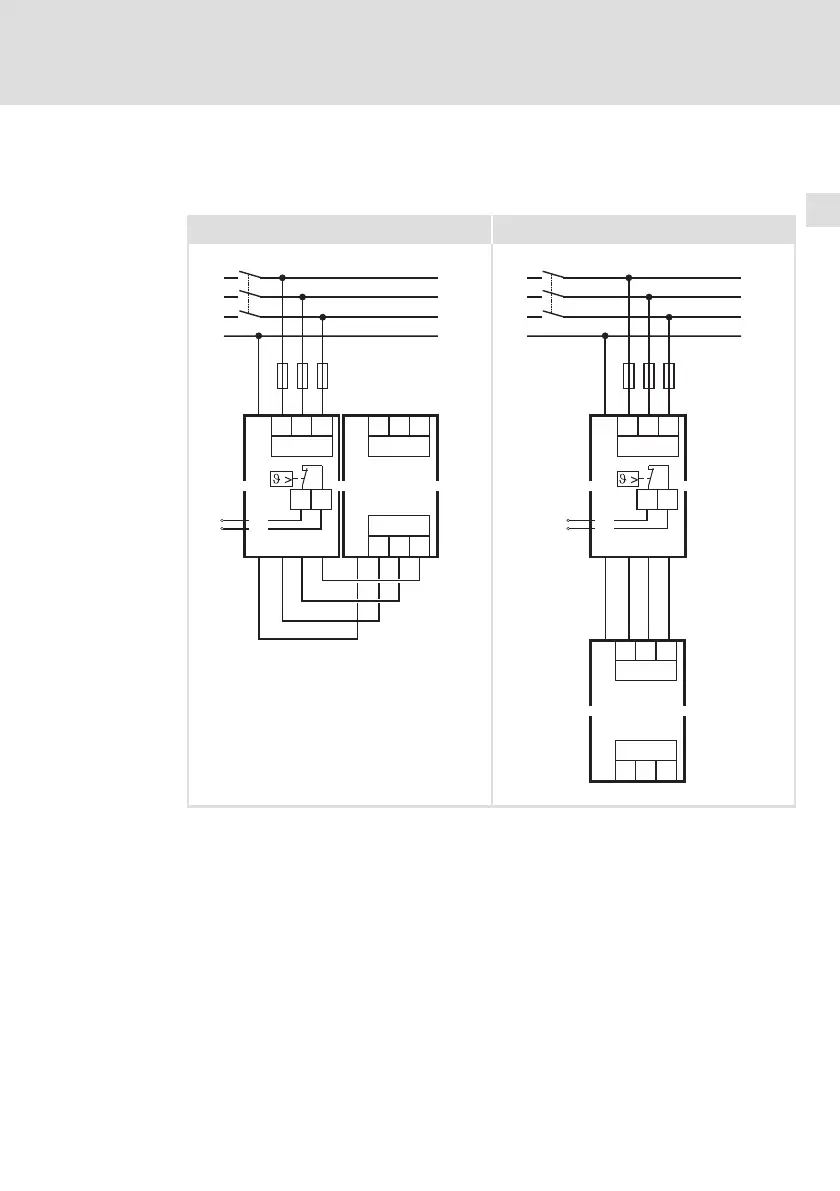

Fig. 6−1 Connection concept
E94AZMPxxxx Mains filter
E94AZPxxxxx Installation backplane for 9400 DC power supply module
F1 ... F3 Fuses
K1 Mains contactor
