Electrical installation
Connection data
6

55
EDK94AZMP DE/EN/FR/ES/IT 8.0

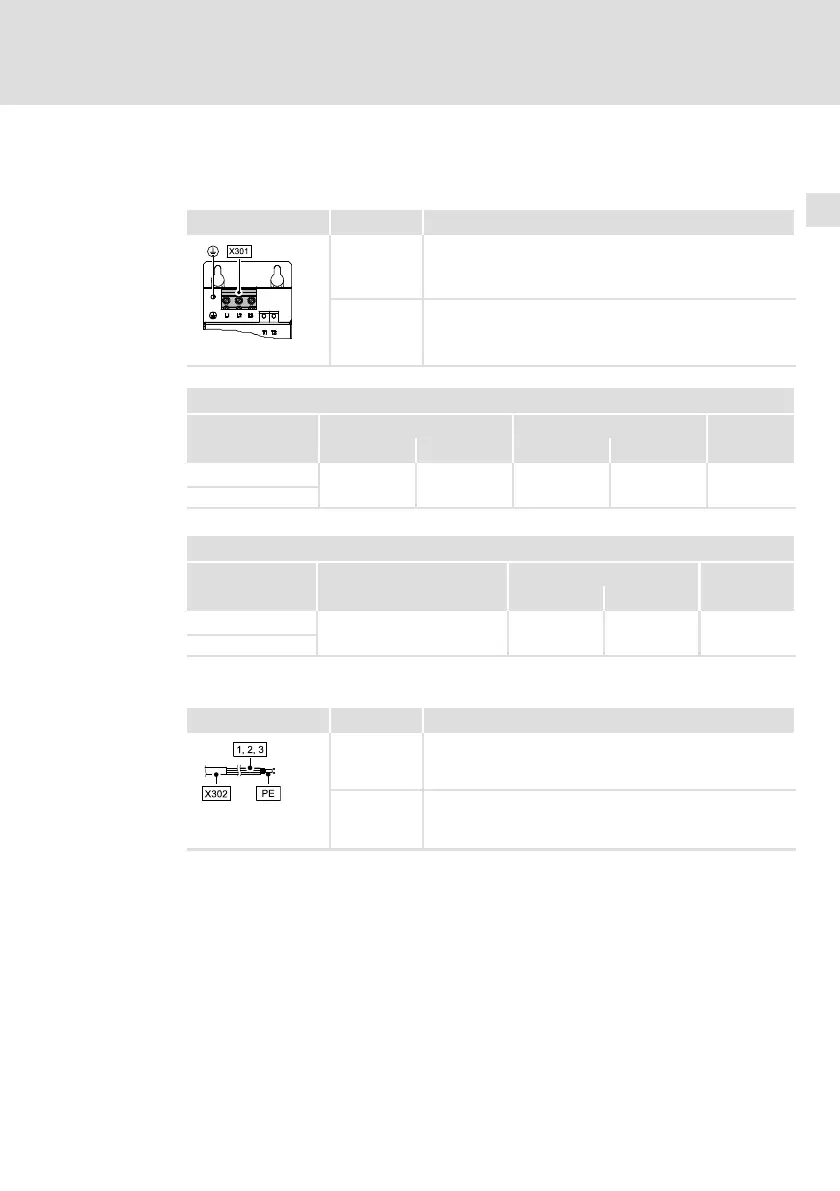

6.3 Connection data
Mains
Terminal X301 Labelling Description
L1
L2
L3
Connection of the mains phases L1, L2, L3
 Connection for the supply−side PE conductor with M5 ring
cable lug
SSP94NF106
Terminal data
Max. conductor cross−section Tightening torque

[mm
2
] [AWG] [Nm] [lb−in]
E94AZxP0084
10 6 1.2 ... 1.5 10.6 ... 13.3 PH1
E94AZxP0294
PE connection data
Æ Starting torque

[mm] [Nm] [lb−in]
E94AZxP0084
M5
3 26.5 SW 8
E94AZxP0294
Standard device
Cable X302 Labelling Description
1
2
3
Filter output conductor (lead with wire end ferrule, colour
BK)
PE Output−side PE conductor (lead with M5 fork−type cable
lug, colour GN/YE)
SSP94FF007
