3 Parameter setting
3.1 Parameter setting with the XT EMZ9371BC keypad
Description
The keypad is available as an accessory. A full description of the keypad can be obtained
from the Instructions included in the keypad delivery.
Plugging in the keypad
It is possible to plug the keypad into the AIF interface or remove it during operation.
As soon as the keypad is supplied with voltage, it carries out a self−test. The keypad is ready
for operation if it is in display mode.

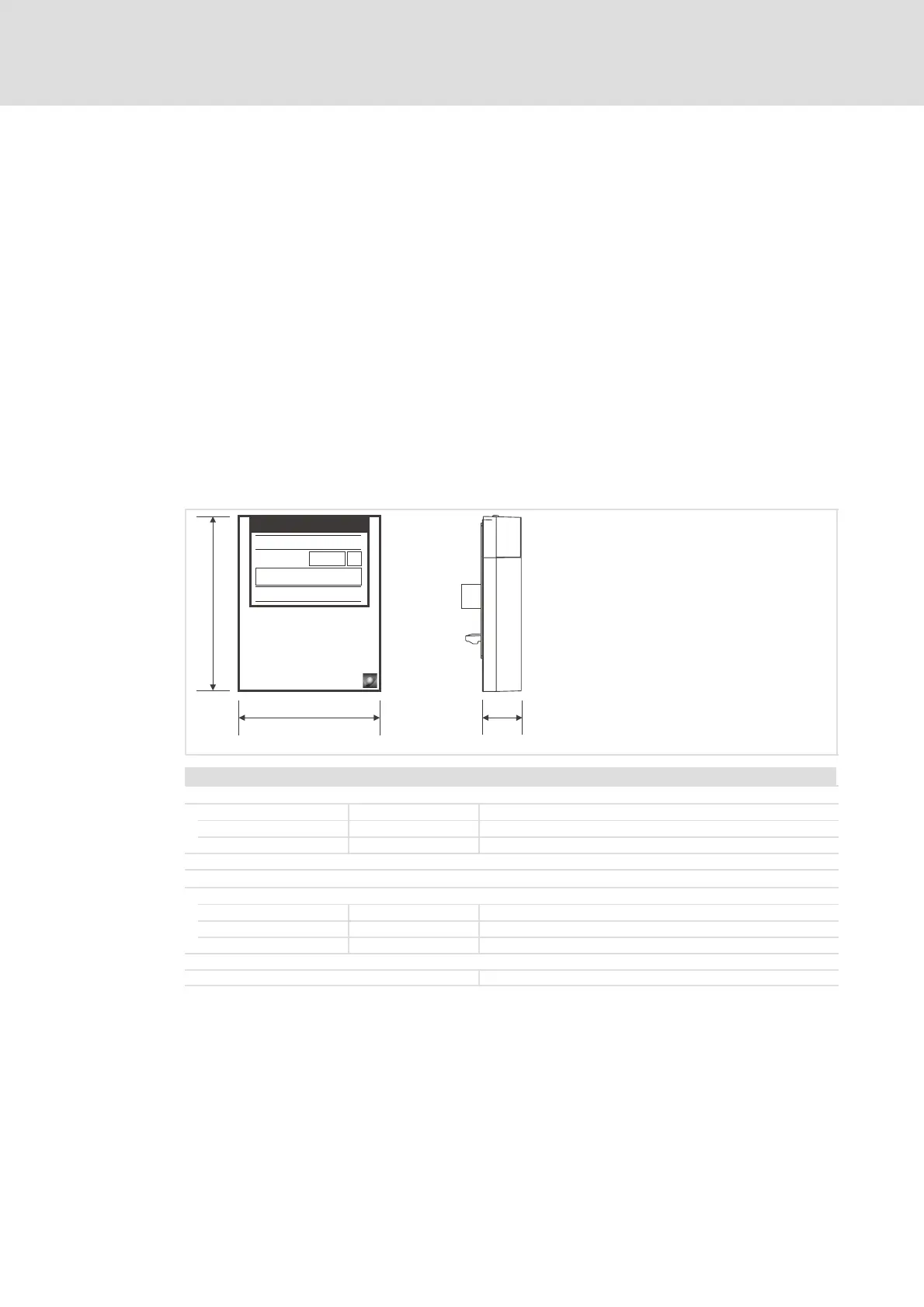

3.1.1 General data and operating conditions
YZ
y
z
T
V
S
U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
50.00_Hz
MCTRL-NOUT
0
b
ca
9371BC011
Feature Values
Dimensions
Width a 60 mm
Height b 73.5 mm
Depth c 15 mm
Environmental conditions
Climate
Storage IEC/EN 60721−3−1 1K3 (−25 ... +60 °C)
Transport IEC/EN 60721−3−2 2K3 (−25 ... +70 °C)
Operation IEC/EN 60721−3−3 3K3 (−10 ... +60 °C)
Enclosure IP 20
