Parameter setting
Parameter setting with the XT EMZ9371BC keypad
Display elements and function keys
3
19
EDKVF93−03 EN 2.0
3.1.3 Display elements and function keys
YZ
y
z
T
V
S
U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
50.00_Hz
MCTRL-NOUT
0
1
3
4
5
6
7
8
2
9371BC002

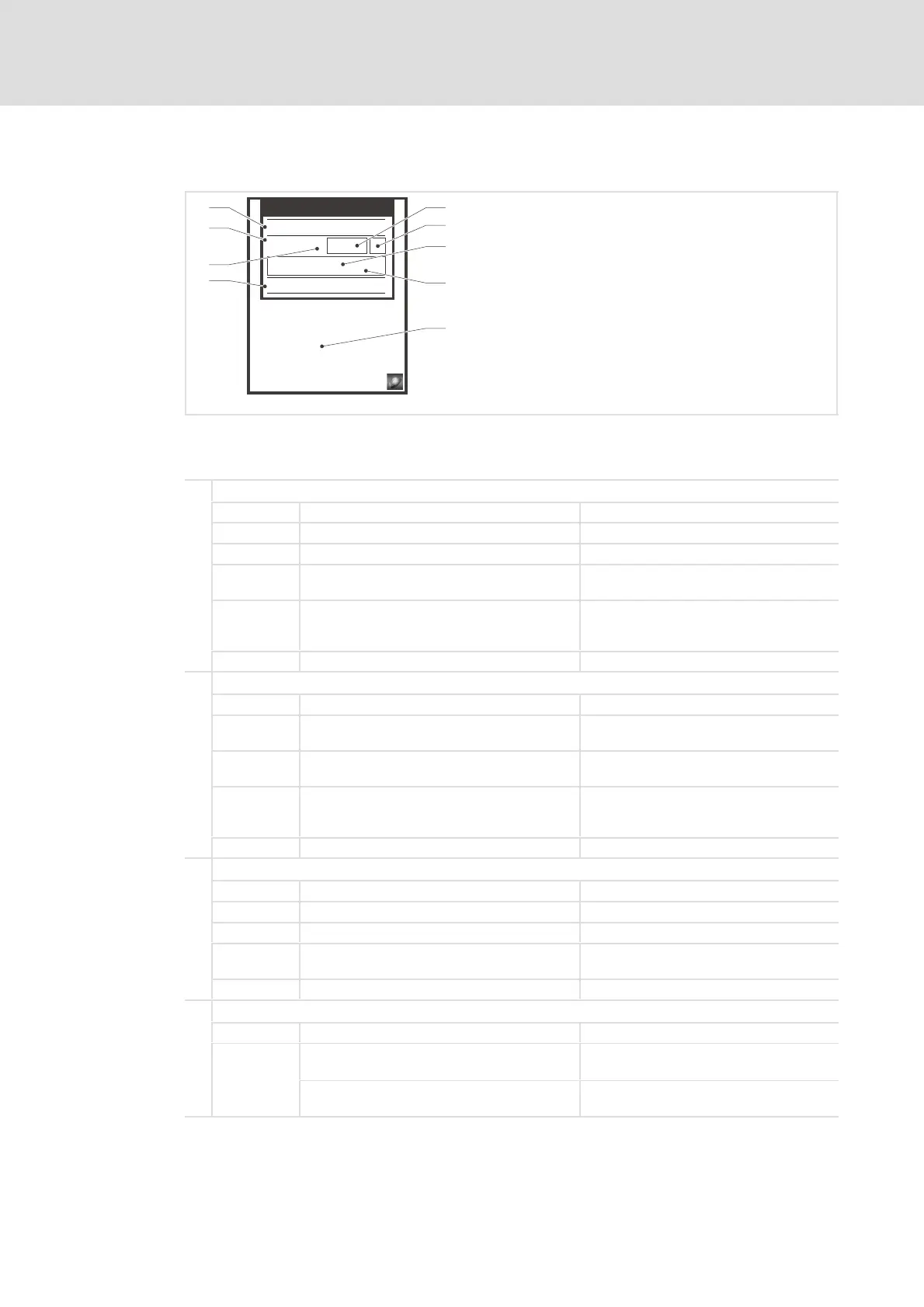

Fig. 3−2 Display elements and function keys of the XT EMZ9371BC keypad
Displays
Status displays of standard device
Display Meaning Explanation
Ready for operation
Pulse inhibit is active Power outputs are inhibited
The set current limit is exceeded in motor or
generator mode
Speed controller 1 in the limitation Drive is torque−controlled
(Only active for operation with standard
devices of the 9300 series)
Active fault
Acceptance of the parameters
Display Meaning Explanation
Parameter is accepted immediately Standard device operates immediately with
the new parameter value
SHPRG Parameter must be acknowledged with
Standard device operates with the new
parameter value after being acknowledged
SHPRG Parameter must be acknowledged in case of
controller inhibit
Standard device operates with the new
parameter value after the controller is
enabled again
None Display parameter Change is not possible
Active level
Display Meaning Explanation
Menu Menu level is active Select main menu and submenus
Code Code level is active Select codes and subcodes
Para Parameter level is active Change parameters in the codes or
subcodes
None Operating level is active Display operating parameters
Short text
Display Meaning Explanation
alphanumeric
al
Contents of the menus, meaning of the codes
and parameters
In the operating level display of C0004 in % and
the active fault
