Configuration
7-5
 SHB9300CRV EN 2.0
7.3.2 Elements of a function block
FCNT1-CLKUP
C1102/1
C1102/2
FCNT1-LOAD
C1102/3
C1104/3
FCNT1-OUT
FCNT1
C1101/1
C1101/2
C1103/2
C1103/1
C1104/2
FCNT1-LD-VAL
FCNT1-CLKDWN
C1104/1
C1100
CTRL
FCNT1-CMP-VAL
FCNT1-EQUAL
Input symbol
Configuration code
Display code
Function
Input name Name of the function block
Output name
Output symbol
Parameterization code

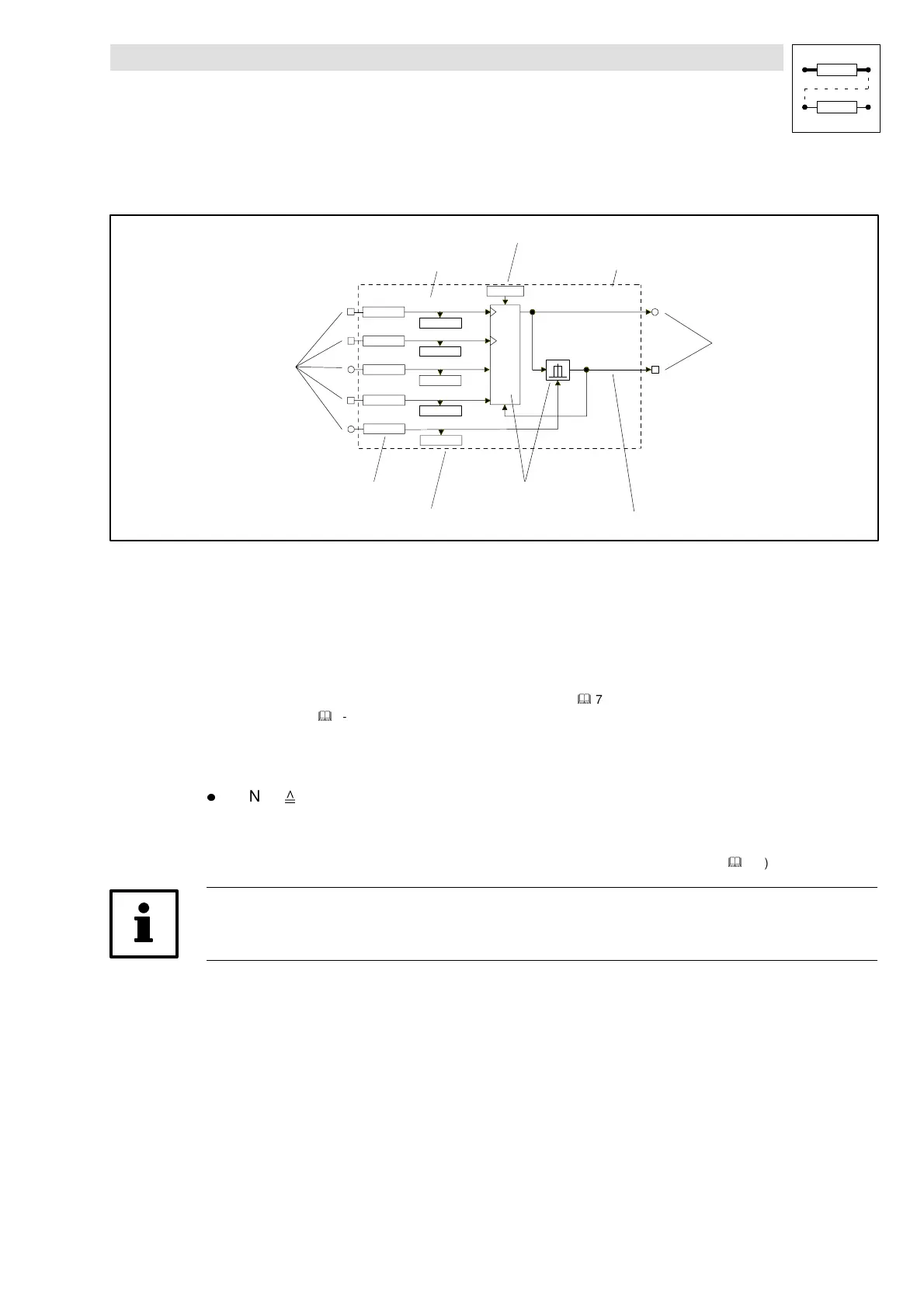

Fig. 7-1 Structure of a FB using the example of FCNT1
Name of the FB
Identifies the FB unambigeously. FBs with the same function are distinguished by a number behind
their names.
Every FB is defined by a selection number. The input of the selection number into the processing
table is always required for the calculation of the FB.
(
&
7-14) . The selection numbers are listed in
selection list 5.
(
&
7-323) .
Example:
(FCNT1, see Fig. 7-1)
l
FCNT1 selection number 6400 (selection list 5).
Input symbol
Designates the signal type which is allowed as signal source for this input.
(
&
7-4)
Note!
You cannot configure inputs which are not linked.
Input name
Consists of the FB name and a designation. Inputs with the same function are distinguished by a
number behind their designations.
Configuration code
Configures the input with a signal source (e.g. terminal signal, control code, output of a FB, ¡).
Inputs with identical codes are distinguished by the subcode. The subcode is attached to the code
(Cxxxx/1).These codes are configured by their subcodes.
It is not possible to connect an input with several signal sources.
