Function block library
7-32
SHB9300CRV EN 2.0

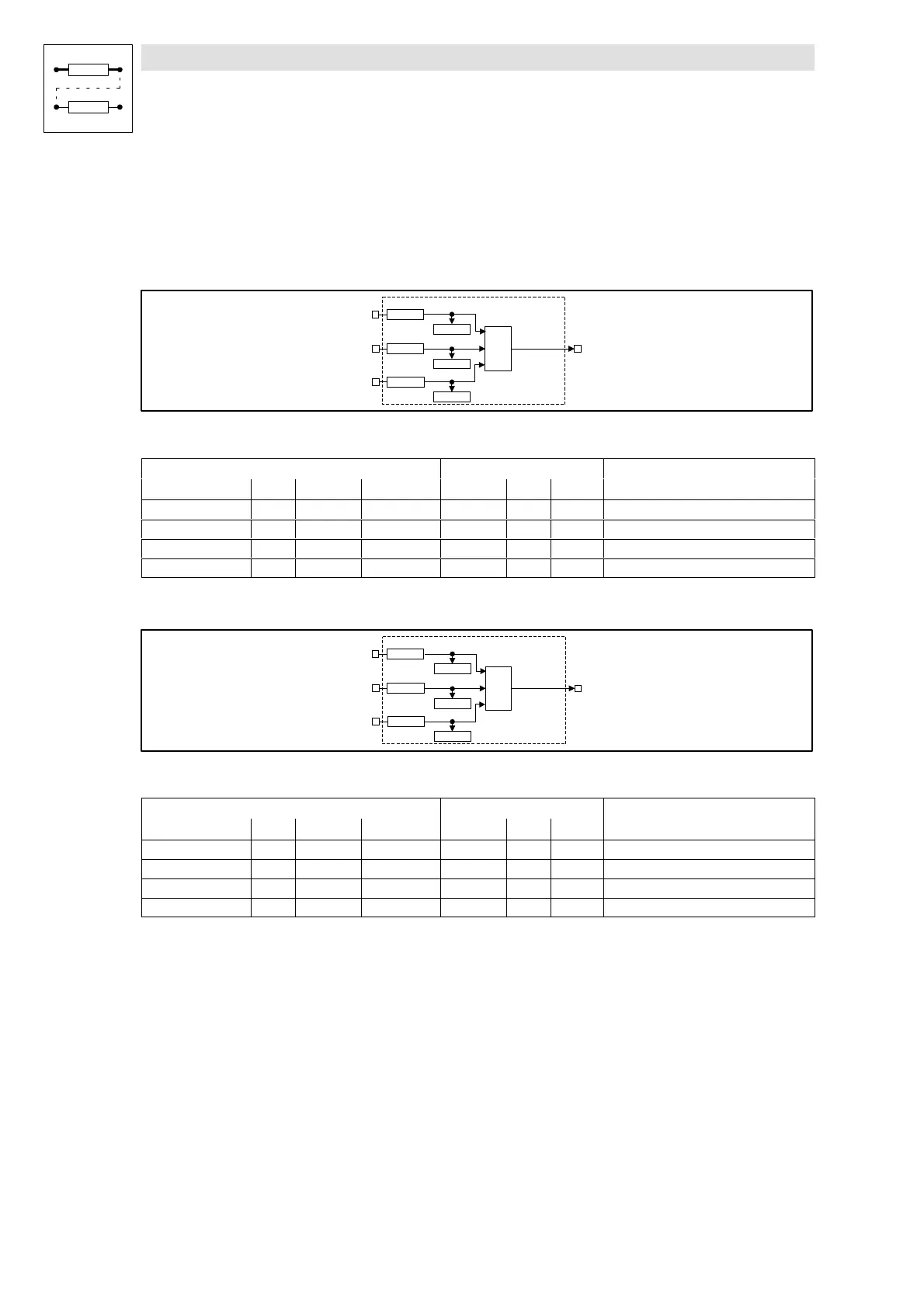

7.6.6 AND link (AND)
Purpose
This function is used to link digital signals as an AND function. These operations can be used for the
control of functions or the generation of status information.
AND1
&
AND1-IN1
AND1-IN2
AND1-IN3
AND1-OUT
C0821/1
C0821/2
C0821/3
C0820/1
C0820/2
C0820/3
Fig. 7-14 AND function (AND1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AND1-IN1 d C0821/1 bin C0820/1 2 1000 -
AND1-IN2 d C0821/2 bin C0820/2 2 1000 -
AND1-IN3 d C0821/3 bin C0820/3 2 1000 -
AND1-OUT d - - - - - -
AND2
&
AND2-IN1
AND2-IN2
AND2-IN3
AND2-OUT
C0823/1
C0823/2
C0823/3
C0822/1
C0822/2
C0822/3
Fig. 7-15 AND function (AND2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AND2-IN1 d C0823/1 bin C0822/1 2 1000 -
AND2-IN2 d C0823/2 bin C0822/2 2 1000 -
AND2-IN3 d C0823/3 bin C0822/3 2 1000 -
AND2-OUT d - - - - - -
