Lenze EVS9323-EK User Manual

Function block library
7-31

SHB9300CRV EN 2.0
Function
l The analog input value is added to the value at input AINx-OFFSET.
l The result of the addition is limited to ±200%.
l The limited value is multiplied with the value which is applied at input AINx-GAIN.
l The signal is then limited to ±200%.
l The signal is output at AINx-OUT.
AIN-OFFSET
AIN-GAIN
IN
AIN-OUT

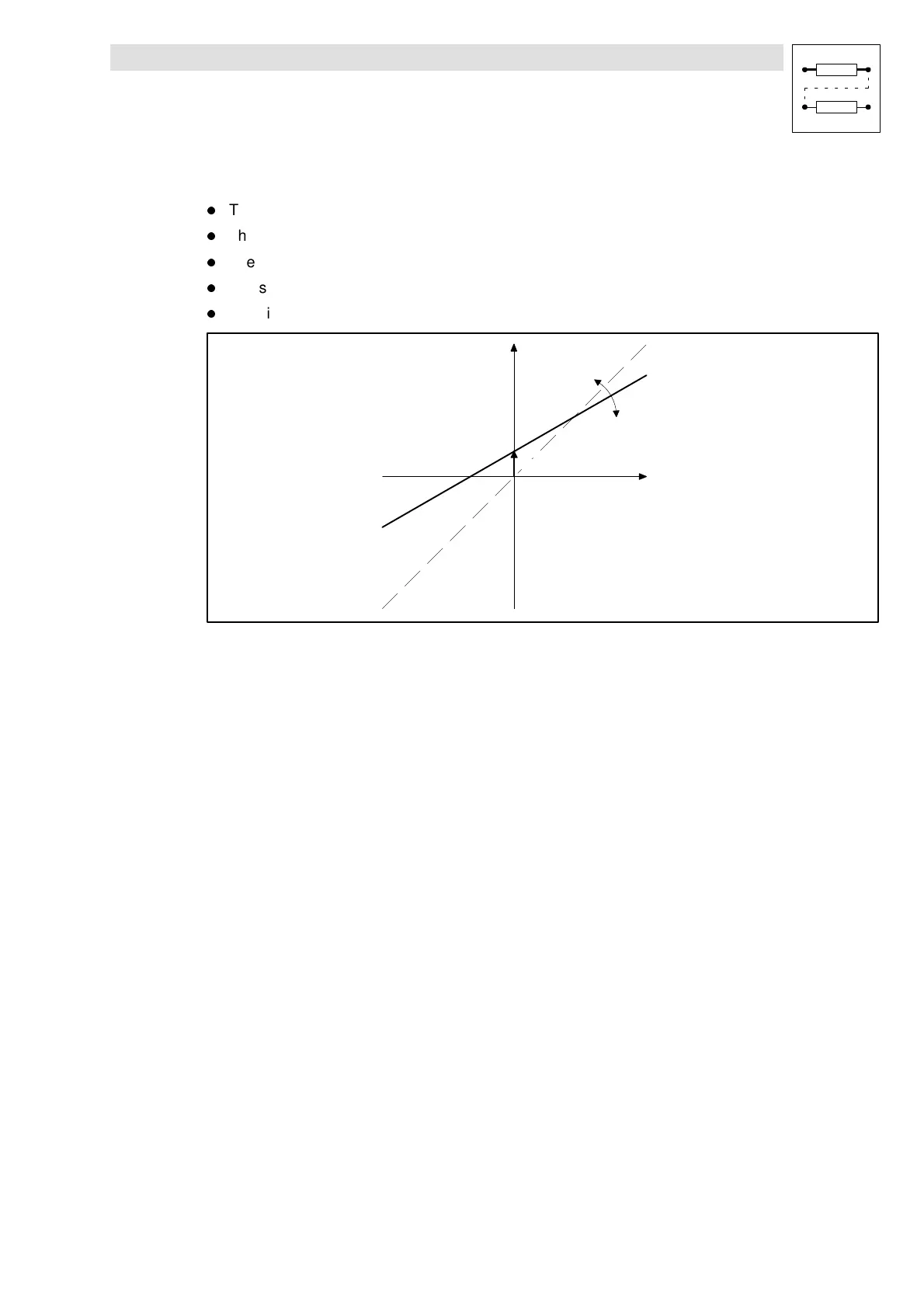

Fig. 7-13 Offset and gain of the analog input
