Configuration
7-7
 SHB9300CRV EN 2.0
AND1
&
AND1-IN1
AND1-IN2
AND1-IN3
AND1-OUT
C0821/1
C0821/2
C0821/3
C0820/1
C0820/2
C0820/3
OR1
|1
OR1-IN1
OR1-IN2
OR1-IN3
OR1-OUT
C0831/1
C0831/2
C0831/3
C0830/1
C0830/2
C0830/3
NOT1
1
NOT1-OUT
NOT1-IN
C0841
NOT2
1
NOT2-OUT
NOT2-IN
C0843
C0840
C0842
t
0
DIGDEL1-IN
C0724
DIGDEL1-OUT
DIGDEL1
C0721
C0720
C0723
Connection not possible
Possible connection
X

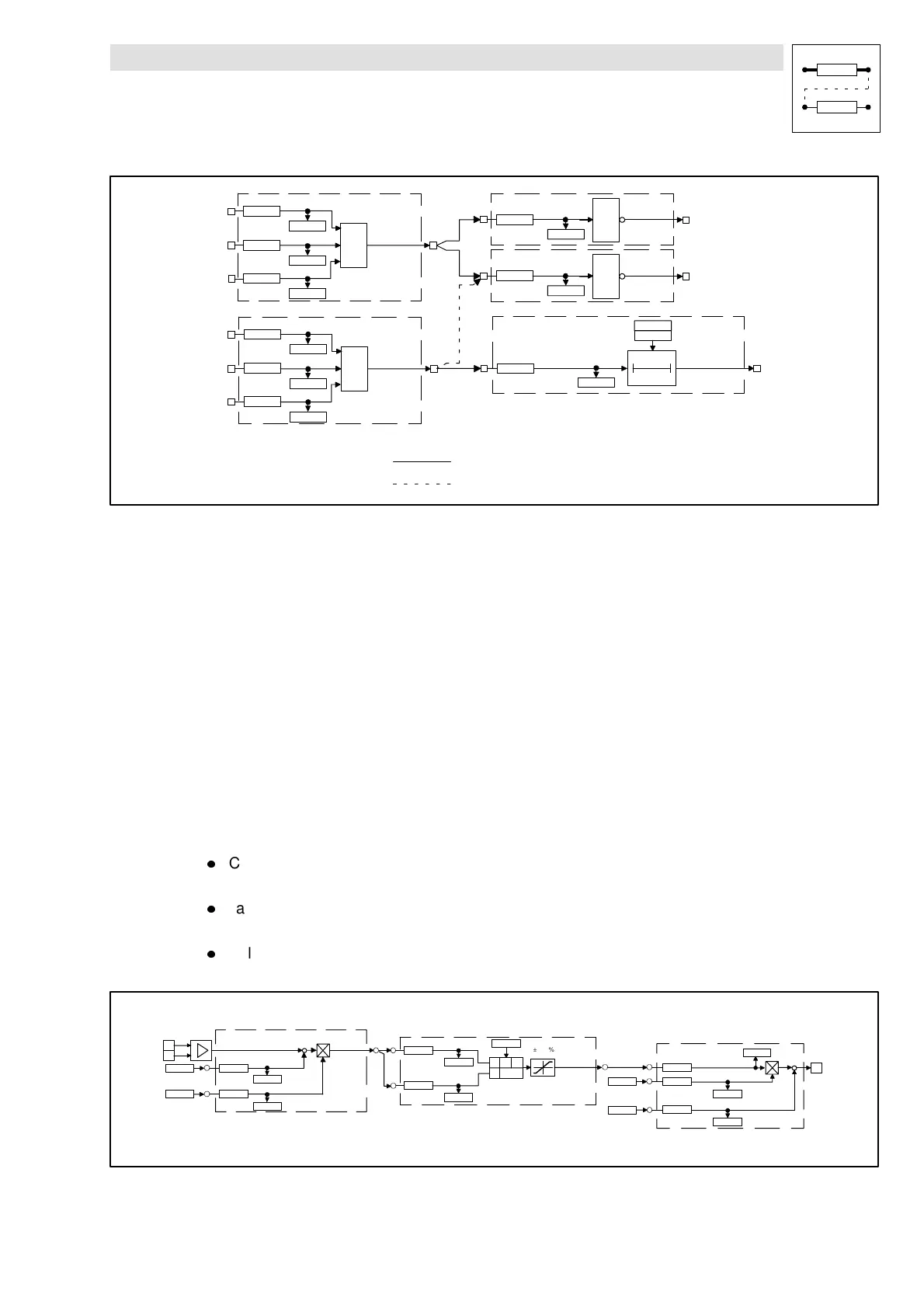

Fig. 7-2 Correct connection of function blocks
Basic procedure
1. Select the configuration code of the function block input which is to be changed.
2. Determine the source of the input signal for the selected input
(e.g. from the output of another function block).
3. The function block input is assigned via a menu which contains only those signal sources
which are of the same type as the function block input to be assigned.
4. Select and confirm the signal source.
5. Remove undesired connections, if any.
– For this, select the corresponding signal assignment of the input via the configuration code
(e.g. FIXED 0, FIXED 1, FIXED 0%, ...).
6. Repeat 1. to 5. until the desired configuration is set.
7. Save modified configuration in the desired parameter set.
Example
l Condition:
– Factory setting
l Task:
– Square the analog signal of X6/3, X6/4 and output to X6/62.
l Solution:
– You need the function blocks AIN2, ARIT2 and AOUT2.
+
-
*
/
x/(1-y)
C0600
x
y
ARIT2
ARIT2-OUT
C0602/1
á 200%
C0602/2
ARIT2-IN1
ARIT2-IN2
C0601/1
C0601/2
62
AOUT1
C434/1
+
+
AOUT1-IN
AOUT1-GAIN
AOUT1-OFFSET
C0434/3
C0434/2
C0431
C0433
C0432
3
4
AIN2
+
+
AIN2-OUT
AIN2-GAIN
AIN2-OFFSET
C0409/1
C0409/2
C0407
C0408
C0108/1
C0109/1
C0027/2
C0026/2
Fig. 7-3 Example of a simple configuration
