Function block library
7-24

SHB9300CRV EN 2.0

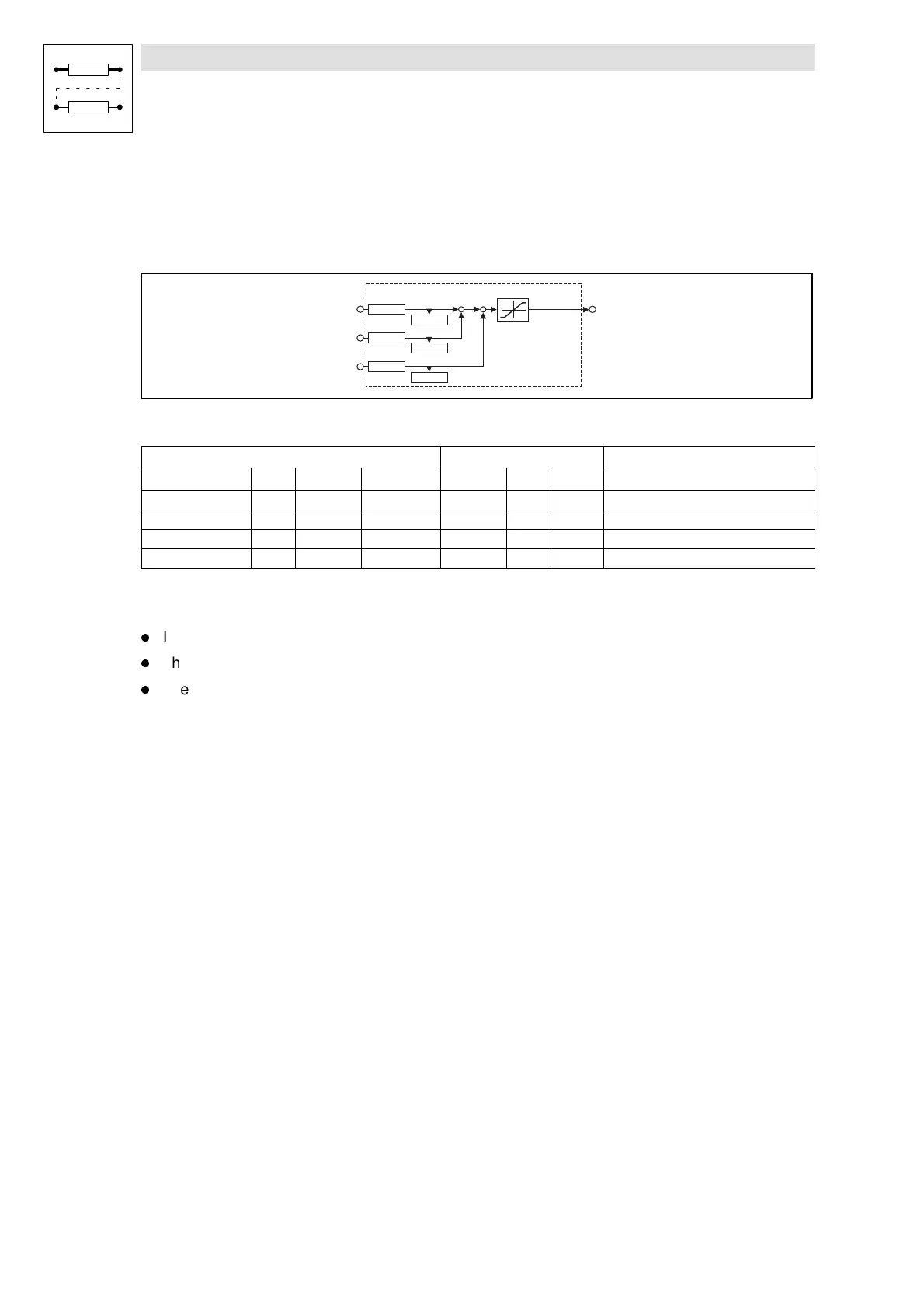

7.6.2 Addition block (ADD)
Purpose
Adds or subtracts ”analog” signals depending on the input used.
+
+
-
ADD1
ADD1-OUT
ADD1-IN1
C 0611/1
ADD1-IN2
C 0611/2
ADD1-IN3
C 0611/3
±199,99%
C 0610/1
C 0610/2
C 0610/3
Fig. 7-8 Addition block (ADD1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
ADD1-IN1 a C0611/1 dec [%] C0610/1 1 1000 Addition input
ADD1-IN2 a C0611/2 dec [%] C0610/2 1 1000 Addition input
ADD1-IN3 a C0611/3 dec [%] C0610/3 1 1000 Subtraction input
ADD1-OUT a - - - - - limited to ±199.99%
Function
l Input ADD1-IN1 is added to input ADD1-IN2.
l The input ADD-IN3 is subtracted from the calculated result.
l The result of the subtraction is then limited to
±
199.99 %.
