Function block library
7-86

SHB9300CRV EN 2.0
CONV3
CONV3
CONV3-OUT
CONV3-IN
C0953
C0952
C0950
C0951

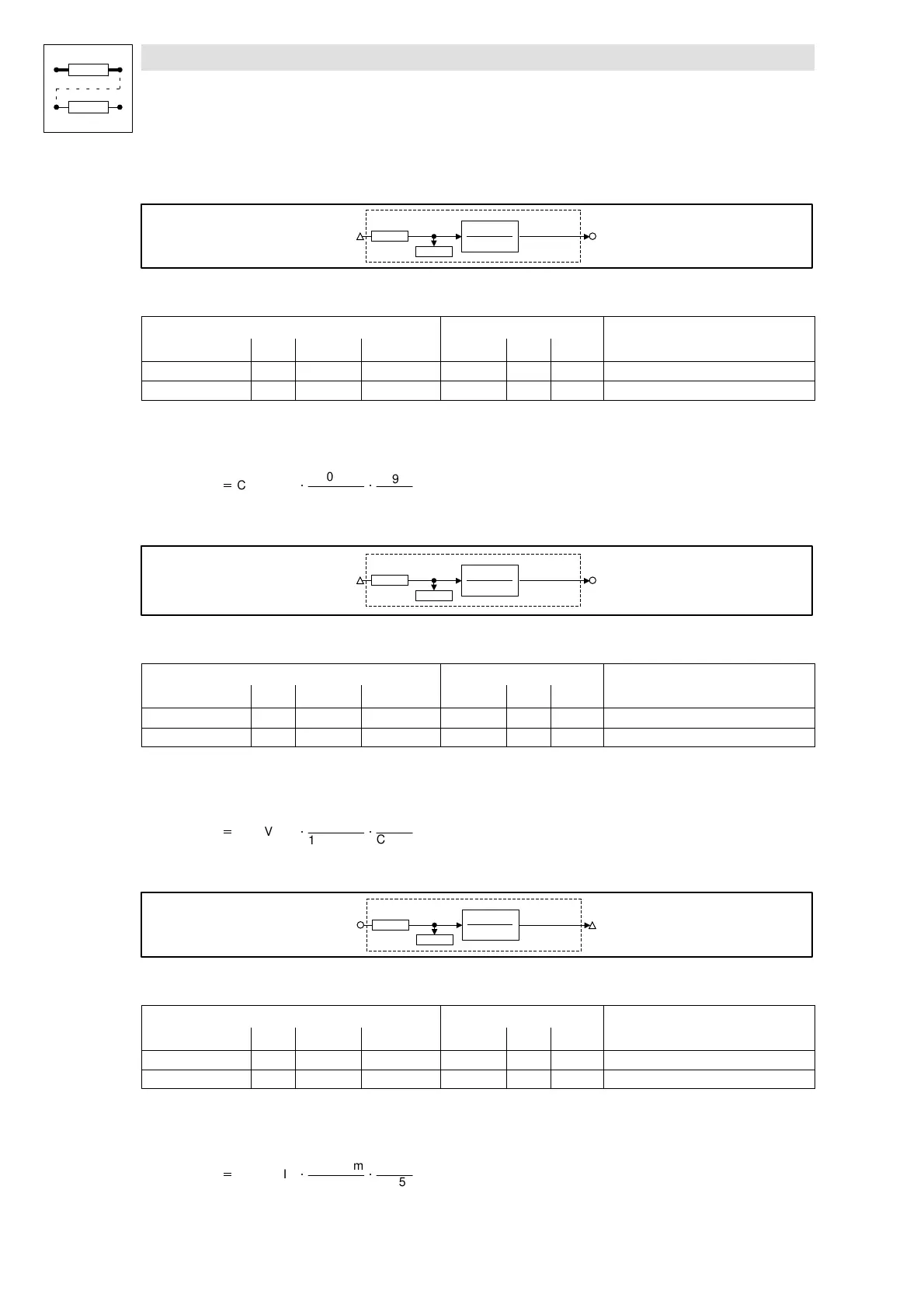

Fig. 7-59 Function block CONV3
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CONV3-IN phd C0953 dec [rpm] C0952 4 1000
CONV3-OUT a - - - - - Limited to ±199.99 %
This function block is used to convert speed signals into analog signals.
The conversion is done according to the formula:
CONV3-OUT  CONV3-IN ô
100%
15000rpm
ô
C0950
C0951
CONV4
CONV4
CONV4-OUT
CONV4-IN
C0958
C0957
C0955
C0956
Fig. 7-60 Function block CONV4
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CONV4-IN phd C0958 dec [rpm] C0957 4 1000
CONV4-OUT a - - - - - Limited to ±199.99 %
This function block is used to convert speed signals into analog signals.
The conversion is done according to the formula:
CONV4-OUT  CONV4-IN ô
100%
15000rpm
ô
C0955
C0956
CONV5
CONV5
CONV5-OUT
CONV5-IN
C0658
C0657
C0655
C0656
Fig. 7-61 Function block CONV5
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CONV5-IN a C0658 dec [%] C0657 1 1000
CONV5-OUT phd - - - - - Limited to ±29999 rpm
This function block is used to convert analog signals into speed signals.
The conversion is done according to the formula:
CONV5-OUT  CONV5-IN ô
15000rpm
100%
ô
C0655
C0656
