Function block library
7-139

SHB9300CRV EN 2.0
Function
t
t
FLIPx-D
FLIPx-CLK
t
FLIPx-OUT

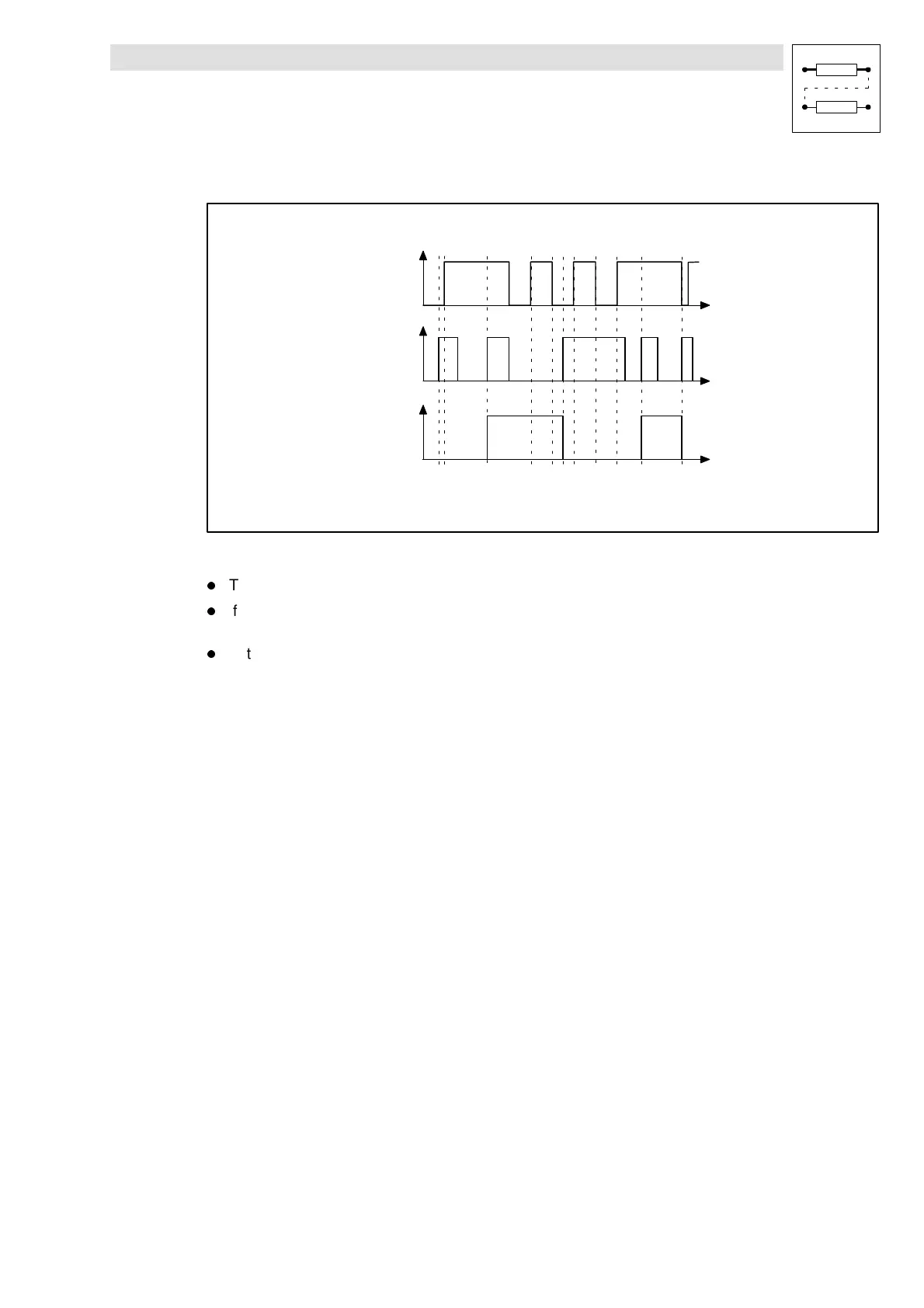

Fig. 7-106 Sequence of a flipflop
l
The input FLIPx-CLR always has priority.
l
If a HIGH level is applied at the input FLIPx-CLR, the output FLIPx-OUT is set to a LOW level
and maintained until this input is applied to a HIGH level.
l
With a LOW-HIGH edge at the input FLIPx-CLK, the level at the input FLIPx-D is switched to
the output and saved until
– another LOW-HIGH edge is applied at the input FLIPx-CLK or
– the input FLIPx-CLR is applied to a HIGH level.
