Installation
4-7
 SHB9300CRV EN 2.0
Dimensions for the types 9327-Cx and 9328-Cx
K35.0056
a
a1
g
c
c1
e
b1
d
b
L
*)
c2

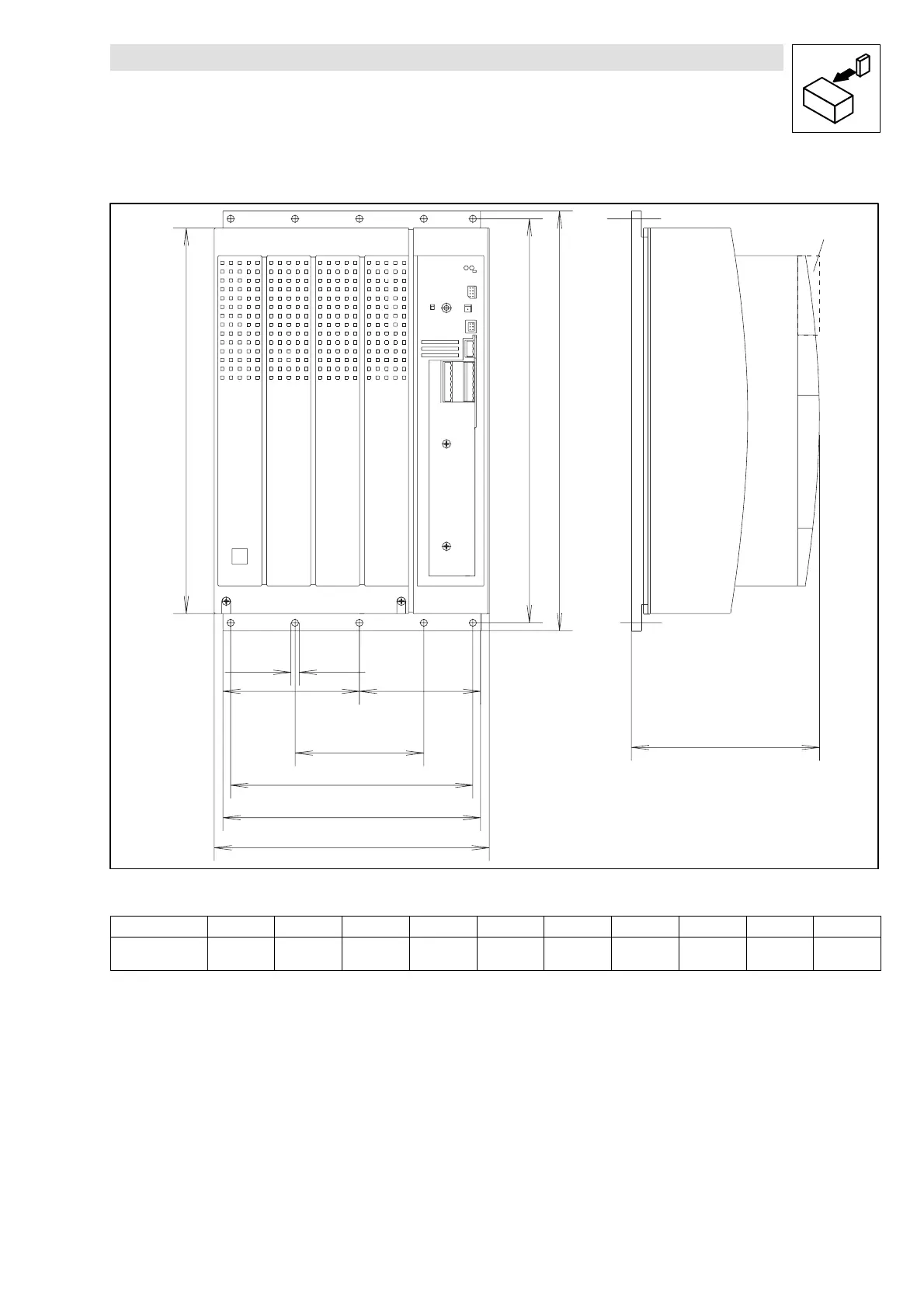

Fig. 4-5 Dimensions for the assembly in ”cold plate technique”
Type
a a1 b b1 c c1 c2 d e* g
9327-Cx
9328-Cx
234 250 381 350 110 220 117 367 171 6.5
*
When using an attachable fieldbus module:
Observe the free space required for the connection cables
All dimensions in mm
