Installation
4-16
SHB9300CRV EN 2.0
Types 9330 and 9331
T1
T2
PE
UV
W
M5 X 12
l
Strain relief by using cable binders .
l
Correct screen connection with screened cables:
– Apply motor cable screen to the screening plate using
clamp and screws M5x12
ó.
– Connect thermal contact screen at the stud PE next to the
motor connections over a large surface.
Type 9332
T1
T2
PE
U
V
W
M5 X 12
M4 X 12
l
Strain relief by using cable clamps and screws M4x12 ì.
– Additional strain relief/fixing can be achieved by using
cable binders
.
l
Correct screen connection with screened cables:
– Apply motor cable screen to the screening plate using
clamp and screws M5x12
ó.
– Connect thermal contact screen at the stud PE next to the
motor connections over a large surface.

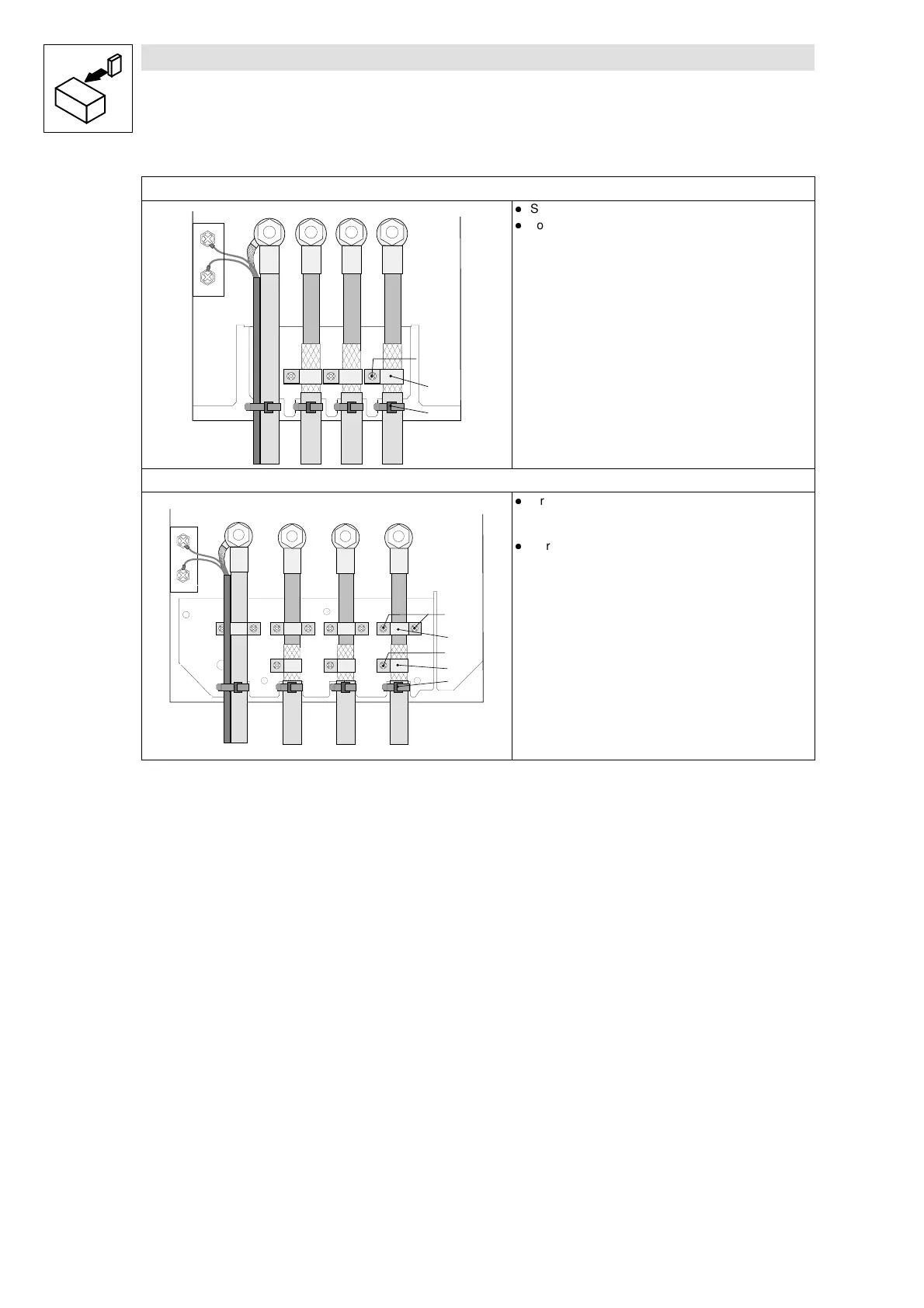

Fig. 4-8 Proposal for motor connection
