Installation
4-23
 SHB9300CRV EN 2.0

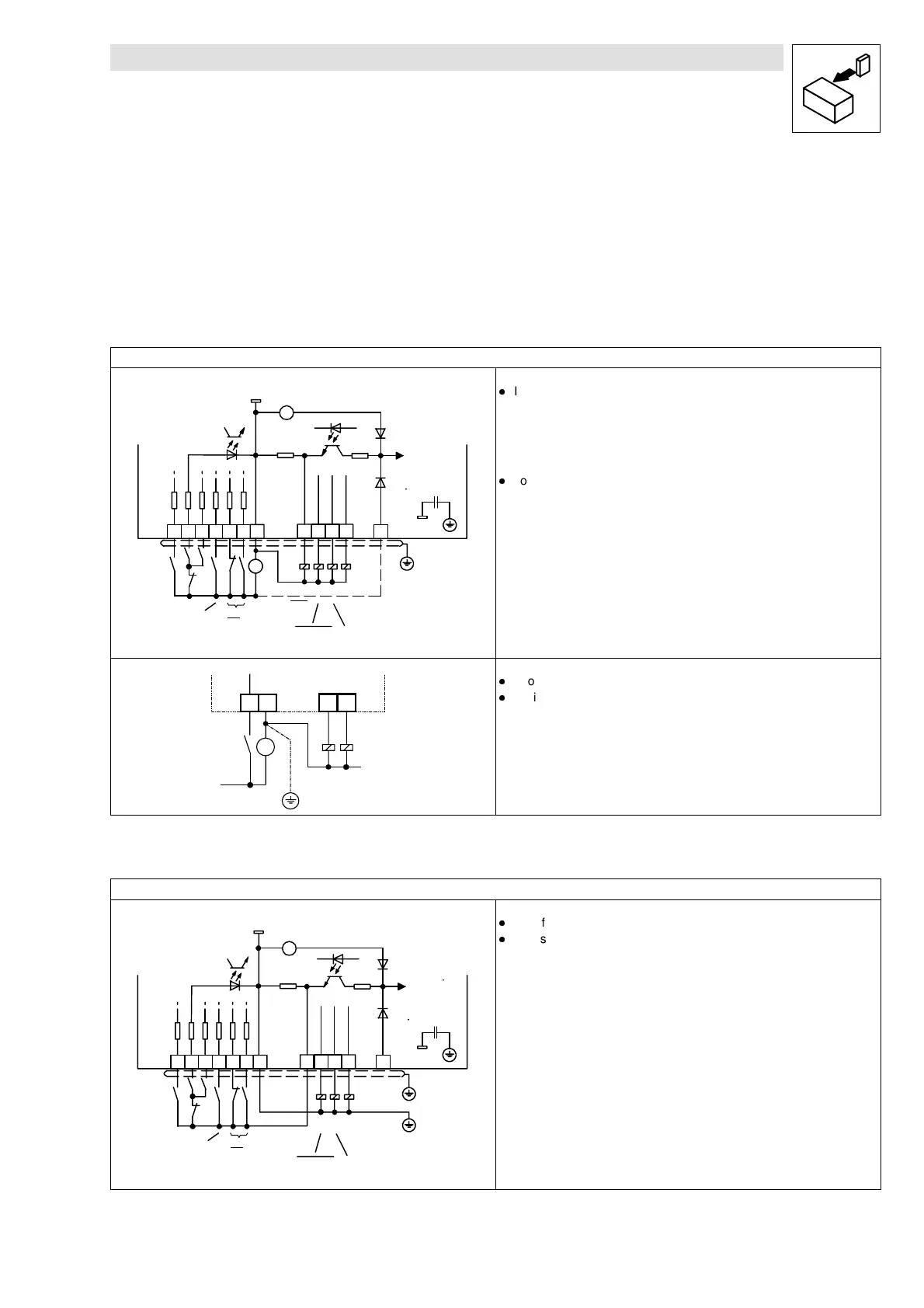

Connection of digital signals
Digital signals are connected via the 2 x 7-pole terminal block X5.
The levels of the digital inputs and outputs are PLC compatible.
Use relays with low-current contacts for switching the signal cables (recommendation: relays with
gold contacts).
Connection for external voltage supply
A3
28
A1 A2 59
_
39
22k
10R
GND 2
+
QSP
JOG
RDY|nact| < nx
Imax
3k
3k
3k
3k
3k
3k
3k
50mA
50mA
50mA
50mA
A4
X5
+
_
=
=
24V
24V
93XX
GND 2
Ctrl.
enable
L
E1 E2 E3 E4 E5
R
Processor
board
TRIP-
Set
/Reset
TRIP
The external voltage source supplies the digital inputs and outputs.
l
If the external voltage supply is also used as an alternative supply for the
control electronics (backup operation in the event of mains failure):
– For this, make the connection illustrated as a broken line.
– The external voltage source must be able to drive a current > 1 A.
This ensures that all actual values, even after mains disconnection, are still
detected and processed.
l
Connection of the external voltage source:
– Supply voltage at X5/59
– External mass at X5/39
STOP!
The voltage difference between GND2 (term. X5/39) and the PE of the controller
must not exceed 50 V.
E5
A1
A2
_
39
+
=
93XX
Limit the voltage difference
l
by overvoltage clamping components or
l
by direct PE connection of terminal 39 (see figure).
Connection for internal voltage supply
A328 E1 E2 E3 E4 E5
A1
A2 5939
22k
10R
R
L
GND 2
QSP
RDY
|nact| < nx
FIXED1
3k
3k
3k
3k
3k
3k
3k
A4
Ctrl.
enable
X5
50mA
50mA
50mA
50mA
+
_
24V
=
JOG
93XX
Imax
GND 2
Processor
board
TRIP-
Set
/Reset
Configuration of the internal voltage supply
l
Set a freely assignable digital output (DIGOUTx) to HIGH level.
l
For instance terminal X5/A1: Assign C0117/1 with FIXED1. 24V are thus
applied across terminal X5/A1.
Note!
Use one of the predefined configurations in C0005 for this application. With
C0005 = XX1X (e. g. 20010 for absoute positioning; limited travelling range)
FIXED1 is automatically assigned to the output X5/A1 (corresponds to 24 V at
terminal X5/A1).
