Lenze EVS9323EP User Manual

Function library
Function blocks

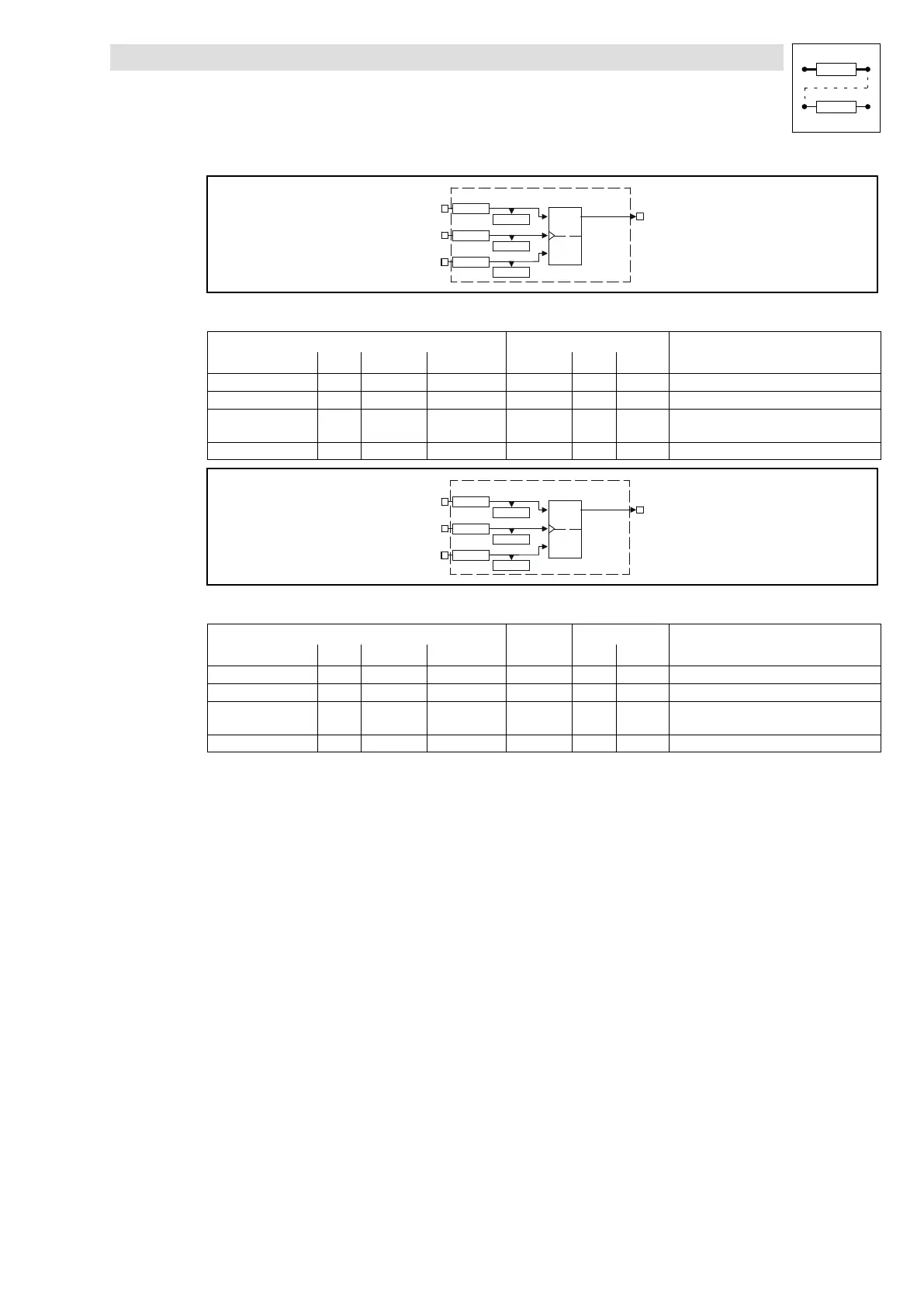

3.5.41 Flipflop element (FLIP)
3−205
l
EDSVS9332P−EXT DE 2.0
FLIP3−D
FLIP3−CLR
FLIP3
FLIP3−OUT
D
CLR
Q
C1061/1
C1061/3
FLIP3−CLK
C1061/2
C1060/1
C1060/2
C1060/3
FB_flip3
Fig. 3−157 Flipflop element (FLIP3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
FLIP3−D d C1061/1 bin C1060/1 2 1000 −
FLIP3−CLK d C1061/2 bin C1060/2 2 1000 Evaluates LOW−HIGH edges only
FLIP3−CLR d C1061/3 bin C1060/3 2 1000 Evaluates the input level only: input has
highest priority
FLIP3−OUT d − − − − − −
FLIP4−D
FLIP4−CLR
FLIP4
FLIP4−OUT
D
CLR
Q
C1061/4
C1061/6
FLIP4−CLK
C1061/5
C1060/4
C1060/5
C1060/6
FB_flip4
Fig. 3−158 Flipflop element (FLIP4)
Signal
Source Source Note
Name Type DIS DIS format CFG List Lenze
FLIP4−D d C1061/4 bin C1060/4 2 1000 −
FLIP4−CLK d C1061/5 bin C1060/5 2 1000 Evaluates LOW−HIGH edges only
FLIP4−CLR d C1061/6 bin C1060/6 2 1000 Evaluates the input level only: input has
highest priority
FLIP4−OUT d − − − − − −
