Function library
Function blocks
3.5.41 Flipflop element (FLIP)
3−206
l
EDSVS9332P−EXT DE 2.0
Function
t
t
FLIPx−D
FLIPx−CLK
t
FLIPx−OUT

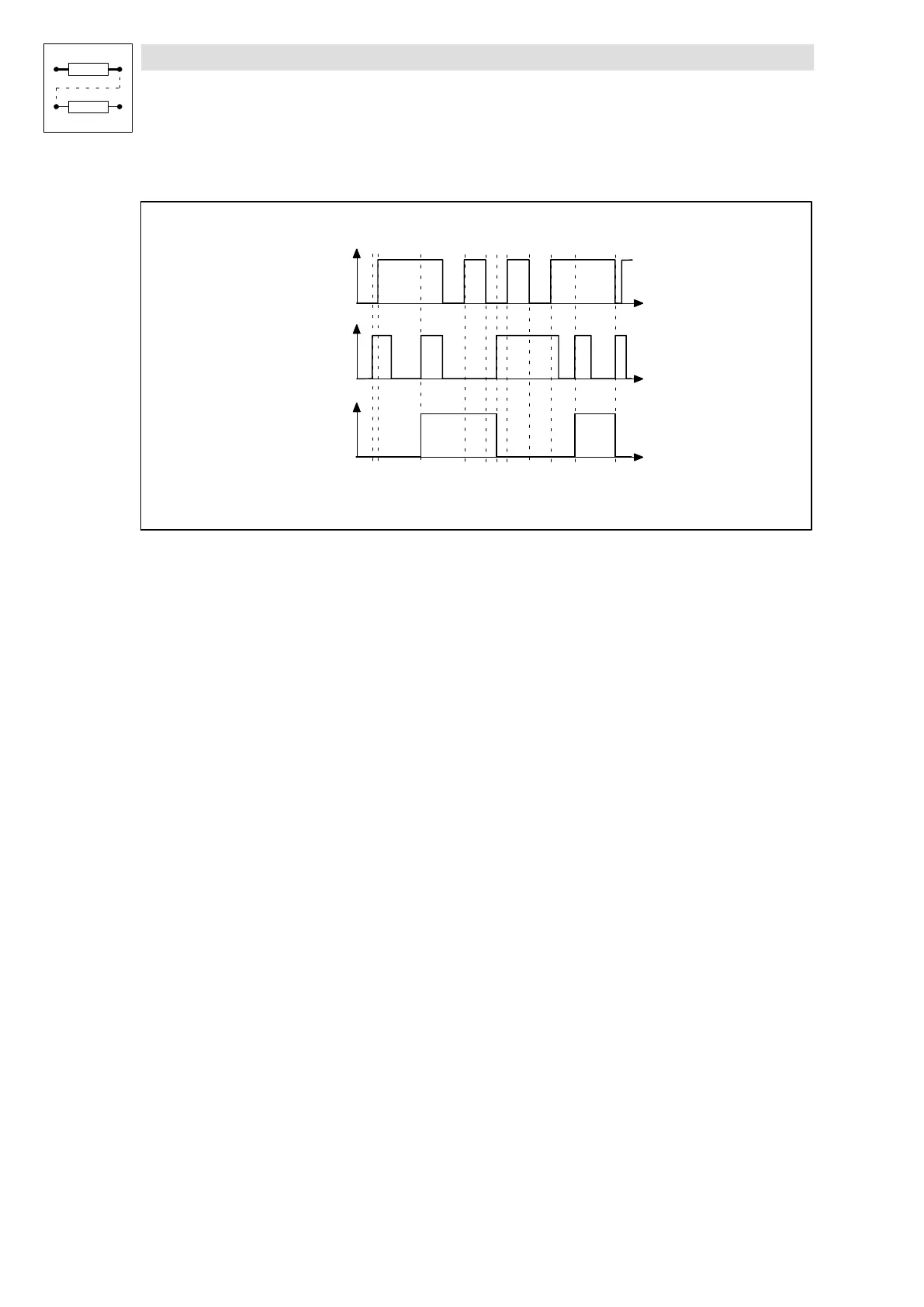

Fig. 3−159 Function sequence of a flipflop
l The input FLIPx−CLR always has priority.
l If a HIGH level is applied at the input FLIPx−CLR, the output FLIPx−OUT is set to and
maintained at a LOW level al long as this input is at a HIGH level.
l With a LOW−HIGH edge at the input FLIPx−CLK, the level at the input FLIPx−D is switched to
the output and saved until
– another LOW−HIGH edge is applied at the input FLIPx−CLK or
– the input FLIPx−CLR is set to a HIGH level.
